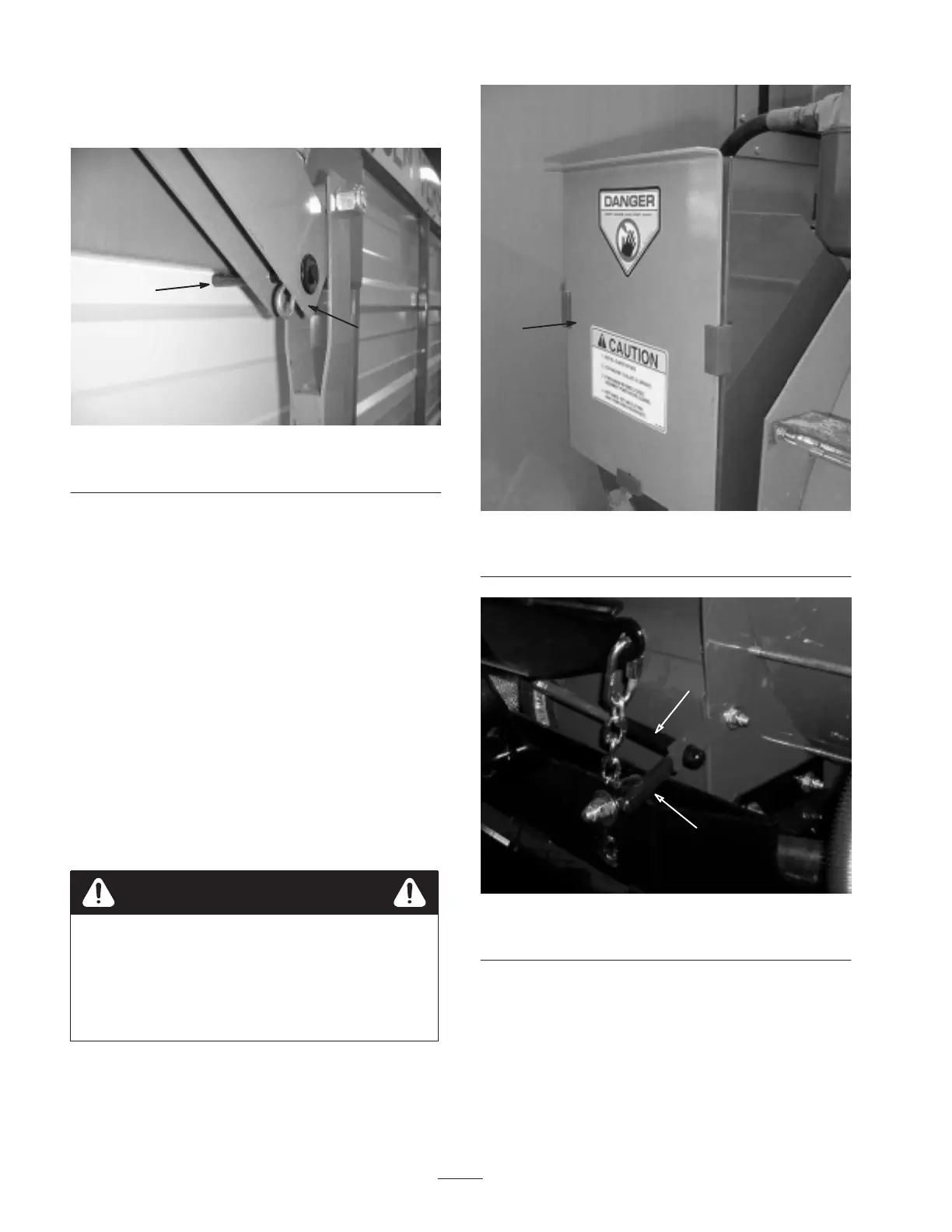

• Insert door pin through holes in door link and under
frame member. Secure door pin in position with cotter
pin.
1
2
Figure 10
1. Door pin 2. Door link
Inspection And Cleanup After
Operation
When operation has been completed, thoroughly clean and
wash the machine. Air dry trailer. After cleaning, it is
recommended that the machine be inspected for possible
damage to all mechanical components. These procedures
will assure that the machine will perform satisfactorily
during next use.
Hand Held Remote Vacuum
Hose Kit
An optional Hand Held remote Vacuum Hose Kit, Model
07080 is available from your Toro Distributor. Hose door
(Fig. 11) and Handle latch (Fig. 12) are only used when kit
is installed.
Do not place your hand or arm in the vacuum
chute; keep the hose door or hose installed at all
times.
• Rotating fan can cut or amputate hand or arm if
inserted into vacuum chute.
Warning
1
Figure 11
1. Vacuum chute hose door
1
2
Figure 12
1. Door handle 2. Handle latch
