Set-Up Instructions
2
Install Front Wheels
Note: If wheels are already installed, refer to
Check Tire Pressure (below).
1. Install shim washers onto axle.
2. Install wheel onto axle with valve stem out.
3. Slide the flat washer onto the axle. Insert cotter
pin through the axle and bend the ends of the pin
apart (Fig. 1). If cotter pin does not fit, remove
shim washer(s) as required.
4. Push the hub cap (Fig. 1) onto the end of the
axle.
1
2
3
1904

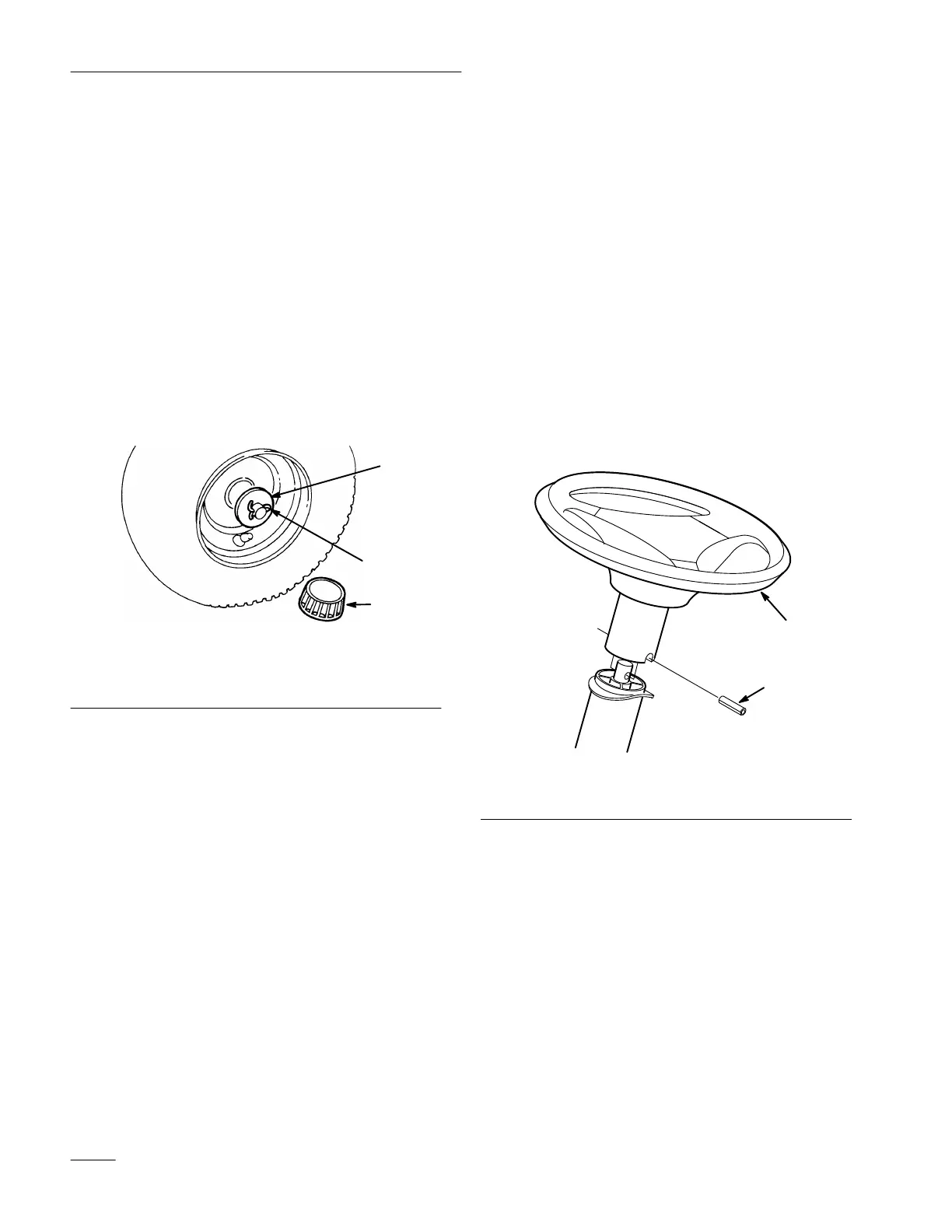

Figure 1
1. Flat washer
2. Cotter pin
3. Hub cap
5. Repeat steps 1–4 on opposite side.
6. Grease the wheel bearings until grease comes out
of bearing seal area.
Check Tire Pressure
Check front and rear tire pressure. Set to 12 psi
(83 kPa).
Install Steering Wheel
1. Move front wheels straight ahead.
2. Slide the steering wheel over shaft. Line up the
hole in the steering wheel with the hole in the
shaft (Fig. 2). From the seat you should be able
to read the brand logo on the steering wheel.
3. To align the holes, insert a punch or long nail
partially through the holes in the steering wheel
and shaft. Then insert the spirol pin into the hole
on the opposite side.
4. Using a hammer, drive the spirol pin in until it is
flush with the outside of the steering wheel
(Fig. 2).
1
2
1905
Figure 2
1. Steering wheel 2. Spirol pin
Install Seat
Note: If the seat is already installed, proceed
to Activate The Battery, page 3.
1. Insert seat switch wire cable through the hole in
the seat base (Fig. 3).
2. Position the seat onto the seat base by inserting
the two shoulder bolts through key hole
openings at the end of both slots (Fig. 3).
