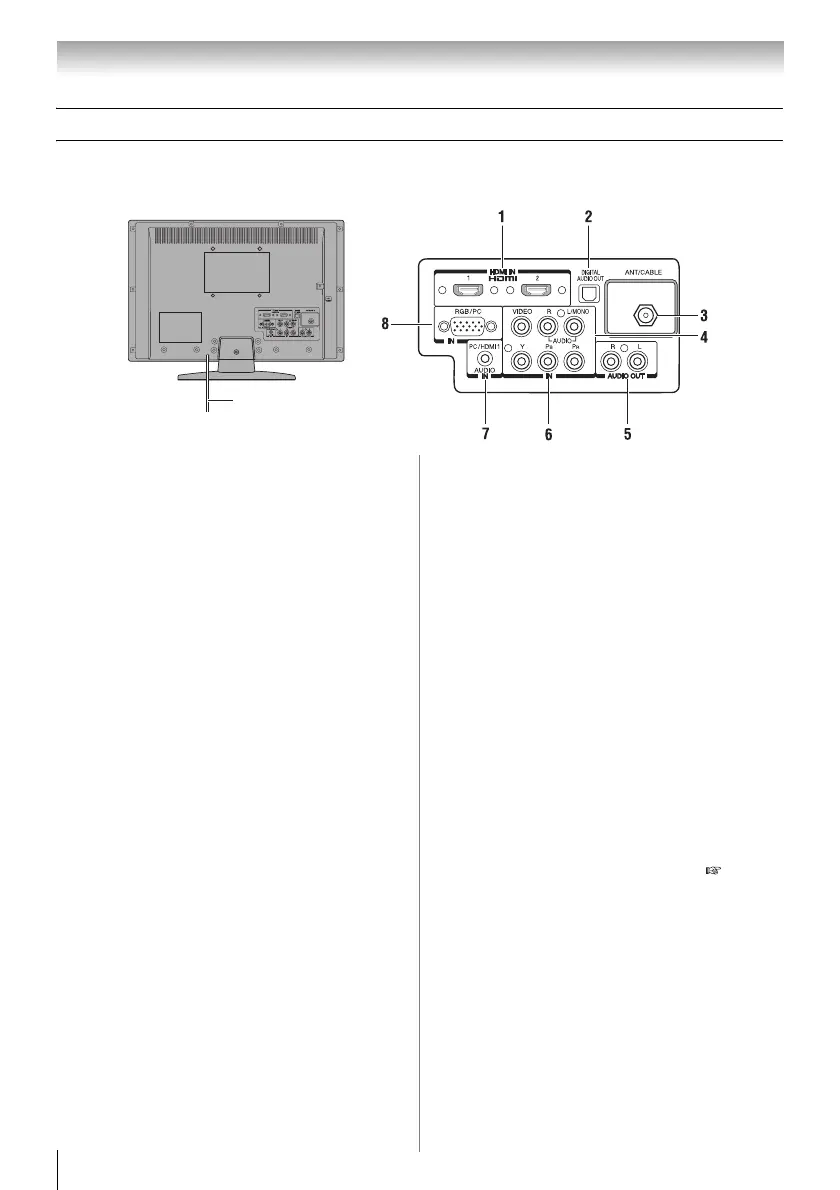

Chapter 1: Introduction
TV back panel connections
For an explanation of cable types and connections,see pages 13 - 19.
1 HDMI
®
IN
High-Definition Multimedia Interface input
receives digital audio and uncompressed digital
video from an HDMI device or uncompressed
digital video from a DVI device.
2 DIGITAL AUDIO OUT
Optical audio output in Dolby Digital or PCM
(pulse-code modulation) format for connecting an
external Dolby Digital decoder, amplifier, A/V
receiver, or home theater system with optical
audio input.
3 ANT/CABLE
Antenna input that supports analog (NTSC) and
digital (ATSC) off-air antenna signals and analog
and digital Cable TV (QAM) signals.
4 VIDEO IN
Standard (composite) video and standard audio
inputs plus for connecting devices with composite
video.
Note:
• Standard (composite) video cable carry only
video information; separate audio cables
are required for a complete connection.
• The VIDEO IN and ColorStream® HD inputs
share the same audio input terminals.
5 AUDIO OUT
Analog stereo audio output for connecting an
external amplifier, A/V receiver, or home theater
system with analog stereo audio input.
6 ColorStream
®
HD
ColorStream
®
high definition component video
input (with standard stereo audio inputs) for
connecting devices with component video output,
such as a Toshiba DVD player with
ColorStream
®
.
Note:
• Component video cables carry only video
information; separate audio cables are
required for a complete connection.
• The VIDEO IN and ColorStream® HD inputs
share the same audio input terminals.
7 PC/HDMI 1 AUDIO IN
PC audio input terminals are shared with HDMI-1
analog audio input terminals, and their use can be
configured in the Audio Setup menu ( page
44).
8 RGB/PC IN
For use when connecting a personal computer.
TV back
Power Cord

Toshiba 19SL410U Specifications

Weight and Dimensions

dimensions with stand	18.18 in. × 13.58 in. × 7.10 in.
dimensions without stand	18.18 in. × 11.88 in. × 1.85 in.
shipping dimensions	20.87 in. × 15.94 in. × 4.80 in.
weight with stand	6.78 lbs.
weight without stand	5.93 lbs.
shipping weight	8.60 lbs.
