Rear terminal cover

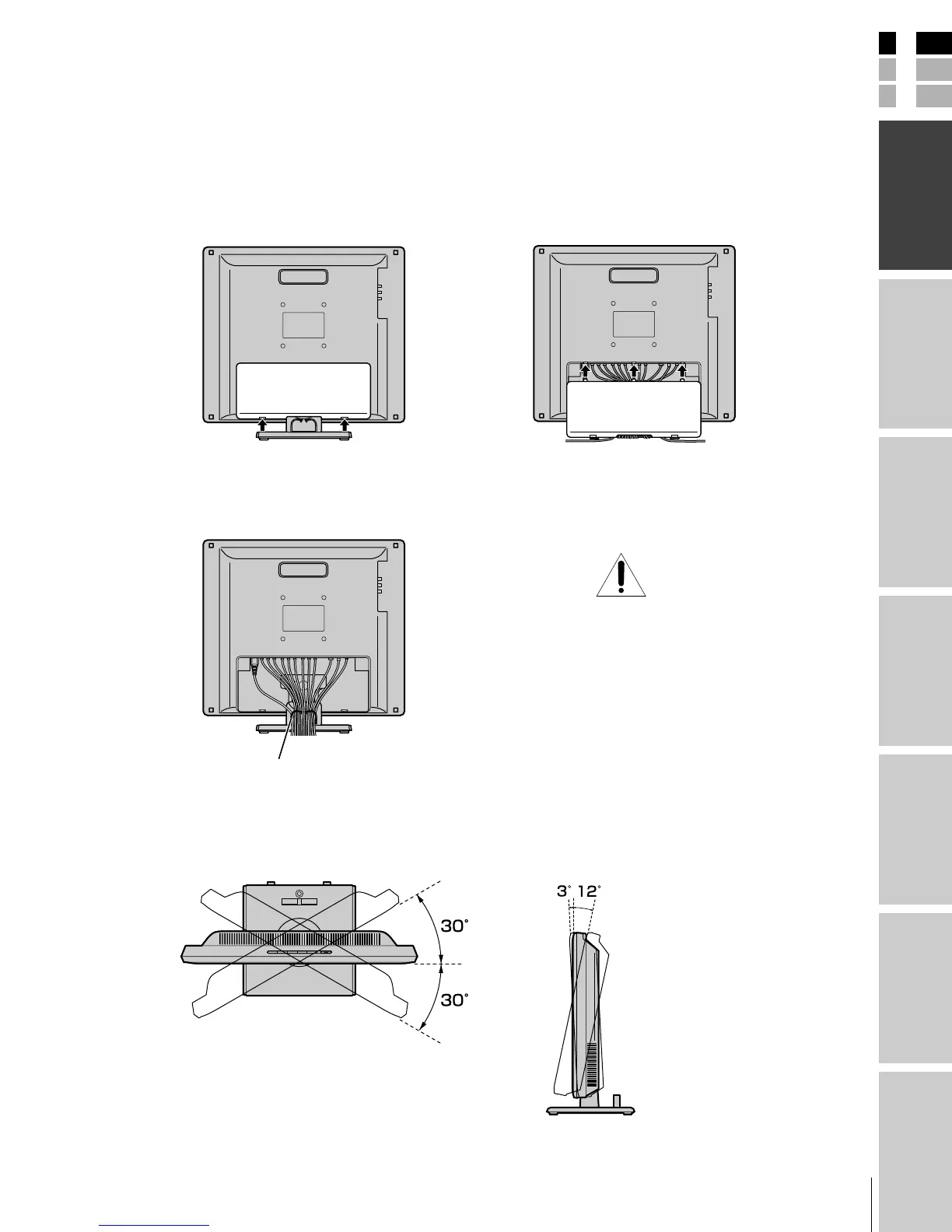

The connection panel is hidden behind the terminal cover.
1. Remove the cover. Release the two hooks on the bottom of
the cover.
2. Install cables as necessary.
3. Reinstall the cover. Align the holes on the TV back with the
three tabs on the rear terminal cover as shown.
4. Close the cover.
Cable clamper
The cable clamper can be used to bundle the connection cables
(see page 10).
Cable clamper
Adjusting the TV viewing angle
You can adjust the angle of the TV screen.
Swivel angle Tilt angle
WARNING: RISK OF
SERIOUS PERSONAL
INJURY OR EQUIPMENT
DAMAGE!
Never grasp the cable clamper when
moving or lifting the TV. The cable clamper
could break, causing the TV to fall.
