DADM/DSS Console
DADM
76 Strata CTX DKT3000/2000-Series Telephone 05/02
DADM
Digital add-on Modules (DADM) can be connected to both the 3000- and 2000-series
telephones to provide additional buttons.The 3000-series telephone requires a 3000-
series DADM; the 2000-series telephone requires a 2000-series DADM.
The DADM3020 model, is shown below, right. The DADM2020 (not shown) looks
similar and has the same functions.
Buttons and LEDs
The buttons can be programmed for Direct
Station Selection (DSS), outside line access,
and Station or System Speed Dial. Directory
Numbers or other functions cannot be
assigned to DADMs.
Each DSS button and
/LQH button has an
LED that provides a status of the outside line
or station assigned to it. The DSS button acts
like a speed dial button to a specific
extension.
• A station or line shows steady red when in
use by others; green when in use by the
DADM.
• A DSS LED will flash red while making a
call and turn intermittently green once
connected.
• An outside Line LED is green when the
outside line is in use by the DADM
console user. It is red if it is in use by
another telephone user.

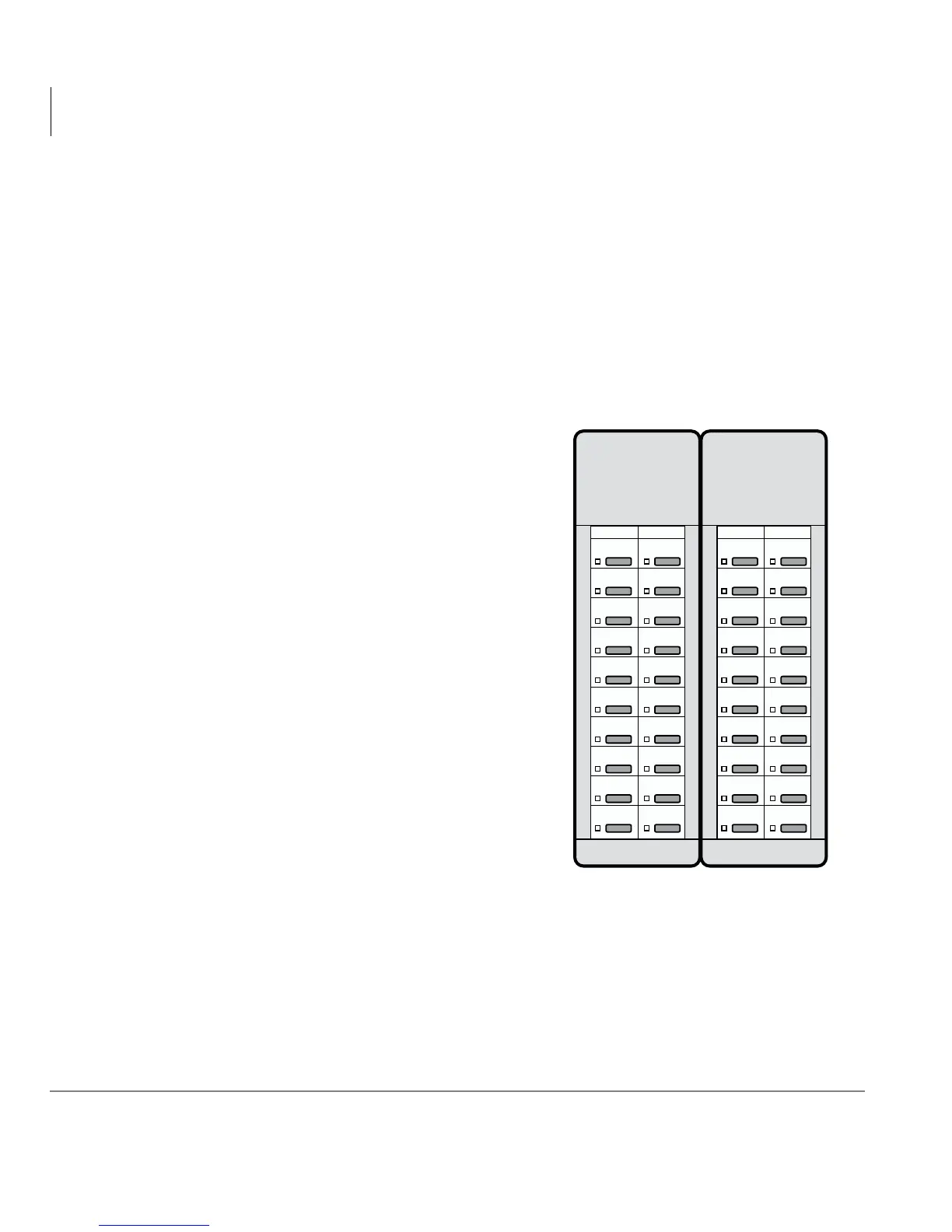

Note Button numbers in the figure to the
right are examples only.
First DADM Second DADM
2038
209
208
207
206
205
204
203
202
201
200
219
218
217
216
215
214
213
212
211
210
229
228
227
226
225
224
223
222
221
220
239
238
237
236
235
234
233
232
231
230
