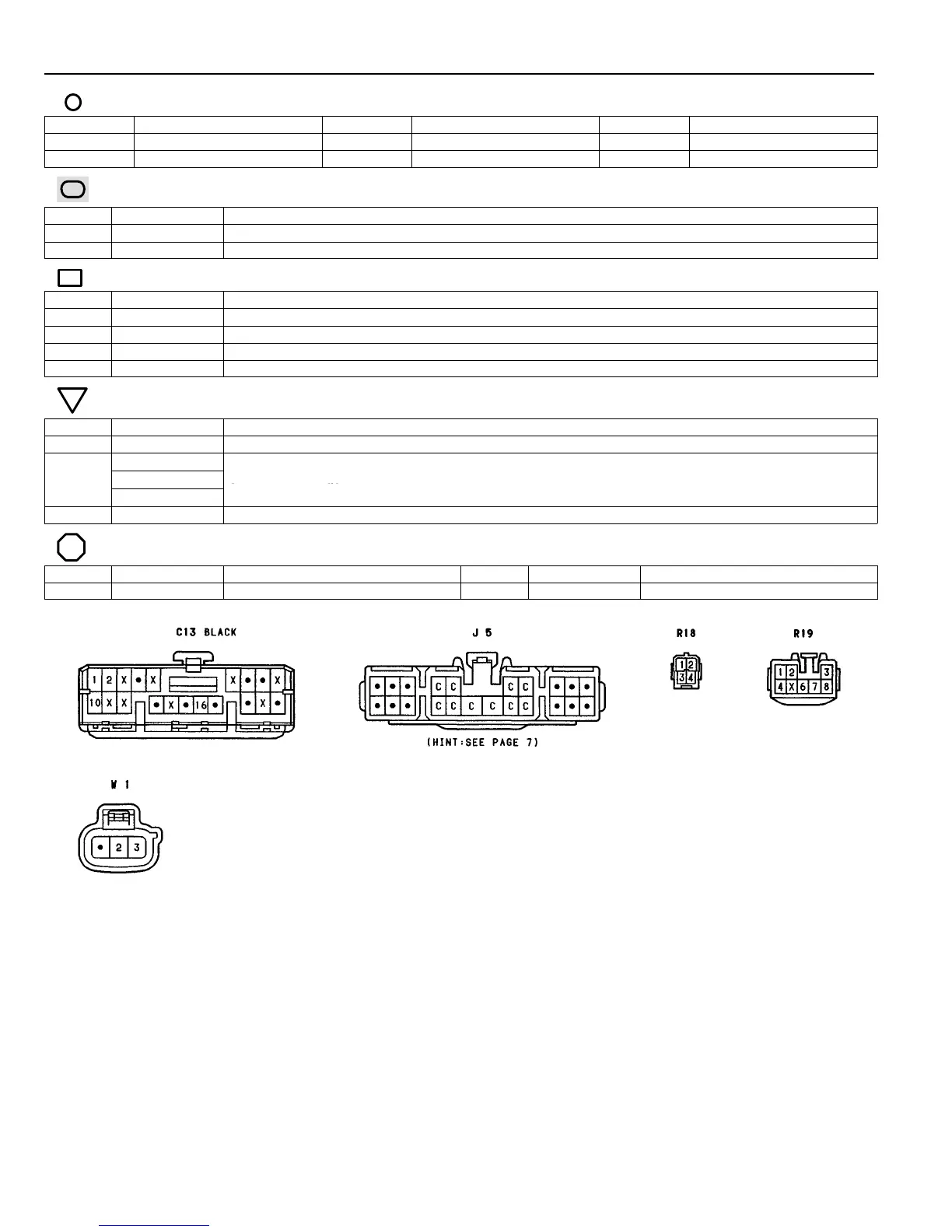

REAR WIPER AND WASHER

: PARTS LOCATION

CODE SEE PAGE CODE SEE PAGE CODE SEE PAGE

C13 32 R18 36 (W/G) W 1 29 (1MZ–FE), 30 (5S–FE)

J 5 36 (W/G) R19 36 (W/G)

: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR

CODE SEE PAGE JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION)

1H 20 FLOOR NO. 1 WIRE J/B NO. 1 (INSTRUMENT PANEL LEFT)

1M 20 COWL WIRE AND J/B NO. 1 (INSTRUMENT PANEL LEFT)

: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS

CODE SEE PAGE JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)

IJ1 42 FLOOR NO. 1 WIRE AND COWL WIRE

IR1 44 ENGINE ROOM MAIN WIRE AND COWL WIRE

Bc1 50 (W/G) BACK DOOR NO. 1 WIRE AND FLOOR NO. 1 WIRE

Bd1 50 (W/G) BACK DOOR NO. 1 WIRE AND BACK DOOR NO. 2 WIRE

: GROUND POINTS

CODE SEE PAGE GROUND POINTS LOCATION

IE 42 LEFT KICK PANEL

46 (S/D)

48 (C/P)

UNDER THE LEFT QUARTER PILLAR

50 (W/G)

UNDER

THE

LEFT

QUARTER

PILLAR

BR 50 (W/G) BACK DOOR CENTER

: SPLICE POINTS

CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS

I 7 44 COWL WIRE B36 50 (W/G) FLOOR NO. 1 WIRE
