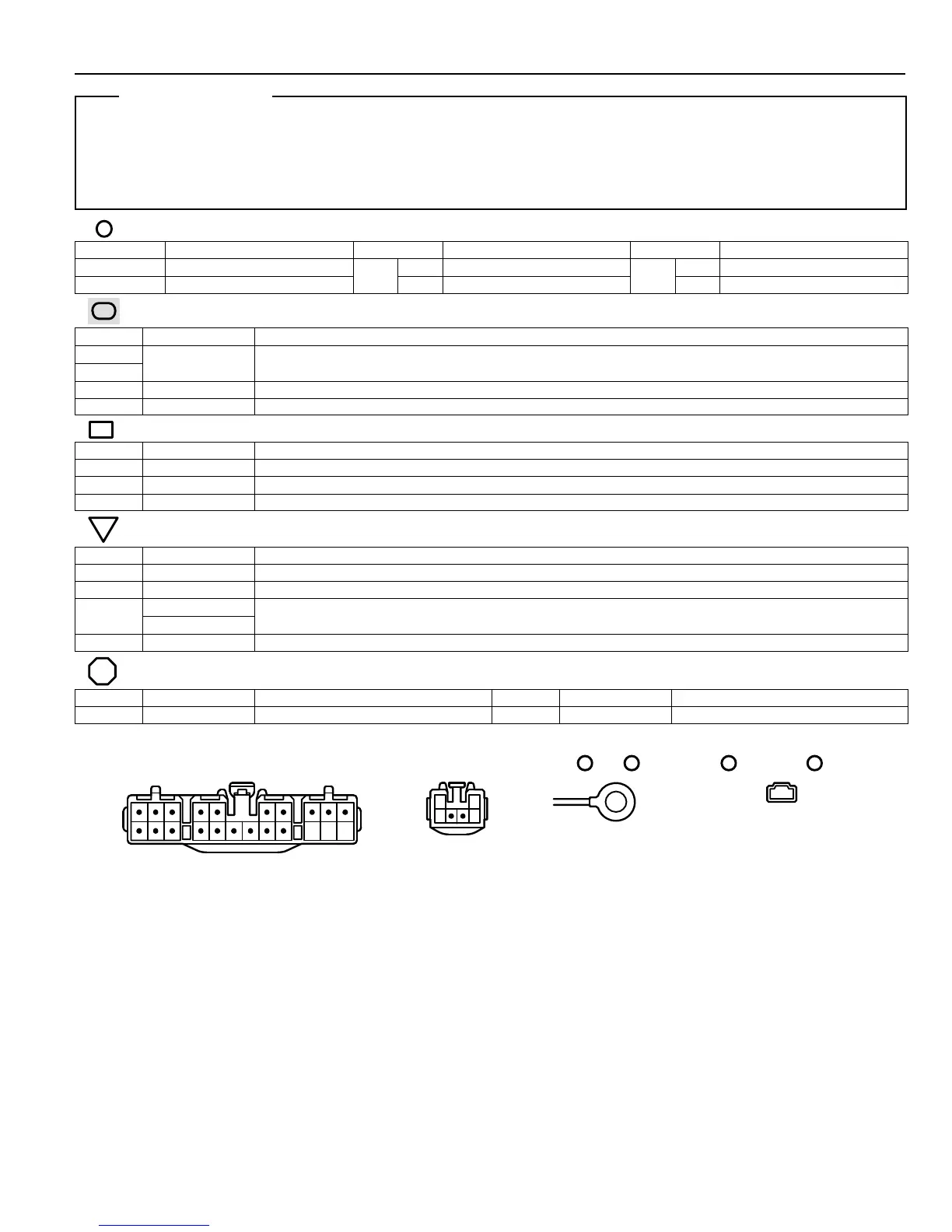

DEFOGGER RELAY
5–3 : CLOSED WITH IGNITION SW ON, DEFOGGER SW ON
R 5 REAR WINDOW DEFOGGER SW
3–GROUND : APPROX. 12 VOLTS WITH IGNITION SW AT ON POSITION
2–GROUND : ALWAYS CONTINUITY
3–6 : CONTINUITY WITH DEFOGGER SW ON
: PARTS LOCATION
CODE SEE PAGE CODE SEE PAGE CODE SEE PAGE
J 2 33
A 34 (S/D), 35 (C/P), 36 (W/G)
B 34 (S/D), 35 (C/P), 36 (W/G)
R 5 33
R16
C 34 (S/D), 35 (C/P), 36 (W/G)
R17
D 34 (S/D), 35 (C/P), 36 (W/G)
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CODE SEE PAGE JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION)
1C
COWL WIRE AND J/B NO 1 (INSTRUMENT PANEL LEFT)
1D
20 COWL WIRE AND J/B NO. 1 (INSTRUMENT PANEL LEFT)
1H 20 FLOOR NO. 1 WIRE J/B NO. 1 (INSTRUMENT PANEL LEFT)
1M 20 COWL WIRE AND J/B NO. 1 (INSTRUMENT PANEL LEFT)
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CODE SEE PAGE JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
Bc1 50 (W/G) BACK DOOR NO. 1 WIRE AND FLOOR NO. 1 WIRE
Bd3 50 (W/G) BACK DOOR NO. 1 WIRE AND BACK DOOR NO. 2 WIRE
Be1 50 (W/G) REAR WINDOW NO. 1 WIRE AND BACK DOOR NO. 2 WIRE
: GROUND POINTS
CODE SEE PAGE GROUND POINTS LOCATION
IE 42 LEFT KICK PANEL
IG 42 INSTRUMENT PANEL BRACE LH
46 (S/D)
UNDER THE RIGHT QUARTER PILLAR
BN
48 (C/P)
UNDER THE RIGHT QUARTER PILLAR
BS 50 (W/G) BACK DOOR RIGHT
: SPLICE POINTS
CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS
I 7 44 COWL WIRE
A
FFF
X2
36
J2 R5 R16 ,R17 BDARK GRAY BLACKBLUE
(
HINT : SEE PAGE 7
)
1
1
DR16 , R17CBLACK
