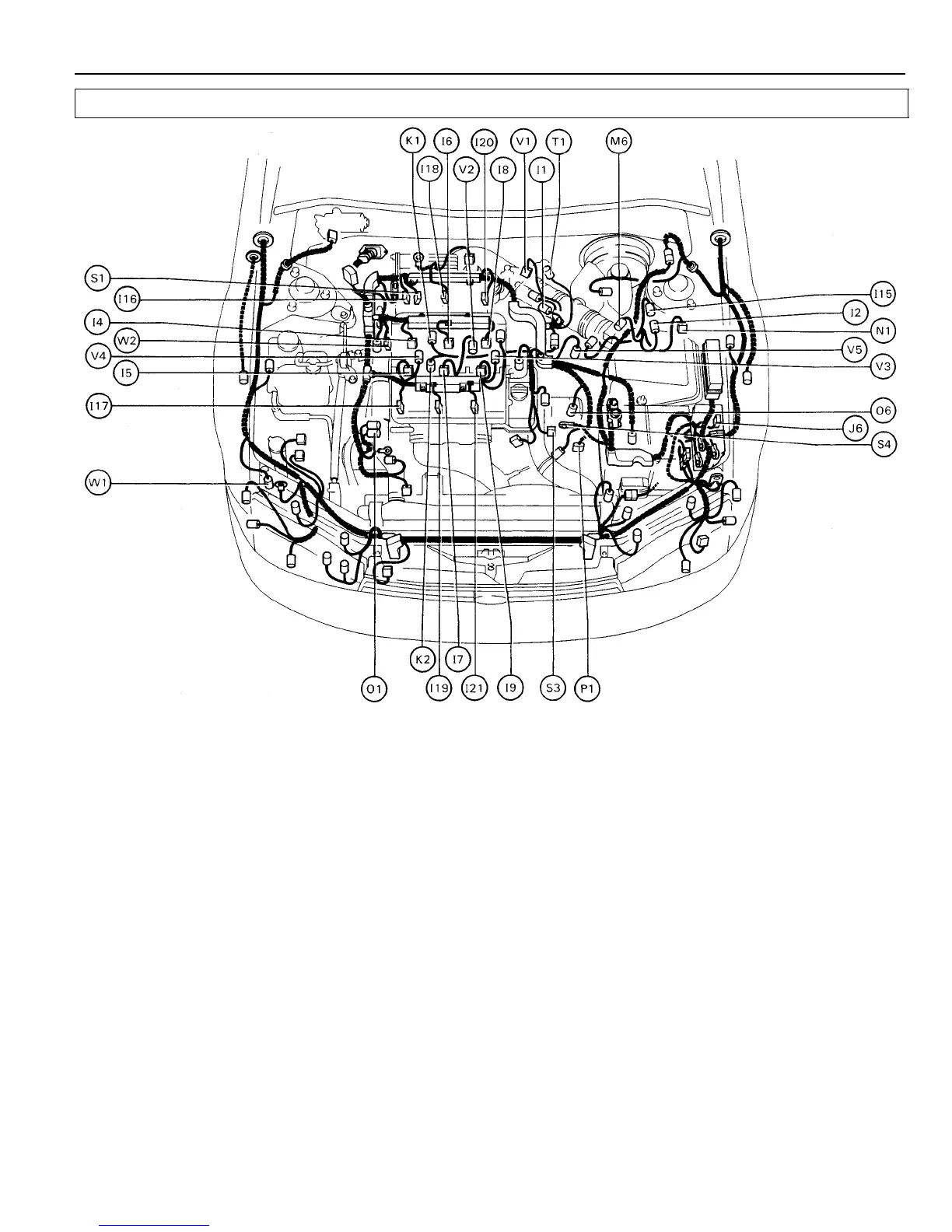

Position of Parts in Engine Compartment

[1MZ–FE]

I 1 Idle Air Control Valve (ISC Valve) N 1 Noise Filter (for Ignition System)

I 2 Igniter

I 4 Injector No. 1 O 1 Oil Pressure SW

I 5 Injector No. 2 O 6 O/D Direct Clutch Speed Sensor

I 6 Injector No. 3

I 7 Injector No. 4 P 1 Park/Neutral Position SW (Neutral Start SW) (A/T)

I 8 Injector No. 5

I 9 Injector No. 6 S 1 Solenoid Valve (for Hydrauric Motor)

I 15 Igniter S 3 Starter

I 16 Ignition Coil No. 1 S 4 Starter

I 17 Ignition Coil No. 2

I 18 Ignition Coil No. 3 T 1 Throttle Position Sensor

I 19 Ignition Coil No. 4

I 20 Ignition Coil No. 5 V 1 VSV (for A/C Idle–Up)

I 21 Ignition Coil No. 6 V 2 VSV (for EGR System)

V 3 VSV (for Fuel Pressure Up)

J 6 Junction Connector V 4 VSV (for Intake Air Control)

V 5 Vehicle Speed Sensor (Speed Sensor)

K 1 Knock Sensor 1

K 2 Knock Sensor 2 W 1 Washer Motor

W 2 Water Temp. Sender

M 6 Mass Air Flow (Air Flow Meter)
