77
G 1(B) GENERATOR (ALTERNATOR)
(B) 3–GROUND : 13.9–15.1 VOLTS WITH ENGINE RUNNING AT 2000 RPM AND 25°C (77°F)
13.5–14.3 VOLTS WITH ENGINE RUNNING AT 2000 RPM AND 115°C (239°F)
(B) 1–GROUND : 0–4 VOLTS WITH IGNITION SW AT ON POSITION AND ENGINE NOT RUNNING

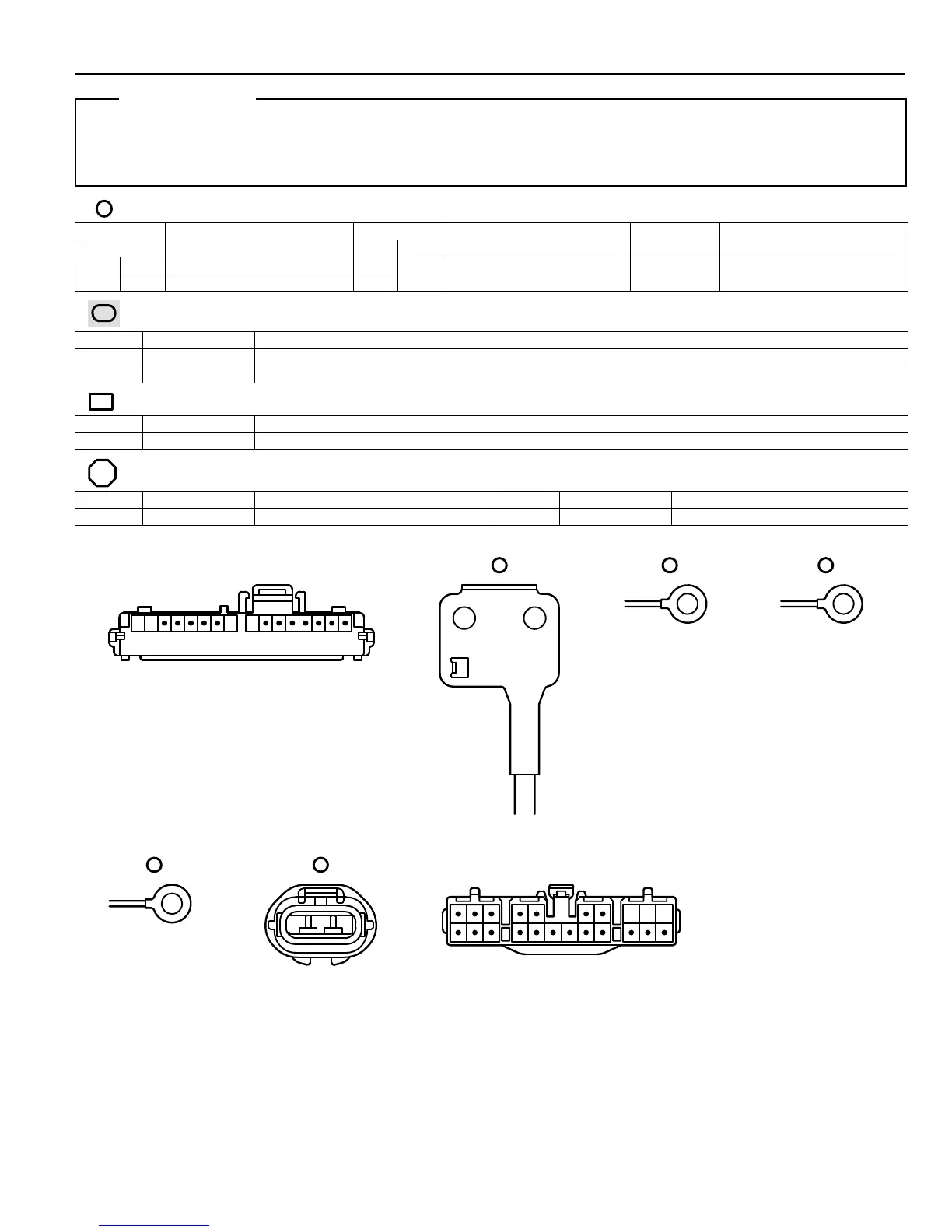

: PARTS LOCATION
CODE SEE PAGE CODE SEE PAGE CODE SEE PAGE
C 9 32 F16 C 28 (1MZ–FE), 30 (5S–FE) J 1 33
A 28 (1MZ–FE), 30 (5S–FE) G 1 A 28 (1MZ–FE), 30 (5S–FE)
F10
B 28 (1MZ–FE), 30 (5S–FE) G 2 B 28 (1MZ–FE), 30 (5S–FE)
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CODE SEE PAGE JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION)
1D 20 COWL WIRE AND J/B NO. 1 (INSTRUMENT PANEL LEFT)
2C 22 ENGINE WIRE AND J/B NO. 2 (ENGINE COMPARTMENT LEFT)
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CODE SEE PAGE JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
IP3 44 ENGINE WIRE AND COWL WIRE
: SPLICE POINTS
CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS
I18 44 ENGINE WIRE
98XX
EEE
C9
J1 DARK GRAY
(
HINT : SEE PAGE 7
)
1
ABG1 G2 BLACK
123
11
AF10 B
(
5S–FE
)
F10 CF16
(
1M–FE
)
SERVICE HINTS
To Next Page
