2001 MY CAMRY (OM33528U)
Fuses

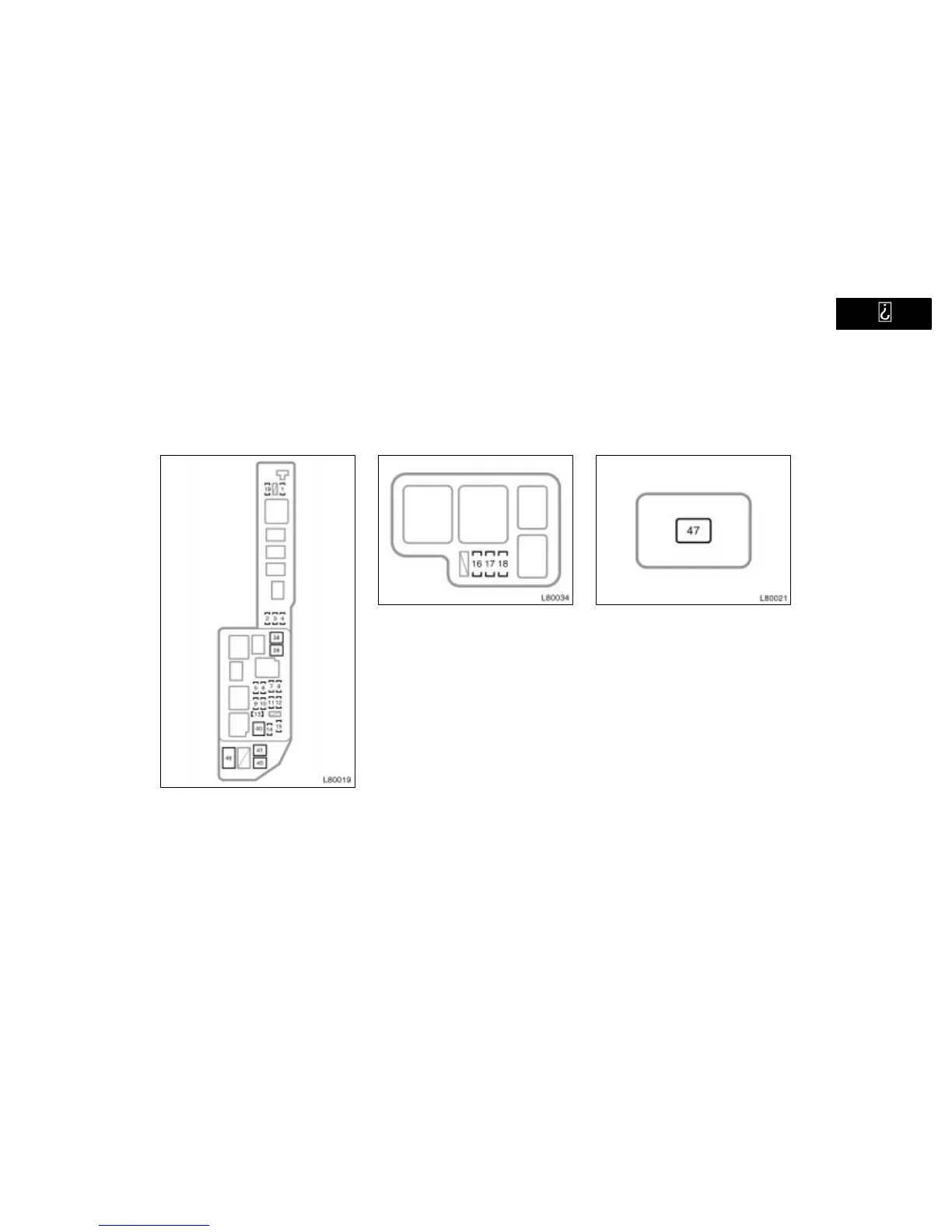

Engine compartment
Engine compartment
Fuses (type A)
1. A/C 10 A: Air conditioning system
2. SPARE 10 A: Spare fuse
3. SPARE 15 A: Spare fuse
4. SPARE 30 A: Spare fuse
5. ALT–S 5 A: Charging system
6. HEAD RH(UPR) (with daytime run-
ning light system) or HEAD (RH)
(without daytime running light sys-
tem) 20 A: Right–hand headlight
7. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
Engine compartment
8. HORN 10 A: Horn, theft deterrent sys-
tem
9. HAZARD 15 A: Emergency flasher
10. AM2 30 A: Gauge and meter, SRS
airbag system, seat belt pretensioners,
multiport fuel injection system/sequen-
tial multiport fuel injection system,
“IGN” and “STARTER” fuses
11. TEL 5 A: No circuit
12. HEAD LH(UPR) (with daytime run-
ning light system) or HEAD (LH)
(without daytime running light sys-
tem) 20 A: Left–hand headlight
13. RADIO NO.1 20 A: Audio system
To Next Page
