Fuses

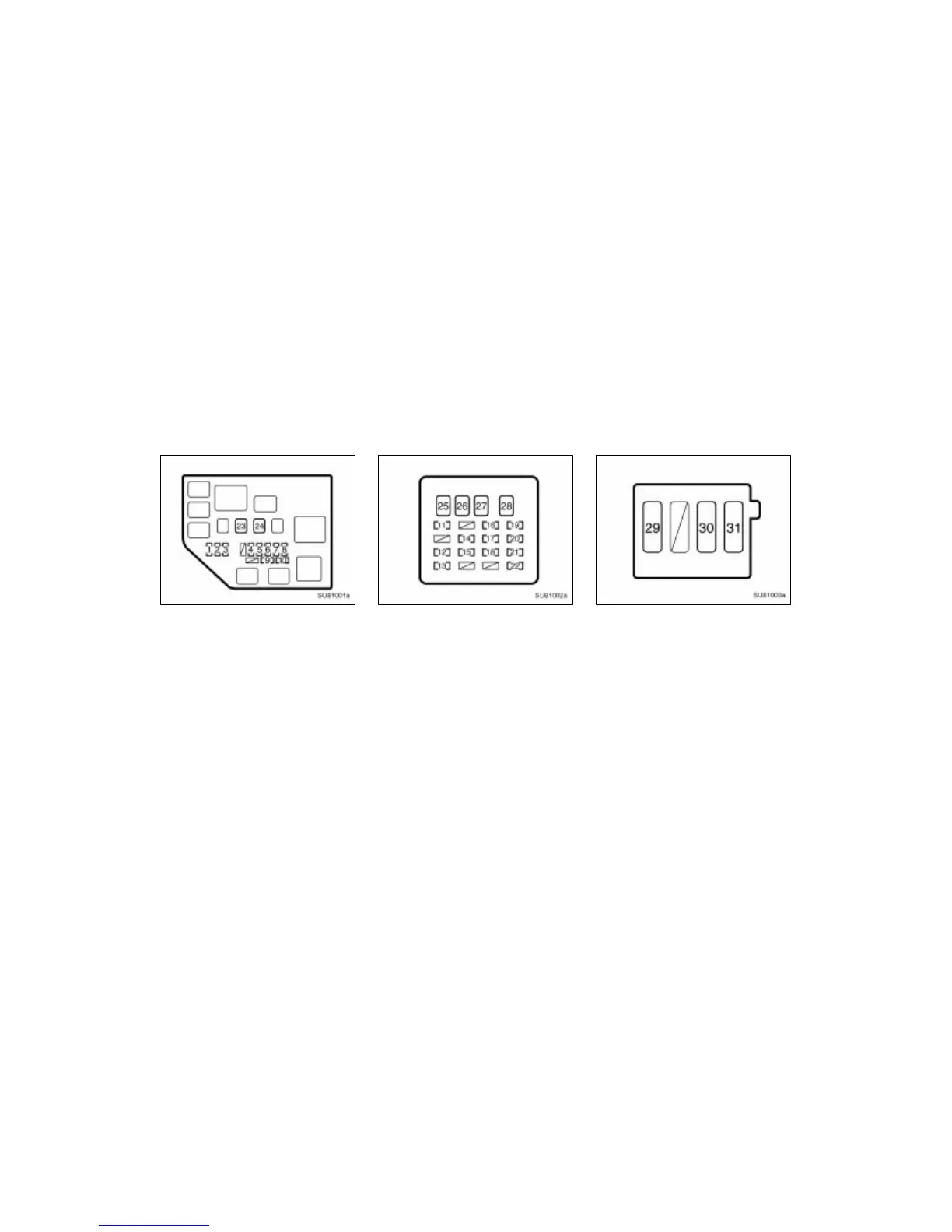

SU81001a
Engine compartment
Fuses (type A)
1. P/POINT 15 A: No circuit
2. H–LP RH/H–LP LO RH 10 A: Right–
hand headlight
3. H–LP LH/H–LP LO LH 10 A: Left–
hand headlight
4. ST 30 A: Starter system
5. AM2 15 A: Starter system, SRS airbag
system, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, discharge warning system
6. HORN 15 A: Horn
SU81002a
Instrument panel
7. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
8. DOME 15 A: Clock, radio, interior light,
gauges of meters, wireless remote con-
trol system
9. SPARE 15 A: Spare
10. SPARE 30 A: Spare
11. GAUGE 10 A: Back–up lights, charging
system, air conditioning system, power
window system, gauges of meters
12. ACC 15 A: Clock, radio, cigarette light-
er
13. A.C 7.5 A: Air conditioning system
SU81003a
Engine compartment
14. WIPER 20 A: Windshield wipers and
washer
15. ECU–IG 7.5 A: Anti–lock brake system,
electric cooling fan
16. D/L 25 A: Power door lock system
17. ECU–B 7.5 A: SRS airbag system
18. OBD 7.5 A: On–board diagnosis sys-
tem
19. TAIL 10 A: Tail lights, parking lights,
license plate lights, radio, illuminations
20. FOG 15 A: Front fog lights
