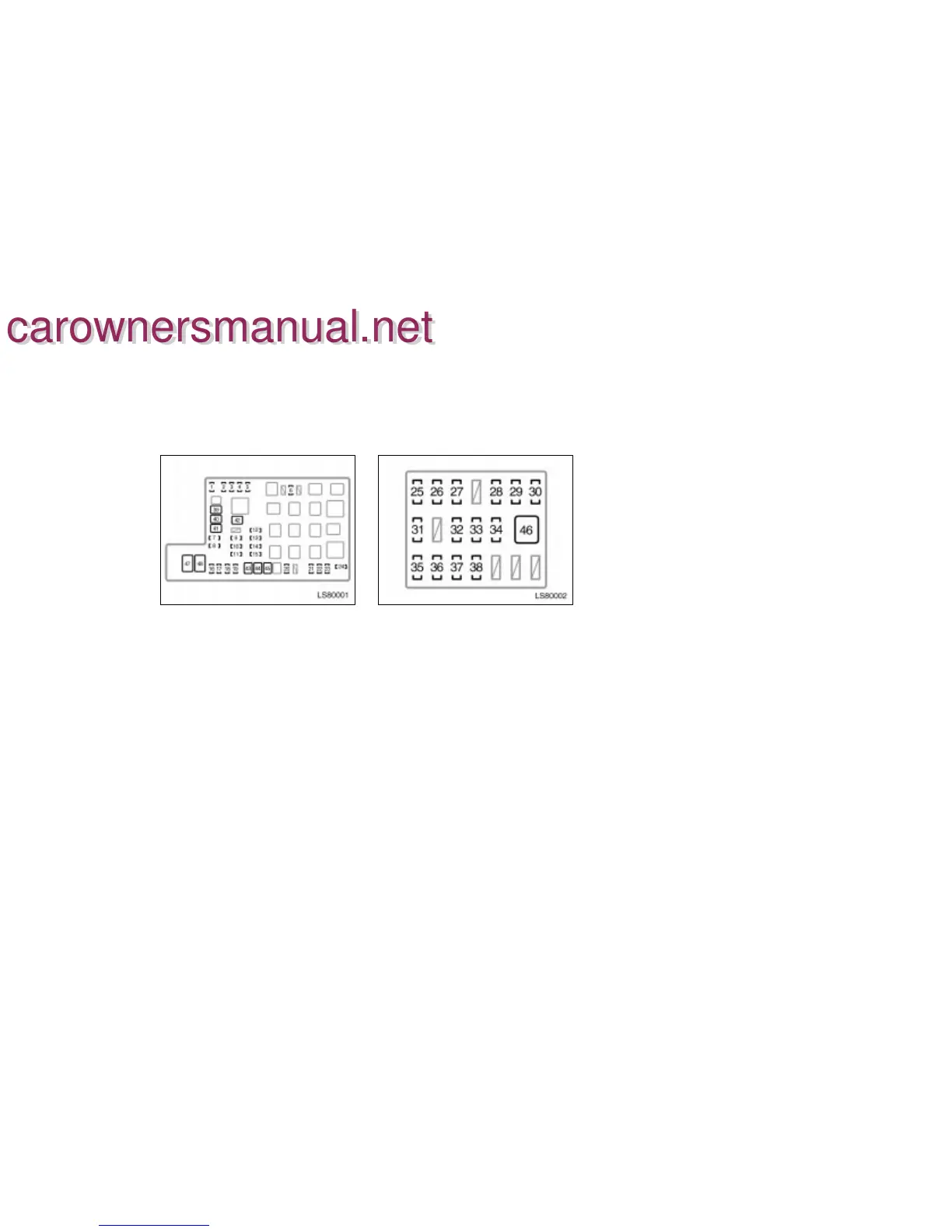

Engine compartment
Fuses (type A)
1. A/C 10 A: Air conditioning system
2. FR FOG 15 A: Front fog lights
3. TOWING TAIL 30 A: Trailer lights (tail
lights)
4. STOP 10 A: Stop lights, high mounted
stop light, vehicle stability control sys-
tem, anti- lock brake system, shift lock
system, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, towing converter
5. OBD 7.5 A: On- board diagnosis sys-
tem
LS80002
Instrument panel
6. EFI NO.2 10A: Multiport fuel injection
system/sequential multiport fuel injec-
tion system
7. TOWING BRK 30 A: Trailer brake con-
troller
8. BATT CHG 30 A: Trailer sub battery
9. TOWING 30 A: Towing converter
10. TRN- HAZ 15 A: Turn signal lights,
emergency flashers, meter and gauge
11. RADIO NO.2 30 A: Audio system
12. HEAD (LO RH) 10 A: Right- hand
headlight (low beam)
13. HEAD (LO LH) 10 A: Left- hand head-
light (low beam), front fog lights
14. HEAD (HI RH) 10 A: Right- hand head-
light (high beam)
15. HEAD (HI LH) 10 A: Left- hand head-
light (high beam), meter and gauge
16. ETCS 10 A: Multiport fuel injection
system/sequential multiport fuel injec-
tion system, electronic throttle control
system
17. ALT- S 7.5 A: Charging system
18. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
19. HORN 10 A: Horn
20. A/F HEATER 15 A: Multiport fuel injec-
tion system/sequential multiport fuel in-
jection system
21. ECU- B 7.5 A: Wireless remote control
system, air conditioning system, multi-
plex communication system, engine im-
mobilizer system, meter and gauge,
clock, front passenger occupant classi-
fication system
22. DOME 7.5 A: Interior light, personal
lights
23. RADIO NO.1 10 A: Audio system
