MEMBER WEIGHTS
Unit: kg

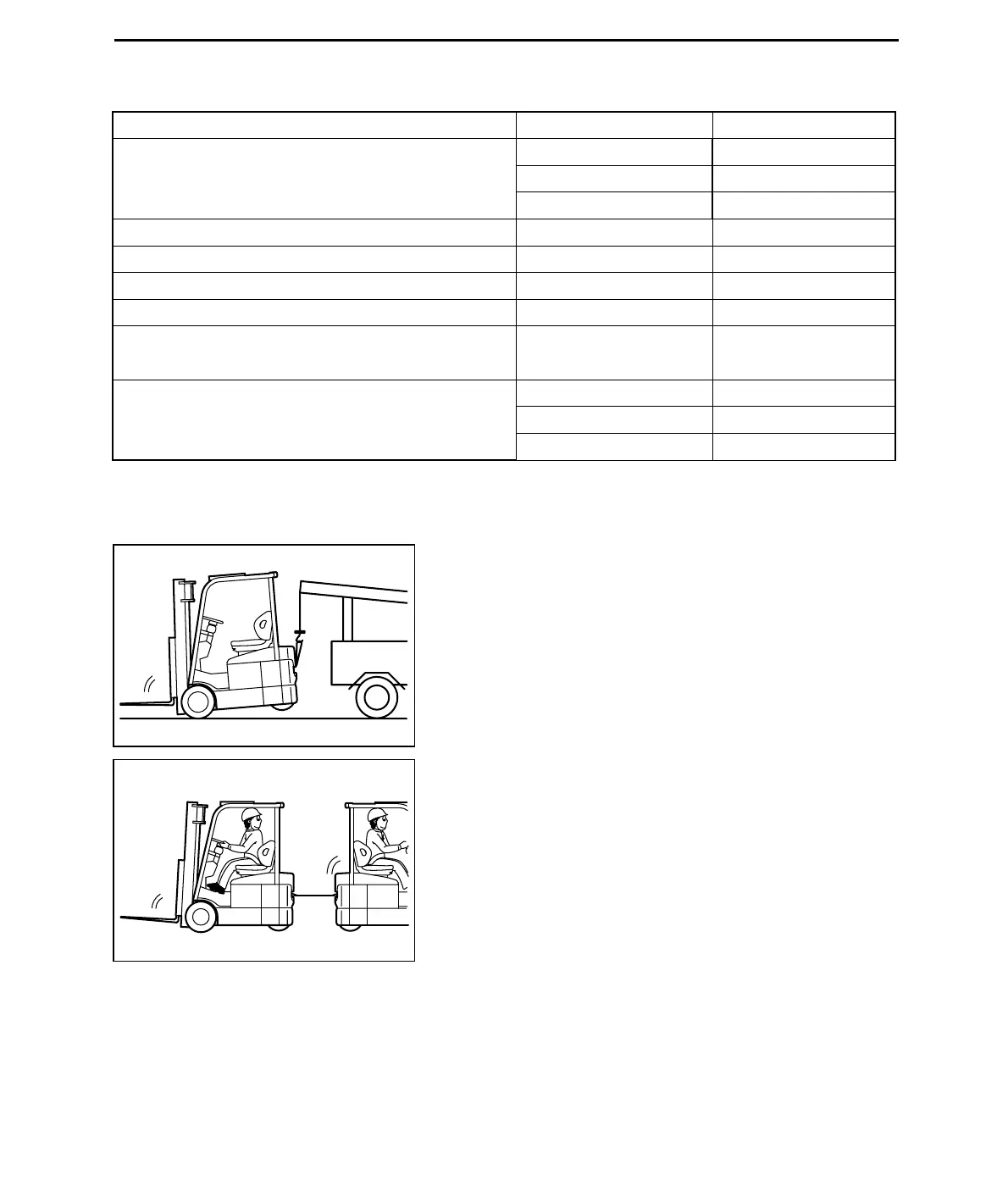

TOWING THE VEHICLE
Note the cautions below when towing the vehicle.
1. Lift the rear wheels for towing
2. The traveling speed when towing must not exceed the
maximum traveling speed of the forklift.
3. Before starting towing, always set the key switch to OFF
and the direction switch to the neutral position.
4. Before towing, either remove the fork or take action to
prevent the fork from coming into contact with the
ground due to bouncing.
Member Vehicle Model Code Weight
BATTERY
10 min. 381 - max. 420
13 min. 524 - max. 590
15 min. 600 - max. 690
Drive motor All Models Approx.34
Pump motor (Hydraulic pump + electric motor) All Models Approx.40
Rear axle L/Drive motor and wheel All Models Approx.53
Counterweight All models 900
Mast W/ lift bracket (W/ lift cylinder, L/ fork,
Lifting height 4000 mm, V mast
All
Models
Approx
450
Vehicle weight (w/battery)
10 Approx.2550
13 Approx.2820
15 Approx.2930
