If your child restraint system requires
the use of a top strap, latch the hook
onto the anchor bracket and tighten the
top strap.

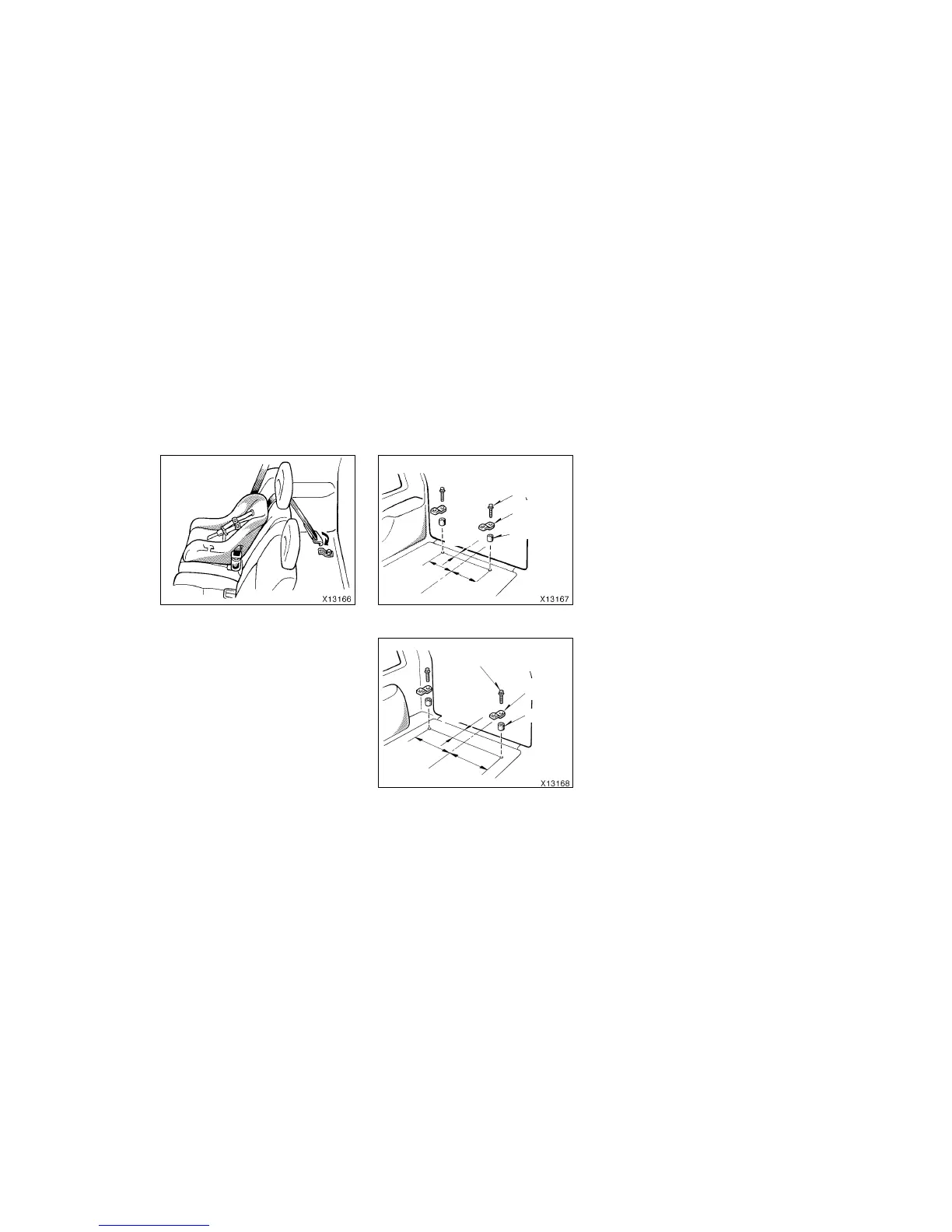

See the following instructions to install the
anchor bracket.
Spacer
Bolt
216.1 mm
(8.5 in.)
Anchor
bracket
52.8 mm
(2.1 in.)
216.1 mm
(8.5 in.)
2- door hardtop and soft- top
Bolt
Anchor
bracket
Spacer
335.0 mm
(13.2 in.)
335.0 mm
(13.2 in.)
127.4 mm
(5.0 in.)
4- door hardtop
On the luggage compartment floor
a. Using the illustration as a guide, run
your fingers across the luggage compart-
ment floor itself to locate the position of
the bolts underneath.
b. Remove the bolt.
c. Insert a 10 mm (0.4 in.) spacer and
tighten down the anchor bracket for your
child restraint system with a bolt. Torque
the bolt to 16.5—24.7 N⋅m (1.68—2.52
kgf⋅m, 12.2—18.2 ft⋅lbf).
To comply with Canadian Motor Vehicle
Safety Standards, this model sold in Can-
ada is provided with a bracket set in the
glove box, designed for use with any of
the 2 anchor locations shown in the il-
lustration.
If your child restraint system does not
provide any of the necessary parts, ask
your Toyota dealer. (See ”—Child restraint
system”.)
If you remove the anchor brackets when
the child restraint system is necessary no
longer, replace the bolts in the holes to
prevent entry of exhaust emissions, water
or dirt.
—Top strap anchors and
locations
