TP-Link Archer AX23 User Manual

56
Chapter 11
Network Security

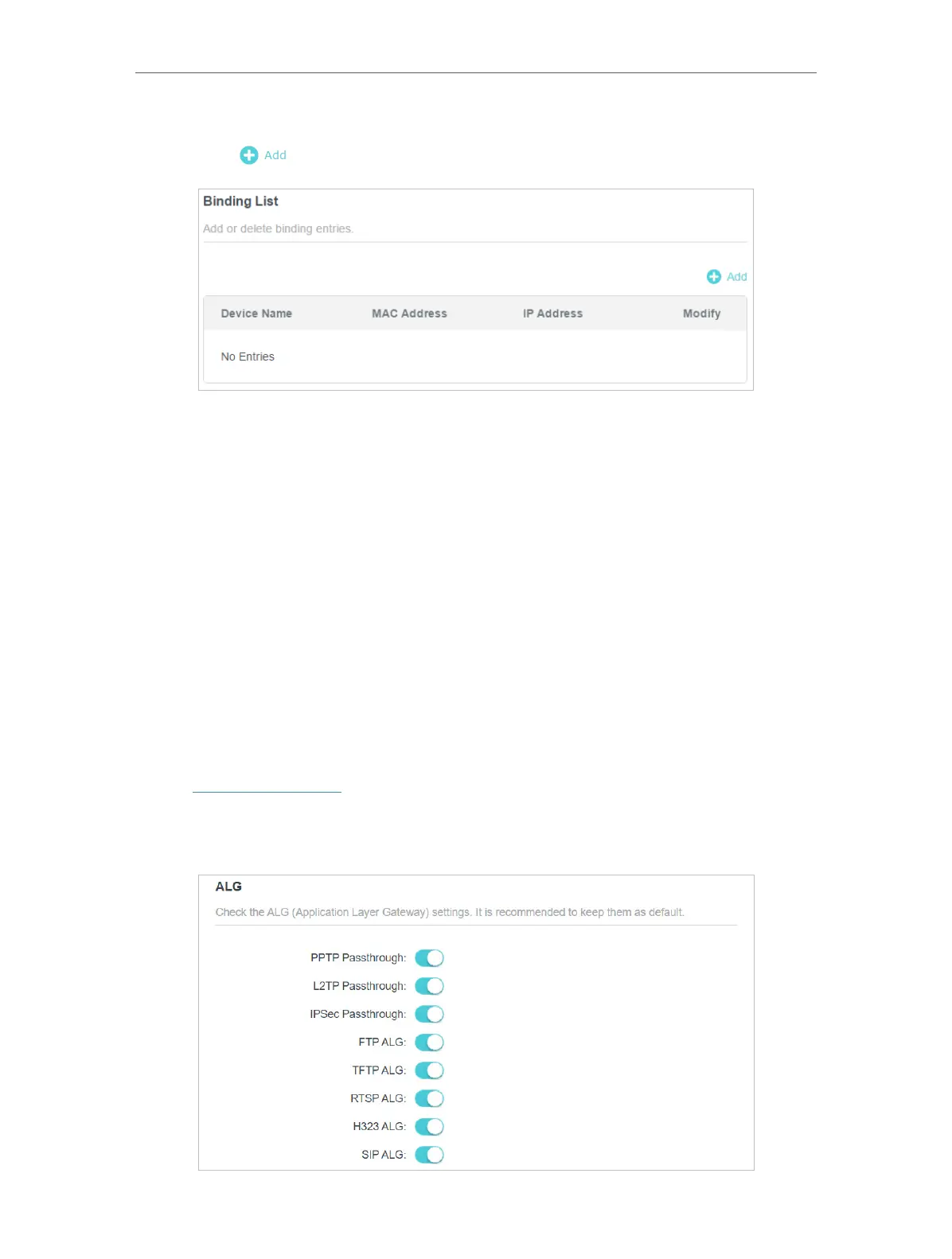

To bind the unconnected device:
1 ) Click
in the Binding List section.
2 ) Enter the MAC Address and IP Address that you want to bind.
3 ) Click SAVE.
Done!
Now you don’t need to worry about ARP spoofing and ARP attacks!
11. 4. ALG
ALG allows customized NAT traversal filters to be plugged into the gateway to support
address and port translation for certain application layer “control/data” protocols such
as FTP, TFTP, H323 etc. It is recommended to keep the default settings.
You may need to disable SIP ALG when you are using voice and video applications to
create and accept a call through the router, since some voice and video communication
applications do not work well with SIP ALG.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > Security > ALG.

TP-Link Archer AX23 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
WAN connection type	RJ-45
Product type	Tabletop router
Product color	Black
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1800 Mbit/s
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	1201 Mbit/s
Antenna connector type	SMA
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Certification	FCC, CE, RoHS
Processor cores	2
Processor frequency	1500 MHz
Output current	1 A
Output voltage	12 V
Power source type	DC
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Cables included	LAN (RJ-45)
Package depth	350 mm
Package width	500 mm
Package height	395 mm
Package weight	730 g
NAT functionality	Port Forwarding, Port Triggering, UPnP, DMZ
Security algorithms	64-bit WEP, 128-bit WEP, WMM, WPA, WPA-PSK, WPA2, WPA2-PSK
Harmonized System (HS) code	85176990
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	135 mm
Width	260.2 mm
Height	41.6 mm
