TP-Link Archer AX6000 User Manual

75
Chapter 12
Customize Your Network Settings

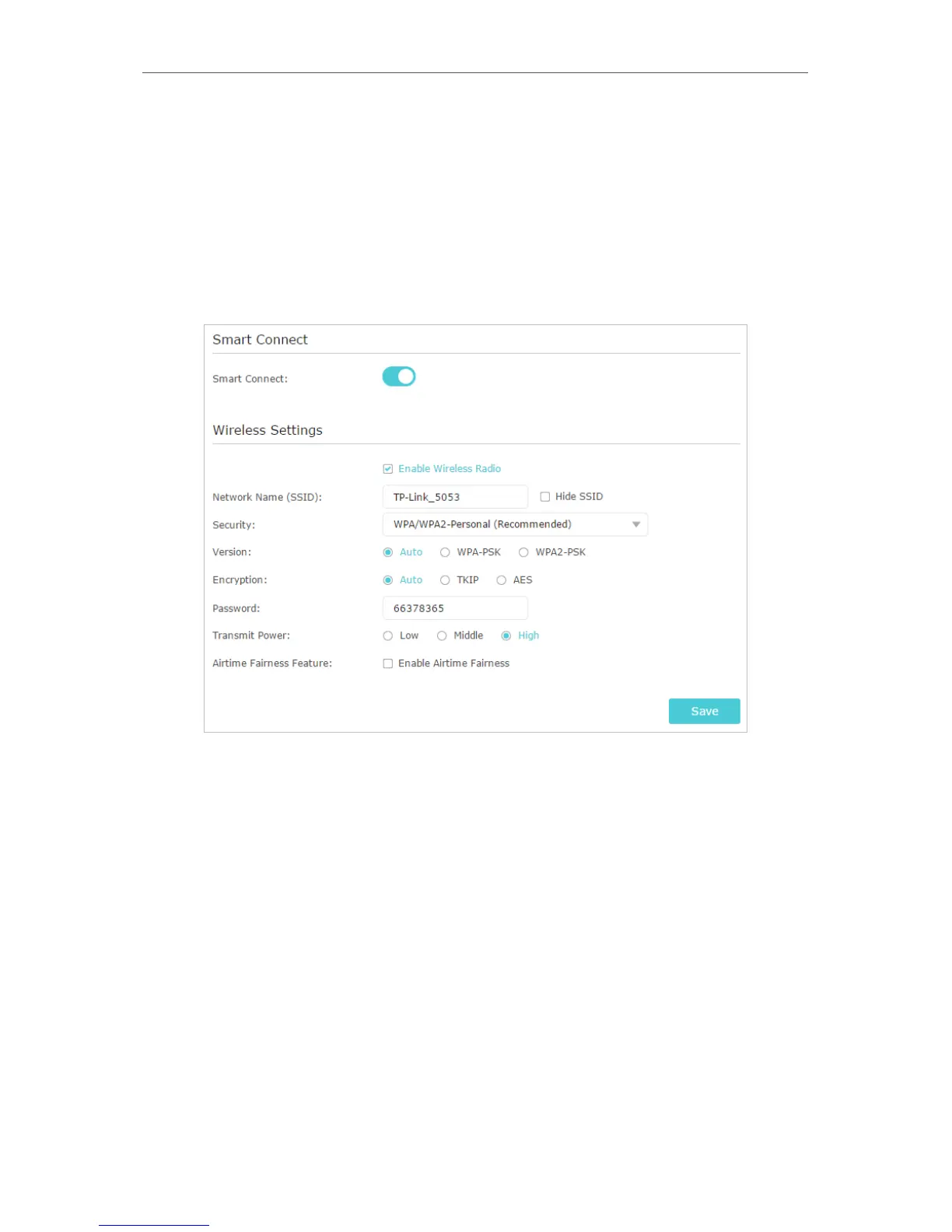

The smart connect function lets you to enjoy a more high-speed network by assigning
your devices to best wireless bands based on actual conditions to balance network
demands.
1. Go to Advanced > Wireless > Wireless Settings.
2. Enable Smart Connect.
3. Keep the default or set a new SSID and password, and click Save. This SSID and
password will be applied both for 2.4GHz and 5GHz wireless networks.
¾ To change the security option:
1. Go to Advanced > Wireless > Wireless Settings.
2. Select the wireless network 2.4GHz or 5GHz.
3. Select an option from the Security drop-down list. We recommend you don’t change
the default settings unless necessary. If you select other options, configure the
related parameters according to the help page.
In addition
• Mode - Select a transmission mode according to your wireless client devices. It is
recommended to just leave it as default.
• Channel Width - Select a channel width (bandwidth) for the wireless network.
• Channel - Select an operating channel for the wireless network. It is recommended
to leave the channel to Auto, if you are not experiencing the intermittent wireless
connection issue.

TP-Link Archer AX6000 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	4804 Mbit/s
Number of WLAN connections (max)	8
WLAN data transfer rate (first band)	1148 Mbit/s
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, Status, USB, WAN, WLAN
Flash memory	128 MB
Certification	FCC, CE, RoHS
Internal memory	1 MB
Processor cores	4
Processor frequency	1860 MHz
Memory card slot(s)	-
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	5GHz: 11a 6Mbps: -97dBm, 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm 11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS11:-55dBm 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm 11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm 11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm 11ax HE160_MCS0:-85dBm, 11ax HE160_MCS11:-55dBm 2.4GHz: 11g 6Mbps: -97dBm, 11a 54Mbps:-79dBm 11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm 11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm
Ethernet LAN data rates	10, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Output current	4 A
Output voltage	12 V
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Transmit power	CE: \u003C20dBm(2.4GHz), \u003C23dBm(5.15GHz~5.35GHz); \u003C30dBm(5.47GHz~5.725GHz), FCC: \u003C30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz) dBmW
Package depth	290 mm
Package width	365 mm
Package height	120 mm
Package weight	1820 g
Number of products included	1 pc(s)
Cables included	LAN (RJ-45)
Firewall security	DoS, SPI Firewall, IP and MAC Address Binding
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Mac operating systems supported	macOS
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows XP

Weight and Dimensions

Width	261.3 mm
Height	60.5 mm
