TP-Link TF-3200 User Manual

TF-3200 10/100Mbps PCI Network Adapter
11
2.2.2 For Windows 7
1. Insert the TP-LINK Resource CD into the CD-ROM drive.

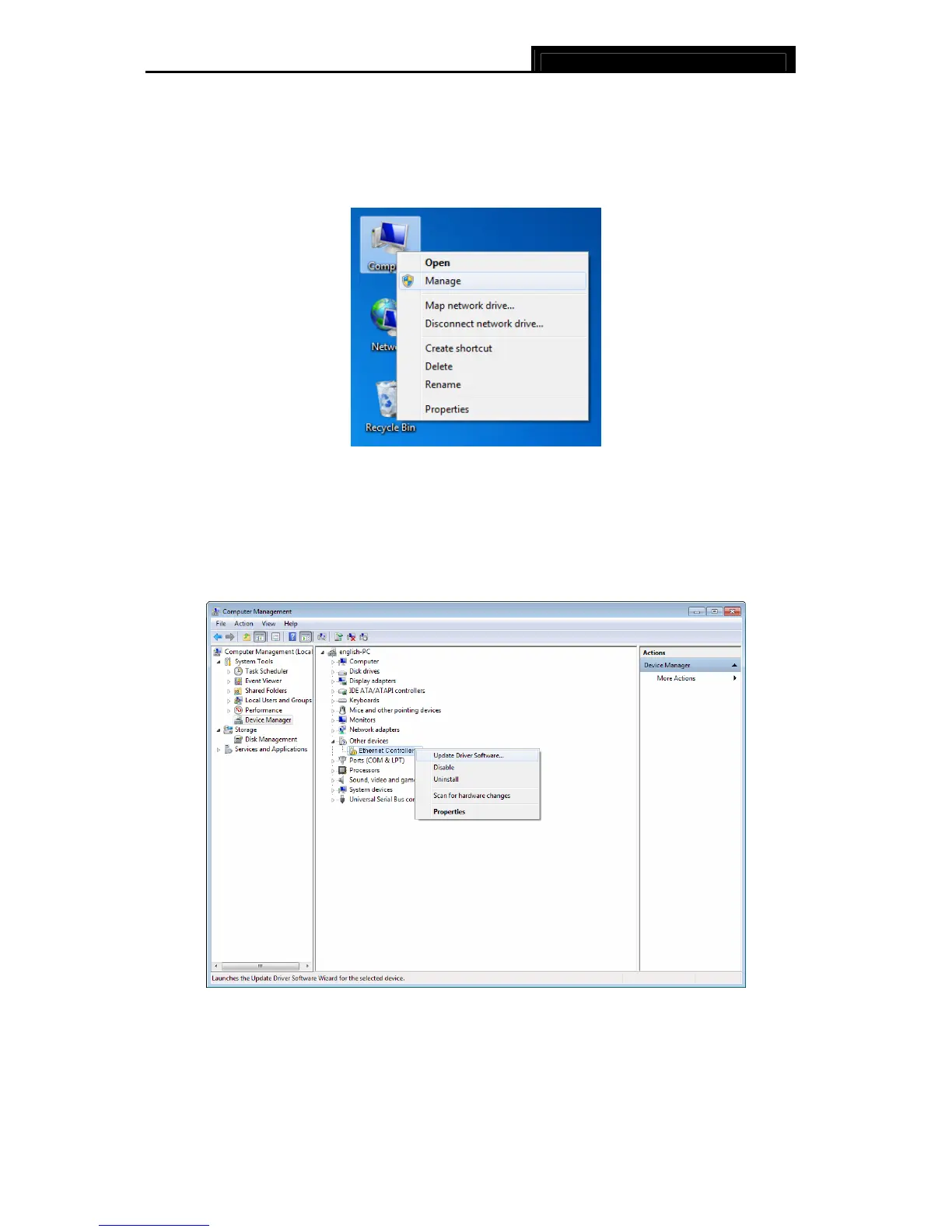

2. Right-click the icon Computer on the desktop, and then click Manage.
Figure 2-16
3. The Computer Management screen will appear as shown in Figure 2-17. Click Device
Manager, and then you will see the various options on the right. Click Other devices, and
then from the drop-down list please find Ethernet Controller. Right-click it, and then select
Update Driver Software….
Figure 2-17
4. The next screen will appear as shown in Figure 2-18. Select Bro
wse my computer for
driver software.

TP-Link TF-3200 Specifications

General

Full duplex	Yes
Maximum data transfer rate	100 Mbit/s
Compliance industry standards	IEEE 802.3, 802.3u, 802.3x
Supported data transfer rates	10/100 Mbps
Connectivity technology	Wired
Compatible operating systems	Win NT, XP, VISTA Linux
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE
