TP-Link TL-POE150S User Manual

2
technology for it will ensure the normal working status of your
network while keep the existing Ethernet infrastructure secure.
1.2 Features
¾ Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3af standards
¾ Compatible with PoE compliant PDs and PoE Receiver Adapters
¾ Transmits electrical power along with data in one single cable
¾ External 48V DC power supply
¾ Supports Plug-and-Play for the devices, without any configuration
¾ Elegant appearance with space-saving mini size
Chapter 2. Identifying External Components
*PoE: This technology describes a system to transmit electrical power, along
with data, to remote devices over standard twisted-pair cable in an
Ethernet network.
*PD: a device powered by a PSE and thus consumes energy. Examples include
powering IP telephones, wireless LAN access points, network cameras,
network hubs, embedded computers etc.
*PSE: a device (switch or hub for instance) that will provide power in a PoE
setup.

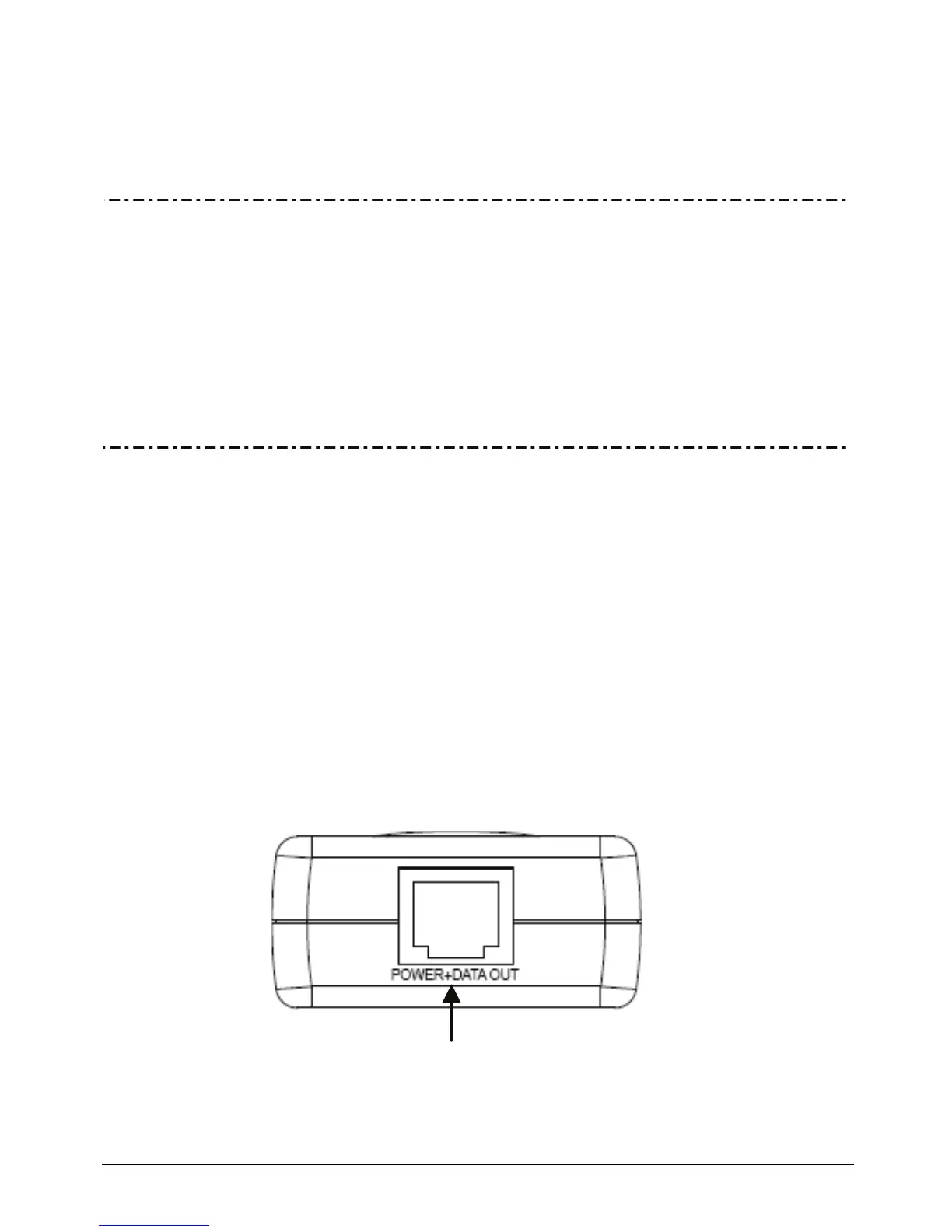

POWER+DATA OUT: Connect to the PD or PoE Receiver
Ada
p
ter with a CAT5 UTP cable.

TP-Link TL-POE150S Specifications

General

Power over Ethernet (PoE) voltage	48 V
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE
Product color	Black
LED indicators	Yes
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Package depth	165 mm
Package width	198 mm
Package height	65 mm
Harmonized System (HS) code	85044090

Weight and Dimensions

Depth	54 mm
Width	80.8 mm
Height	24 mm
