Trane 2TTA2 Series User Manual

6 18-AC51D3-3
Installer’s Guide

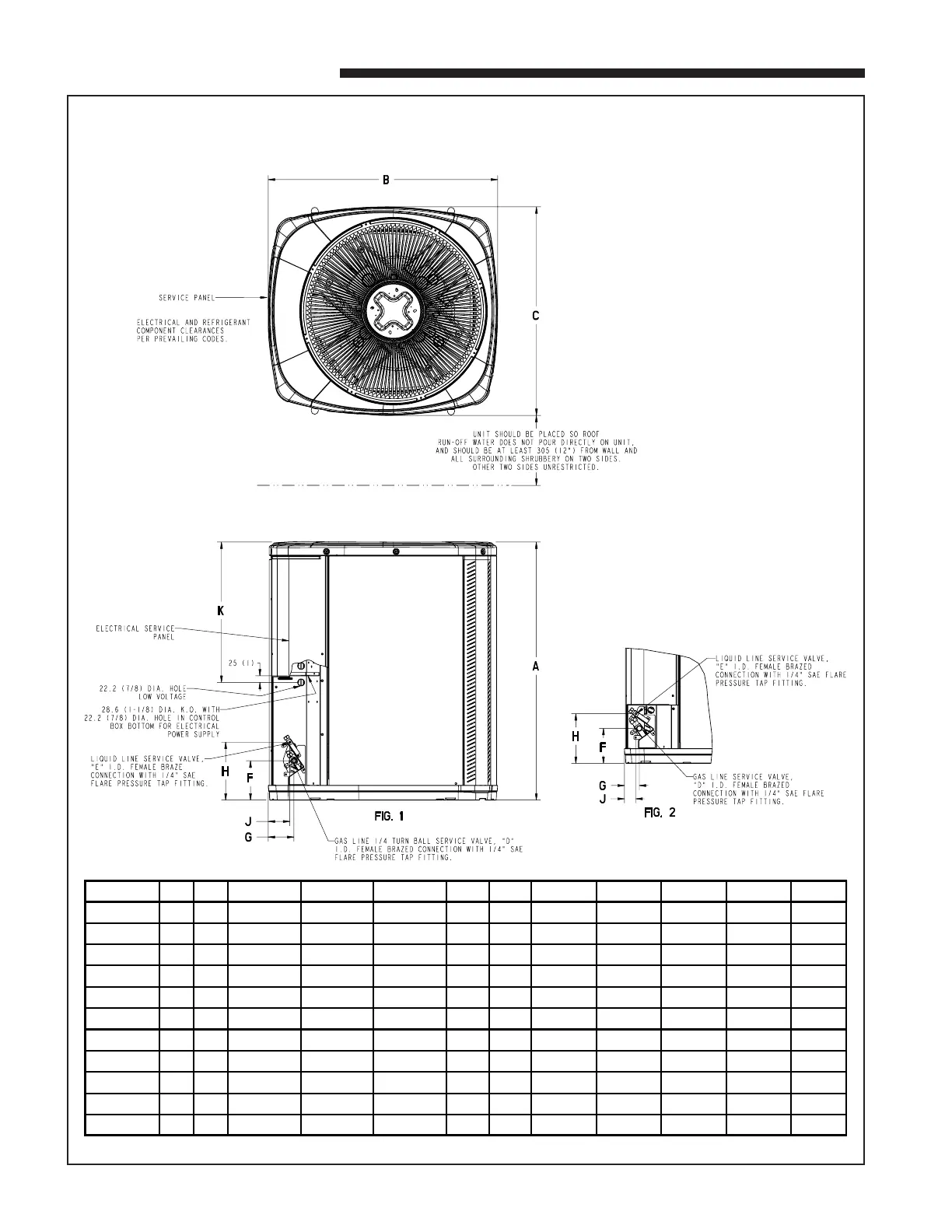

2TTA OUTLINE DRAWING
Note: All dimensions are in MM (Inches).
From Dwg. 21D153074 Rev. 5
MODELS BASE FIG. A B C D E F G H J K
2TTA0030A 2 2 651 (25-5/8) 724 (28-1/2) 651(25-5/8) 3/4 5/16 127 (5) 57 (2-1/4) 181 (7-1/8) 44 (1-3/4) 457 (18)
2TTA0036A 2 2 651 (25-5/8) 724 (28-1/2) 651(25-5/8) 7/8 3/8 127 (5) 57 (2-1/4) 181 (7-1/8) 44 (1-3/4) 457 (18)
2TTA0042A 2 2 730 (28-3/4) 724 (28-1/2) 651(25-5/8) 7/8 3/8 137 (5-3/8) 65 (2-5/8) 210 (8-1/4) 57 (2-1/4) 457 (18)
2TTA0048A 2 2 730 (28-3/4) 724 (28-1/2) 651(25-5/8) 1-1/8 3/8 137 (5-3/8) 65 (2-5/8) 210 (8-1/4) 57 (2-1/4) 457 (18)
2TTA0060A 3 1 832 (32-3/4) 829 (32-5/8) 756 (29-3/4) 1-1/8 3/8 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8) 508 (20)
2TTA0072A 4 1 1045 (41-1/8) 946 (37-1/4) 870 (34-1/4) 1-1/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 508 (20)
2TTA2030A 2 2 730 ( 28-3/4) 724 (28-1/2) 651( 25-5/8) 3/4 3/8 137 (5-3/8) 65 (2-5/8) 210 (8-1/4) 57 (2-1/4) 457 (18)
2TTA2036A 2 2 832 (32-3/4) 724 (28-1/2) 651( 25-5/8) 7/8 3/8 137 (5-3/8) 65 (2-5/8) 210 (8-1/4) 57 (2-1/4) 457 (18)
2TTA2042B 3 1 832 (32-3/4) 829 (32-5/8) 756 (29-3/4) 1-1/8 3/8 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8) 508 (20)
2TTA2048A 3 1 933 (36-3/4) 829 (32-5/8) 756 (29-3/4) 1-1/8 3/8 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8) 508 (20)
2TTA2060A 3 1 933 (36-3/4) 829 (32-5/8) 756 (29-3/4) 1-1/8 3/8 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8) 508 (20)

Trane 2TTA2 Series Specifications

General

Brand	Trane
Model	2TTA2 Series
Category	Heat Pump
Language	English
