4 18-AC78D1-6
Min. 12” to
Shrubbery
Avoid Install
Near Bedrooms
Min 5’ Unrestricted
Access Panel
Min 3’
Unrestricted

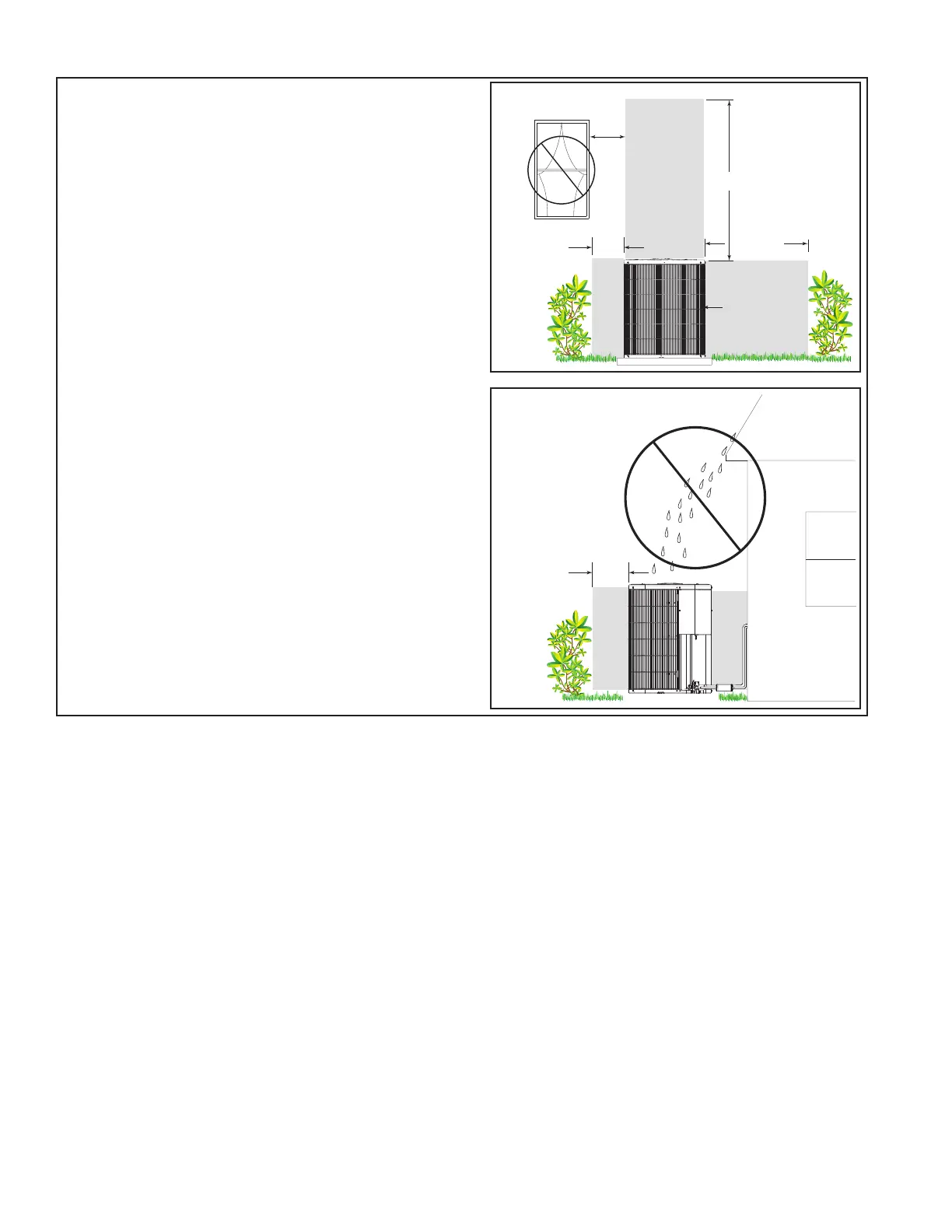

2.4 Location Restrictions
Ensure the top discharge area is unrestricted for
at least five (5) feet above the unit.
Clearance must be provided in front of the
control box (access panels) and any other side
requiring service.
Do not locate close to bedrooms, operational
sounds may be objectionable.
Position the outdoor unit a minimum of 12” from
any wall or surrounding shrubbery to ensure
adequate airflow.
Outdoor unit location must be far enough away
from any structure to prevent excess roof runoff
water from pouring directly on the unit.
