18-AC51D1-8-EN 3
D
H
W
60’
Max
Vertical
Change
Standard
Line Set
60’ Max
Line Length
60’
Max
Vertical
Change

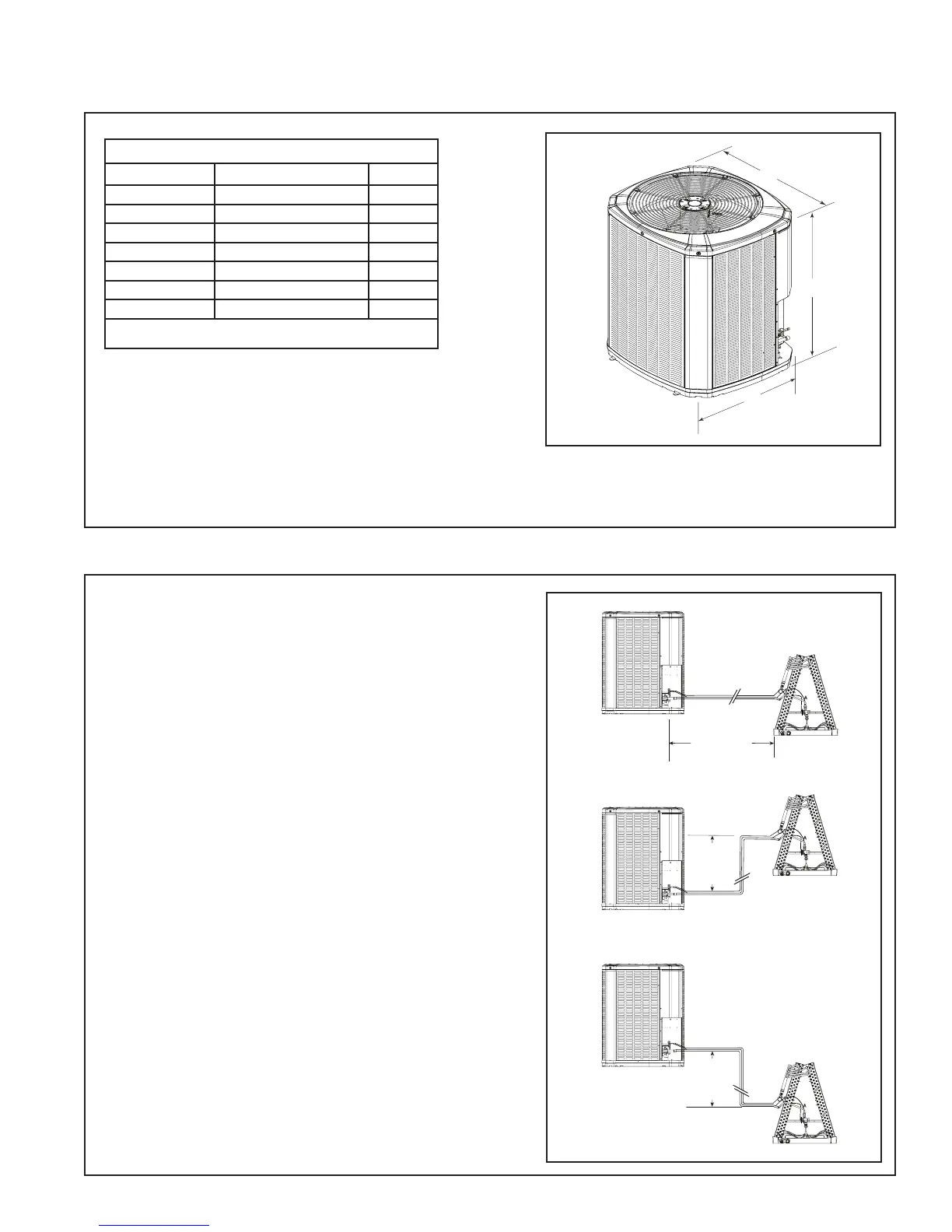

Table 2.1
Unit Dimensions and Weight
Models H x D x W (in) Weight* (lb)
4TTR4018L 29 x 26 x 29 133
4TTR4024/25L 29 x 26 x 29 133
4TTR4030/31L 29 x 30 x 33 156
4TTR4036/37L 33 x 30 x 33 156
4TTR4042/43L 29 x 34 x 37 184
4TTR4048L 29 x 34 x 37 189
4TTR4060L 37 x 34 x 37 211
* Weight values are estimated.
Section 2. Unit Location Considerations
2.1 Unit Dimensions and Weight
2.2 Refrigerant Piping Limits
1. The maximum length of refrigerant lines
from outdoor to indoor unit should NOT
exceed sixty (60) feet.
2. The maximum vertical change should not
exceed sixty (60) feet.
3. Service valve connection diameters are
shown in Table 5.1.
Note: For line lengths greater than sixty (60)
feet, Refer to Refrigerant Piping Application
Guide, SS-APG006-EN or Refrigerant Piping
Software Program, 32-3312-03 (or latest revi-
sion).
When mounting the outdoor unit on a roof, be
sure the roof will support the unit’s weight.
Properly selected isolation is recommended to
alleviate sound or vibration transmission to the
building structure.
Please refer to application bulletin SSC-
APG002-EN for detailed mounting information.
