Trane 4TTR5060N User Manual

18-AC123D1-1B-EN 3
D
H
W
50’
Max
Vertical
Change
Standard
Line Set
150’ Max
TOTAL Line Length
50’
Max
Vertical
Change

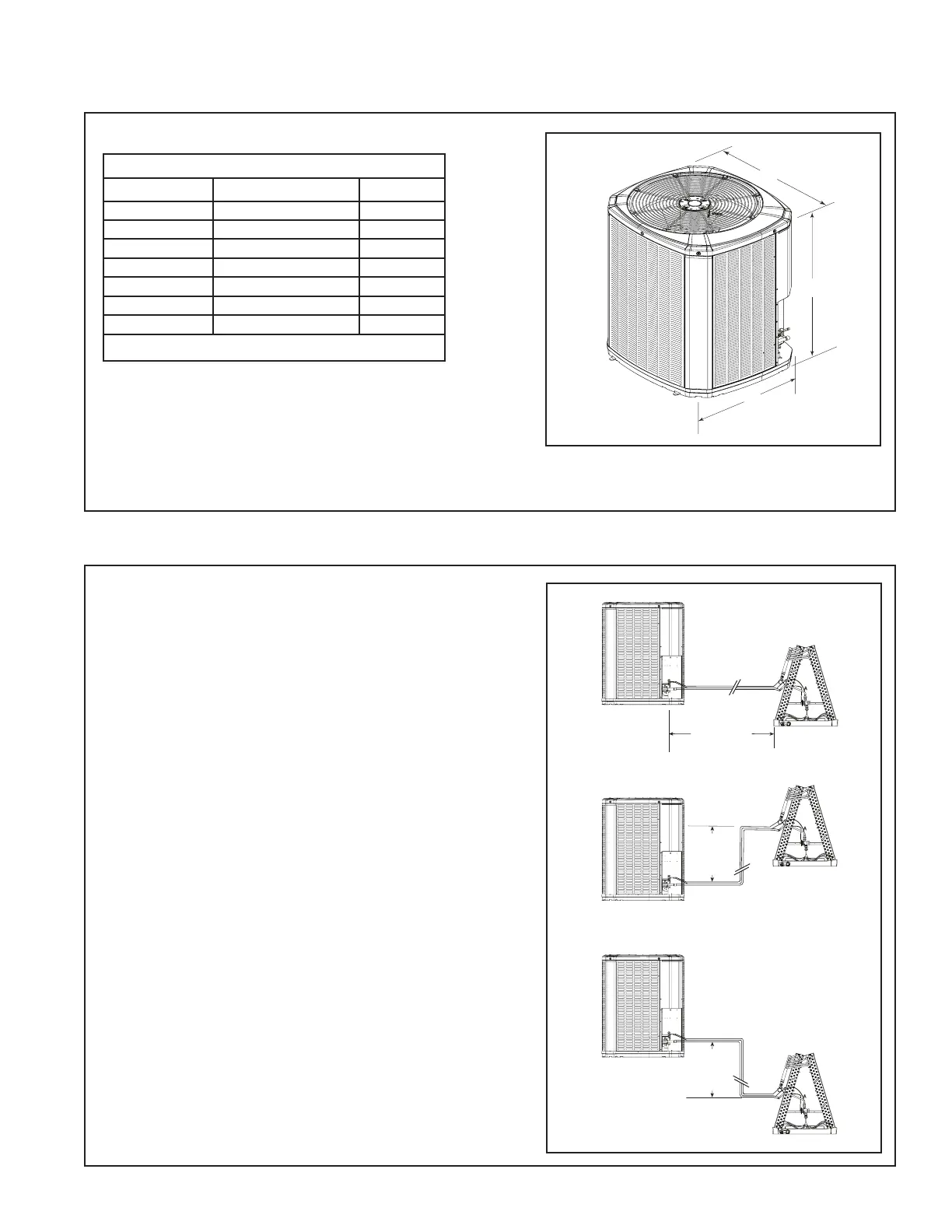

Table 2.1
Unit Dimensions and Weight
Models H x D x W (in) Weight* (lb)
4TTR5018N 29 x 30 x 33 161
4TTR5024N 29 x 30 x 33 162
4TTR5030N 37 x 30 x 33 184
4TTR5036N 37 x 34 x 37 212
4TTR5042N 45 x 34 x 37 252
4TTR5048N 45 x 34 x 37 256
4TTR5060N 45 x 34 x 37 252
* Weight values are estimated.
Section 2. Unit Location Considerations
2.1 Unit Dimensions and Weight
2.2 Refrigerant Piping Limits
1. The maximum TOTAL length of refrigerant
lines from outdoor to indoor unit should
NOT exceed 150 feet (including lift).
2. The maximum vertical change should not
exceed 50 feet.
3. Service valve connection diameters are
shown in Table 5.1.
Note: For other line lengths, Refer to Refriger-
ant Piping Application Guide, SS-APG006-EN
or Refrigerant Piping Software Program, 32-
3312-03 (or latest revision).
When mounting the outdoor unit on a roof, be
sure the roof will support the unit’s weight.
Properly selected isolation is recommended to
alleviate sound or vibration transmission to the
building structure.

Trane 4TTR5060N Specifications

General

Brand	Trane
Model	4TTR5060N
Category	Heat Pump
Language	English
