Trane 4TTV0061A1000A User Manual

18-BC89D1-1D-EN
25

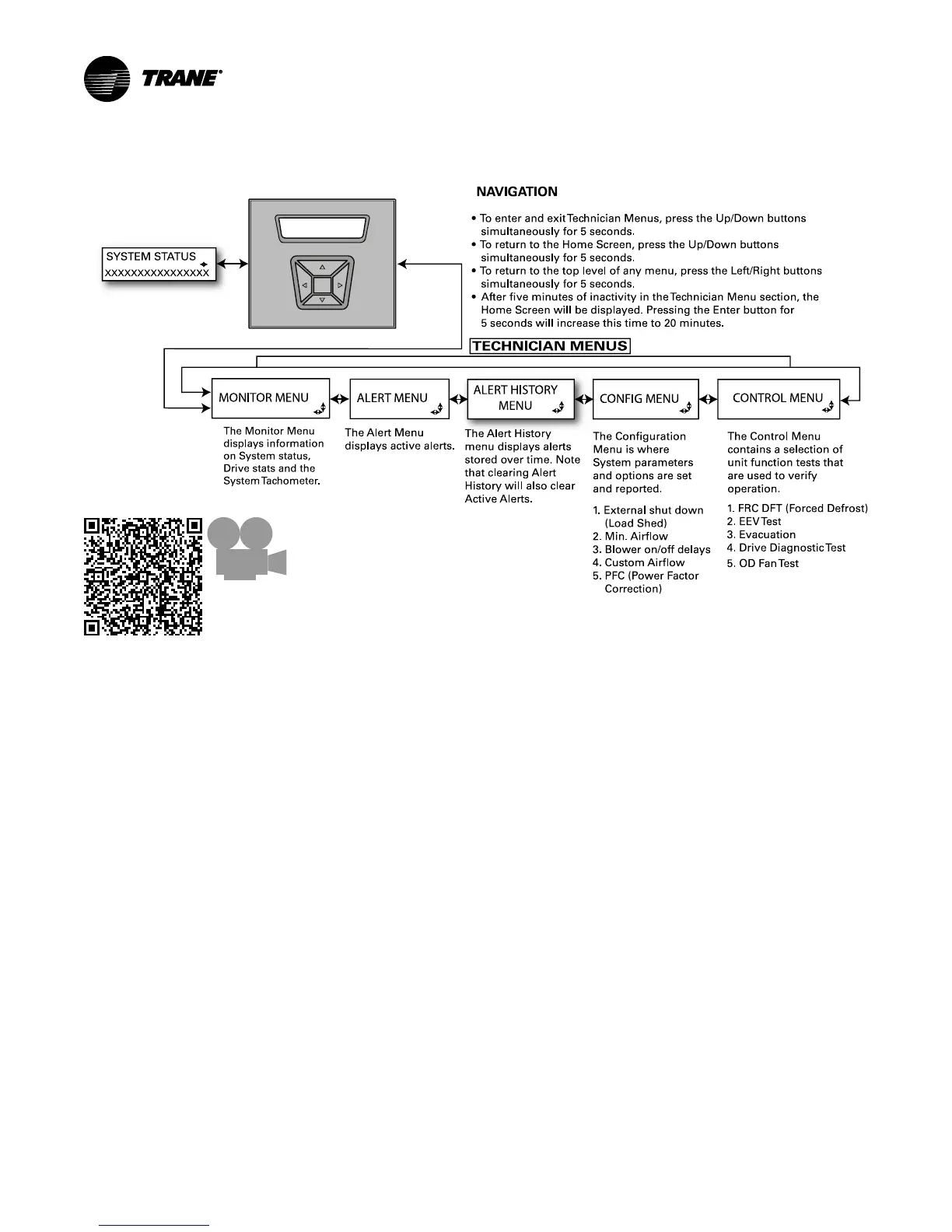

Communicating Display Assembly (CDA)
1. External shut down
(Load Shed)
2. Min. Airflow
3. Blower on/off delays
4. Custom Airflow
5. PFC (Power Factor
Correction)
1. FRC DFT (Forced Defrost)
2. EEV Test
3. Evacuation
4. Drive Diagnostic Test
5. OD Fan Test
TECHNICIAN MENUS
SYSTEM STATUS
XXXXXXXXXXXXXXXX
NAVIGATION
• To enter and exit Technician Menus, press the Up/Down buttons
sim ultaneously for 5 seconds.
• To return to the Hom e Screen, press the Up/Down buttons
sim ultaneously for 5 seconds.
• To return to the top level of any m enu, press the Left/Right buttons
sim ultaneously for 5 seconds.
• After five minutes of inactivity in the Technician Menu section, the
Hom e Screen will be displayed. Pressing the Enter button for
5 seconds will increase this tim e to 20 m inutes.
ALERT HISTORY
MENU
ALERT MENU
CONFIG MENU
CONTROL MENU
MONITOR MENU
The Monitor Menu
displays inform ation
on System status,
Drive stats and the
System Tachometer.
The Alert History
menu displays alerts
sto red over tim e. Note
that clearing Alert
History will also clear
Active Alerts.
The Alert Menu
displays active alerts.
The Configuration
Menu is where
System param eters
and options are set
and reported.
The Control Menu
contains a selection of
unit function tests that
are used to verify
operation.
Scan to see an
overview video
about the CDA
NNoottee:: See the Service Facts found in the control box of
the outdoor unit for more information.
