Trane 4YCY4060A User Manual

18
Optional Equipment

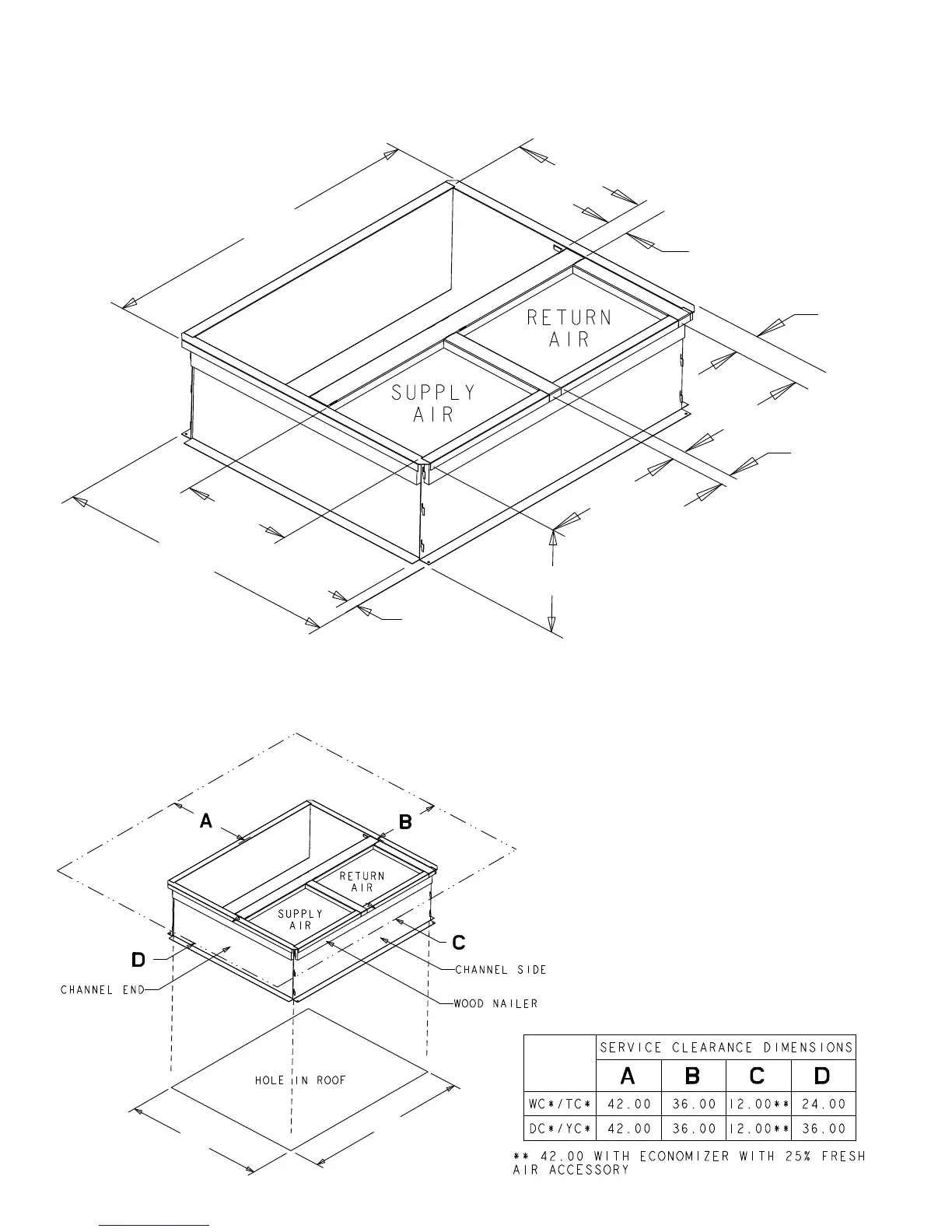

BAYCURB050A Full Perimeter Roof Mounting Curb for *****018-036A
46 3/8
17 7/8
3
3 5/8
19 1/2
2 3/16
19 1/2
14
1 1/2
38 7/8
15
35 7/8
43 3/8
The drawings on this page are prepared by the
manufacturer in order to provide detail regarding
job layout only. These drawings are not intended to
be used as a basis to construct, build or modify the
items depicted in the drawings. The manufacturer is
not responsible for the unauthorized use of these
drawings and expressly disclaims any liability for
damages resulting from such unauthorized use.

Trane 4YCY4060A Specifications

Operating Environment

maximum outdoor ambient temperature for operation	115 °F
standard refrigerant system operation temperature	down to 55 °F
low ambient accessory operation temperature	to 0 °F

Refrigeration System

evaporator coil pressure test	250 to 300 psig
condenser coil pressure withstand	2, 000 psi
evaporator coil tubing diameter	3/8 inch
