4 88-A4AC3001-1J-EN
D
W
H
60’
Max
Vertical
Change
Standard
Line Set
60’ Max
Line Length
60’
Max
Vertical
Change

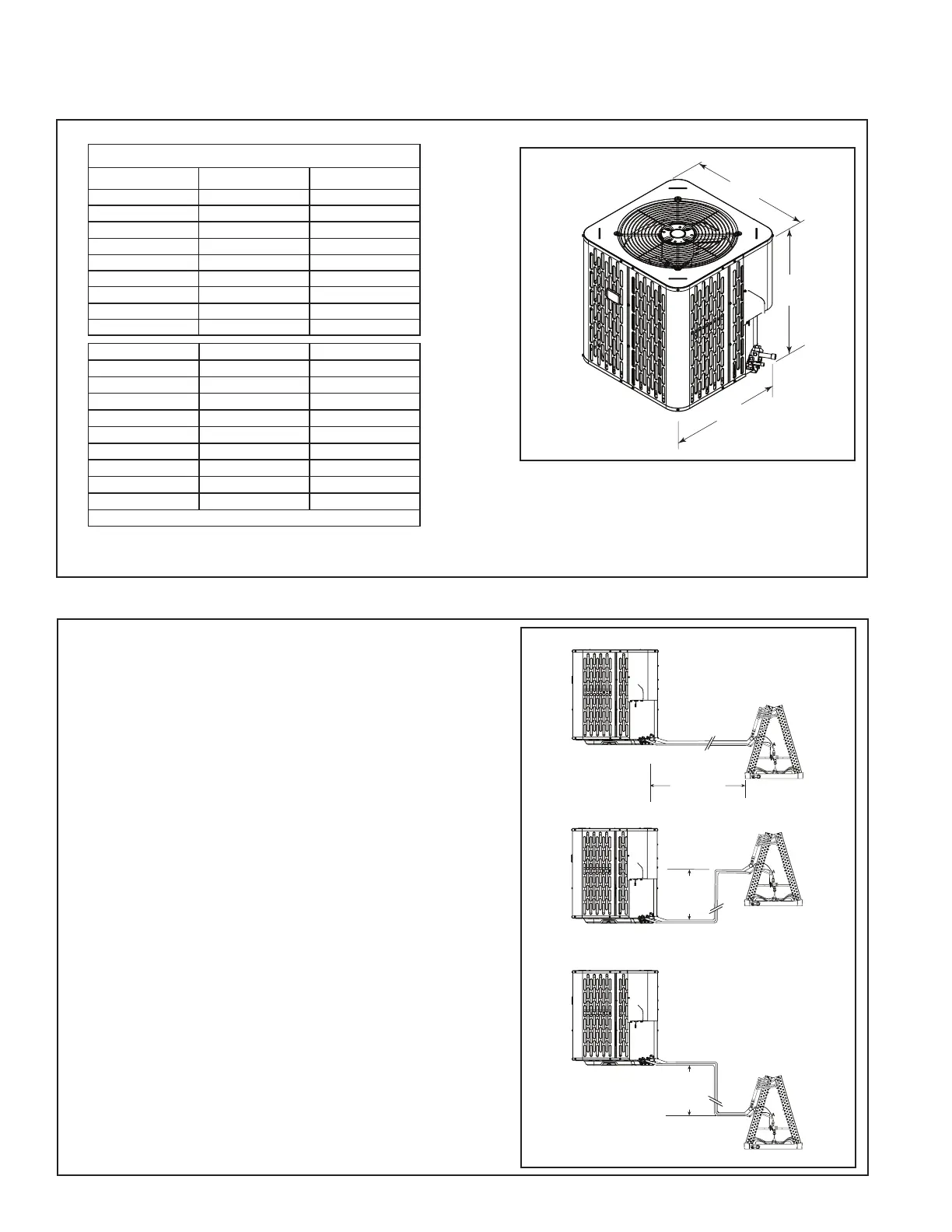

Section 2. Unit Location Considerations
2.1 Unit Dimensions and Weight
2.2 Refrigerant Piping Limits
Table 2.1
When mounting the outdoor unit on a roof, be sure the roof will support the unit’s weight.
Properly selected isolation is recommended to alleviate sound or vibration transmission to the building structure.
1. The maximum TOTAL length of refrigerant
lines from outdoor to indoor unit should
NOT exceed 150 feet* (including lift).
2. The maximum vertical change should not
exceed 50 feet*.
3. Standard and alternate line sizes and
service valve connection sizes are shown in
Table 5.1.
* See Table 5.1 for exceptions for certain
tonnages.
Note: For other line lengths, Refer to Refriger-
ant Piping Application Guide, SS-APG006-EN
or Refrigerant Piping Software Program, 32-
3312-xx (latest revision).
Unit Dimensions and Weight
Models H x D x W (in) Weight* (lb)
A4AC3018D 28.6 x 23.6 x 23.6 130
A4AC3023D 32.6 x 23.6 x 23.6 130
A4AC3024D 28.6 x 25.6 x 25.6 134
A4AC3030D 28.6 x 29.8 x 29.8 163
A4AC3035D 28.6 x 29.8 x 29.8 161
A4AC3036D 32.6 x 29.8 x 29.8 161
A4AC3042D 28.6 x 34.3 x 34.3 193
A4AC3048D 28.6 x 34.3 x 34.3 159
A4AC3060D 36.6 x 34.3 x 34.3 220
A4AC3018A 28.6 x 23.6 x 23.6 130
A4AC3023A 28.6 x 23.6 x 23.6 130
A4AC3024A 28.6 x 25.6 x 25.6 134
A4AC3029A 28.6 x 23.6 x 23.6 130
A4AC3030A 28.6 x 29.8 x 29.8 163
A4AC3036A 28.6 x 29.8 x 29.8 160
A4AC3042A 28.6 x 29.8 x 29.8 177
A4AC3043A 28.6 x 34.3 x 34.3 193
A4AC3048B 28.6 x 34.3 x 34.3 159
A4AC3060A 36.6 x 34.3 x 34.3 220
* Weight values are estimated.
