Trane A4AH4 Series User Manual

18-GF16D1-1A-EN
17

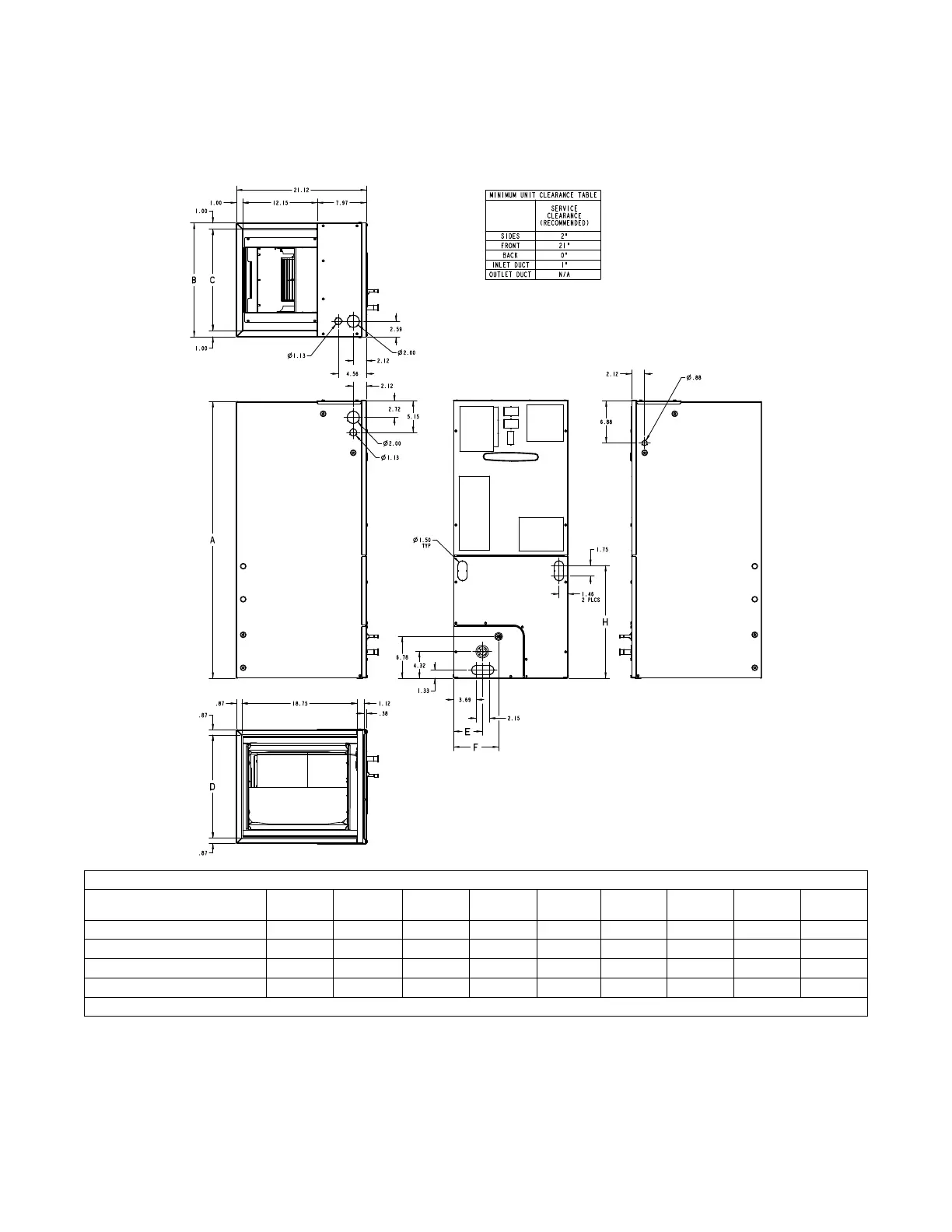

Outline Drawing
NOTE: THIS UNIT IS APPROVED FOR INSTALLATION
CLEARANCES TO COMBUSTIBLE MATERIAL AS
STATED ON THE UNIT RATING NAMEPLATE
NOTE: ALL DIMENSIONS ARE REFERENCE DIMENSIONS
PRODUCT DIMENSIONS
Air Handler Model A B C D E F H
Flow
Control
Gas Line
Braze
A4AH4E24 45.02 18.50 16.50 16.75 4.68 7.33 18.34 TXV
3/4
A4AH4E30 46.77 18.50 16.50 16.75 4.68 7.33 20.09 TXV
3/4
A4AH4E36, A4AH4E42
51.27 23.50 21.50 21.75 7.01 9.66 24.59 TXV
7/8
A4AH4E48, A4AH4E60
57.40 23.50 21.50 21.75 4.68 9.66 27.19 TXV
7/8
All dimensions are in inches
