A801X-SVX001-1B-EN
41

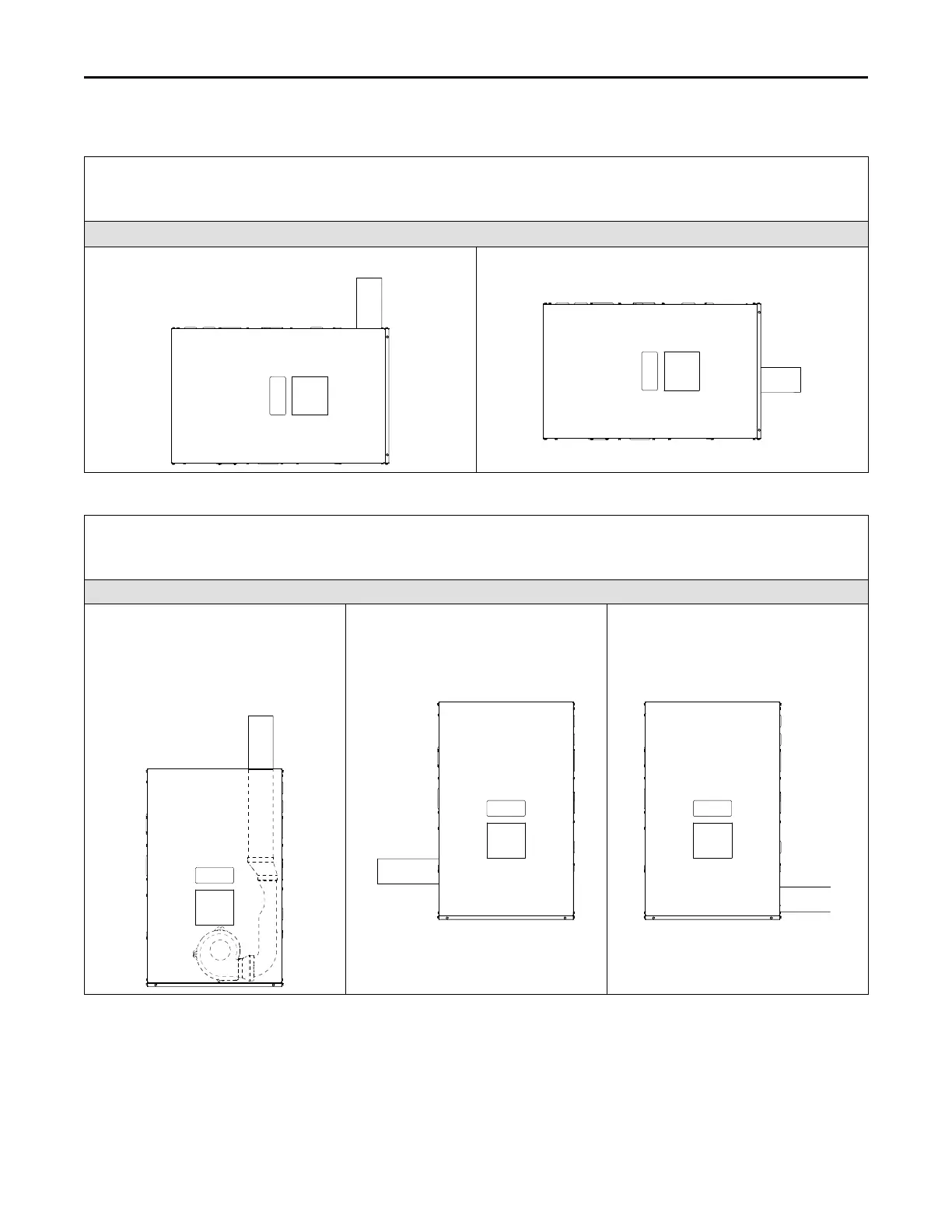

Table 7. Venting Options for Horizontal Right Applications
Refer to the illustrations below to find the approved venting options for horizontal right furnace.
Important: The exhaust must be vented to the outdoors.
Note: 4” Type B double wall vent pipe must be used inside of the furnace cabinet.
Horizontal Right Orientation or Installation
Vented out top.
Vented through right side.
Table 8. Venting Options for Downflow Applications
Refer to the illustrations below to find the approved venting options for downflow furnace models.
Important: The combustion air exhaust must be vented to the outdoors.
Note: 4” Type B double wall vent pipe must be used inside of the furnace cabinet.
Downflow Orientation or Installation
Vented out top.
Vented through left side.
Vented through right side.
Note: Requires kit BAYVENT600. Kit used
with B, C, and D cabinets only.
Note: “A” cabinet furnaces must be vented
through the left of right side openings.
FFuurrnnaaccee CCoommbbuussttiioonn AAiirr EExxhhaauusstt OOppttiioonnss
