Low Voltage Terminal Strip
10 Pin
Connector
(ILI not used)
LINE
Connections
NEUTRAL
Connections
7 Segment LED
MENU and OPTION
Select Buttons
5 Amp Fuse
Flame Current
FP
HLI
W R G B/C Y/Y1
Inducer/Igniter
Connector
IGN-N
IND-N
IND-H
IGN-H
MV
GND
TH
MVC
HLO
PS1
TR
ILI
6 Pin CTM Motor
Connector
Tap 1 - Low Speed
Tap 2
Tap 3
Tap 4
Tap 5 - High Speed
Common
6 Pin CTM
Connector

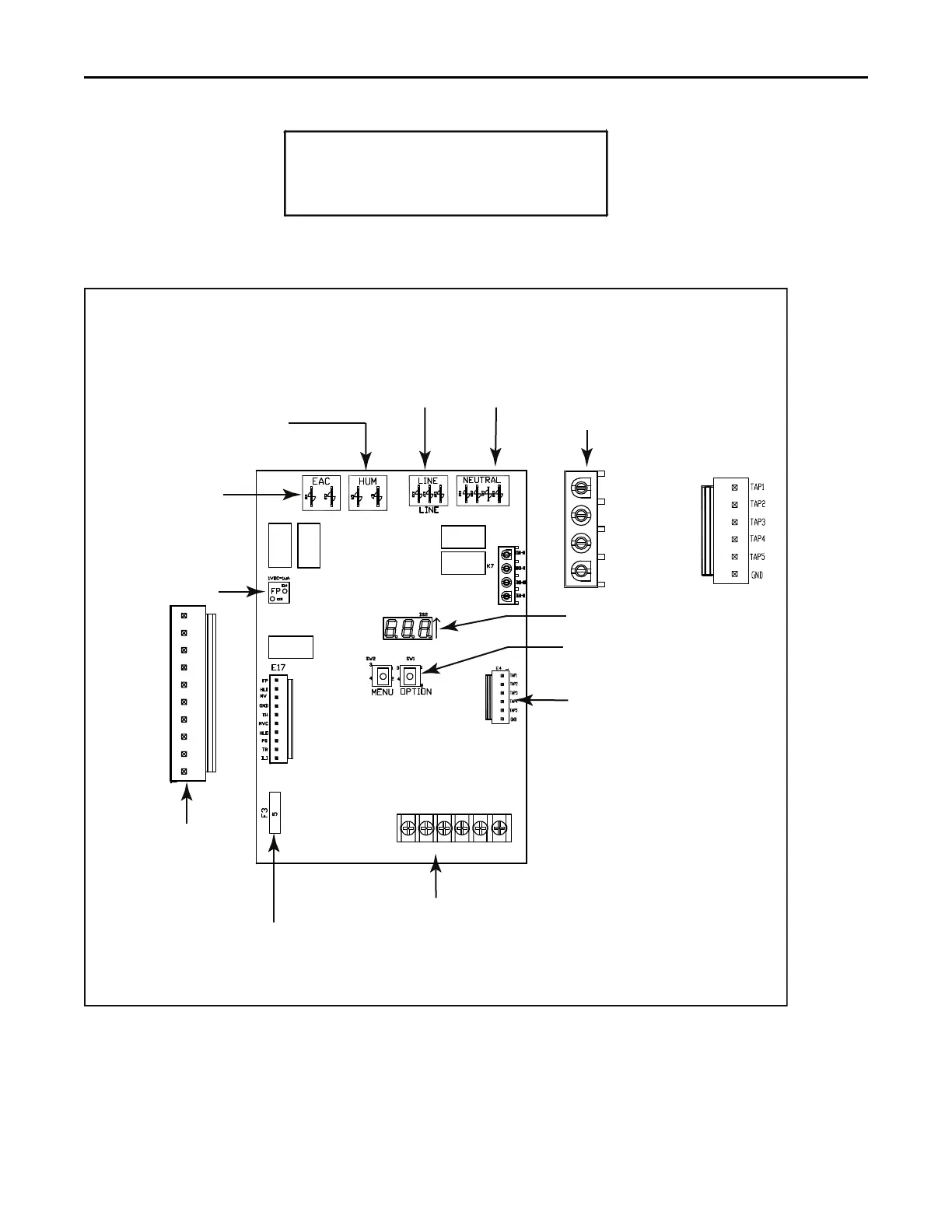

A801X IFC Component Layout
EAC
Connections
HUM
Connections
Y2
TTrroouubblleesshhoooottiinngg
