Control System Components
Control Panel Internally mounted devices
For visual identification Internal Control Panel mounted devices are identified by their
respective schematic designation number.
Control panel items are marked on the inner back panel in the control panel (Figure
33).
The Control Panel Devices table corresponds to the same device designators. Optional
controls are present when a specific optional controls package is specified. Optional
controls packages are: OPST Operating Status, GBAS Generic Building Systems, EXOP
Extended operation, and TRMM Tracer communications. 1A1, 1A4, 1A5, 1A6, 1A9,
1A13, 1A19, 1A26 are standard and present in all configurations. Other modules vary
depending on machine optional devices.

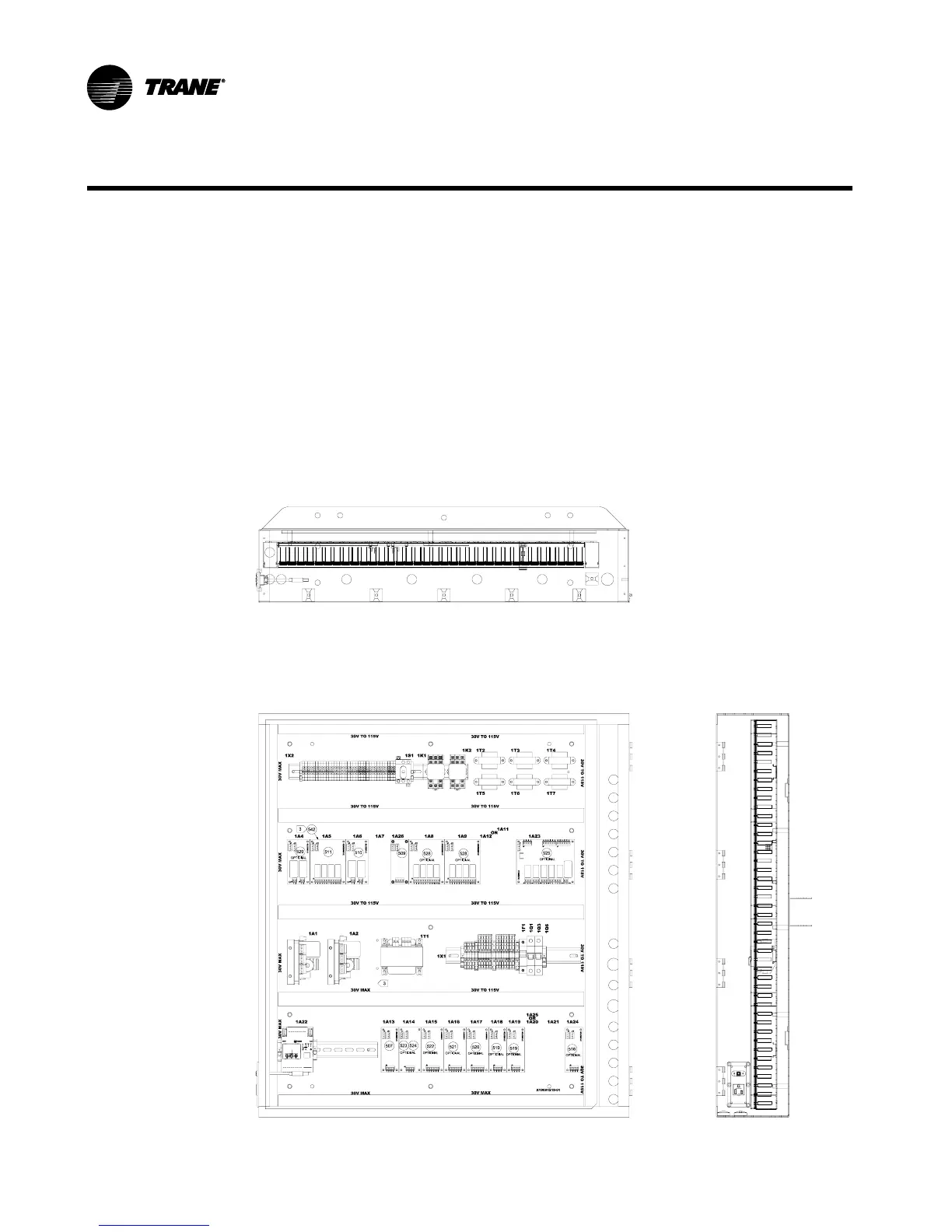

Figure 33. Control panel components layout
Control System Components
CVGF-SVX03B-EN
90
