RTAA Model Circuit/Tons Compressor/Tons
130 1 70 A 70
270 B70
140 1 70 A 70
270 B70
155 1 85 A 85
270 B70
170 1 100 A 100
270 B70
185 1 100 A 100
285 B85
200 1 100 A 101
2 100 B 100
RTAA Model Circuit/Tons Compressor/Tons
240 1 140 A 70
B70
2 100 C 100
270 1 170 A 100
B70
2 100 C 100
300 1 200 A 100
B 100
2 100 C 100
340 1 140 A 70
B70
2 200 C 100
D 100
370 1 170 A 100
B70
2 200 C 100
D 100
400 1 200 A 100
B 100
2 200 C 100
D 100
Table 2

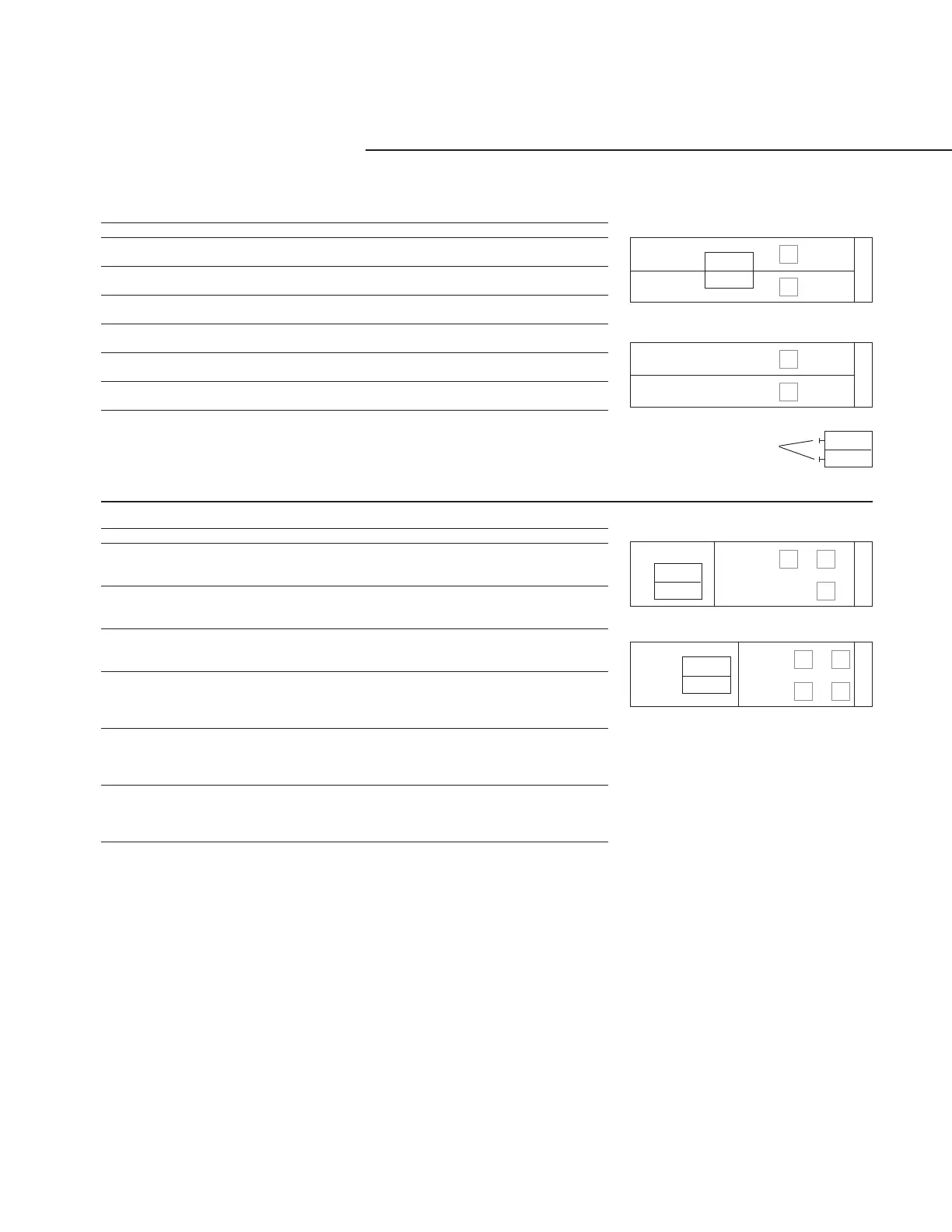

RTAA Refrigerant Circuit Designations and Capacities
Package Unit 130-200
Remote Evaporator Unit 130-200
P
N
L
COND 1 A
COND 2 B
Electronic
Expansion
Valves
P
N
L
COND 1
EVAP 1
A
COND 2
EVAP 2
B
EVAP 1
EVAP 2
240-300
P
N
L
COND 2
EVAP 2
EVAP 1
COND 1
CA
B
340-400
P
N
L
COND 2
EVAP 2
EVAP 1
COND 1
CA
DB
