RTAA-IOM-3

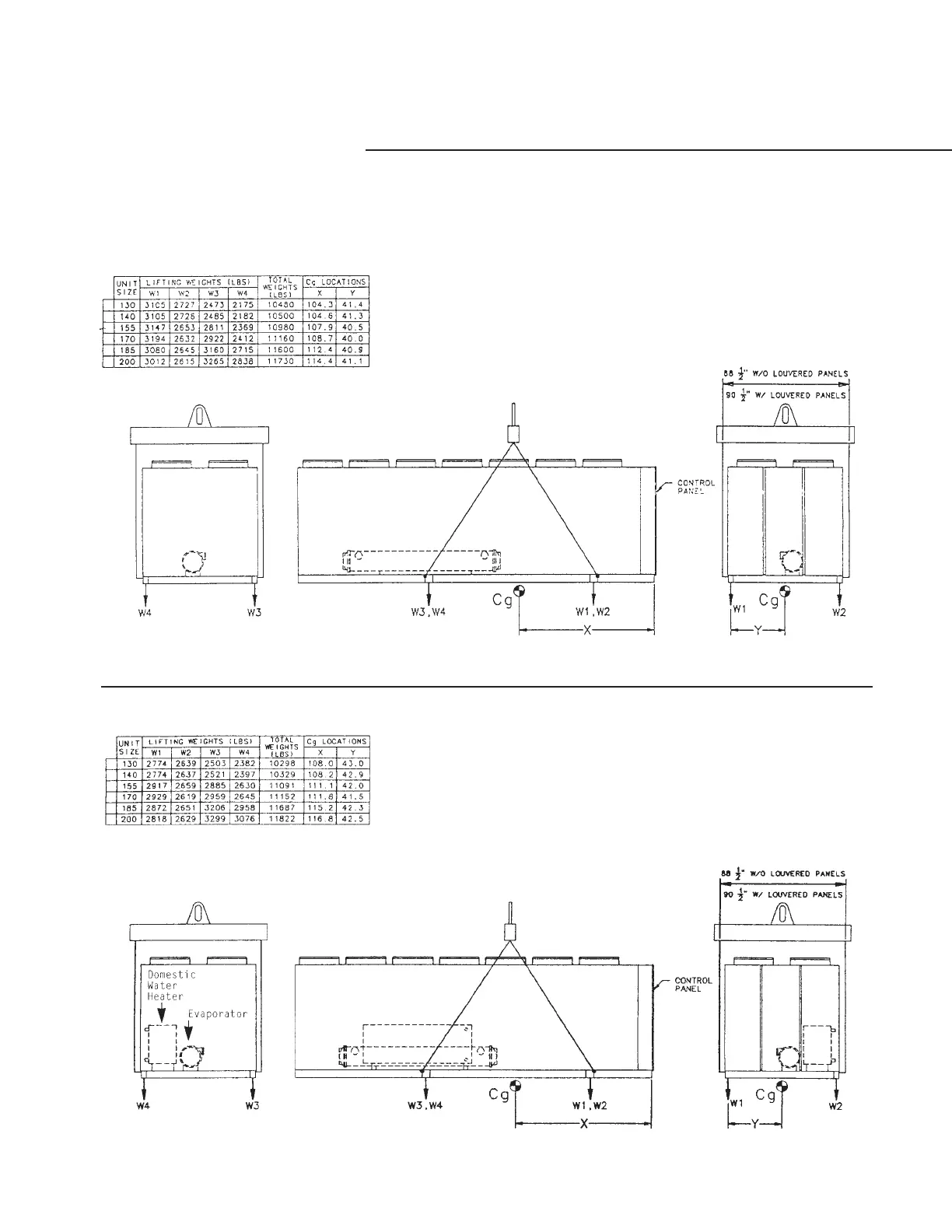

Figure 14
Rigging and Lifting Weights for
RTAA Packaged Unit
NOTES:
1. LIFTING CHAINS (CABLES) WILL NOT BE THE SAME LENGTH. ADJUST TO
KEEP UNIT LEVEL WHILE LIFTING.
2. DO NOT FORK LIFT UNIT.
3. WEIGHTS ARE TYPICAL FOR UNITS WITH R-22 CHARGE.
4. DEDUCT 740 FROM TOTAL WEIGHT FOR UNITS WITHOUT
ARCHITECTURAL LOUVER PANELS.
130-200 Tons
without Domestic Water Heater
NOTES:
1. LIFTING CHAINS (CABLES) WILL NOT BE THE SAME LENGTH. ADJUST TO
KEEP UNIT LEVEL WHILE LIFTING.
2. DO NOT FORK LIFT UNIT.
3. WEIGHTS ARE TYPICAL FOR UNITS WITH R-22 CHARGE.
4. DEDUCT 740 FROM TOTAL WEIGHT FOR UNITS WITHOUT
ARCHITECTURAL LOUVERED PANELS.
130-200 Tons
with Domestic Water Heater
RTAA-SA-2001C
RTAA-SA-2007A
