RLC-SVX02G-E4
20
Installation - Mechanical

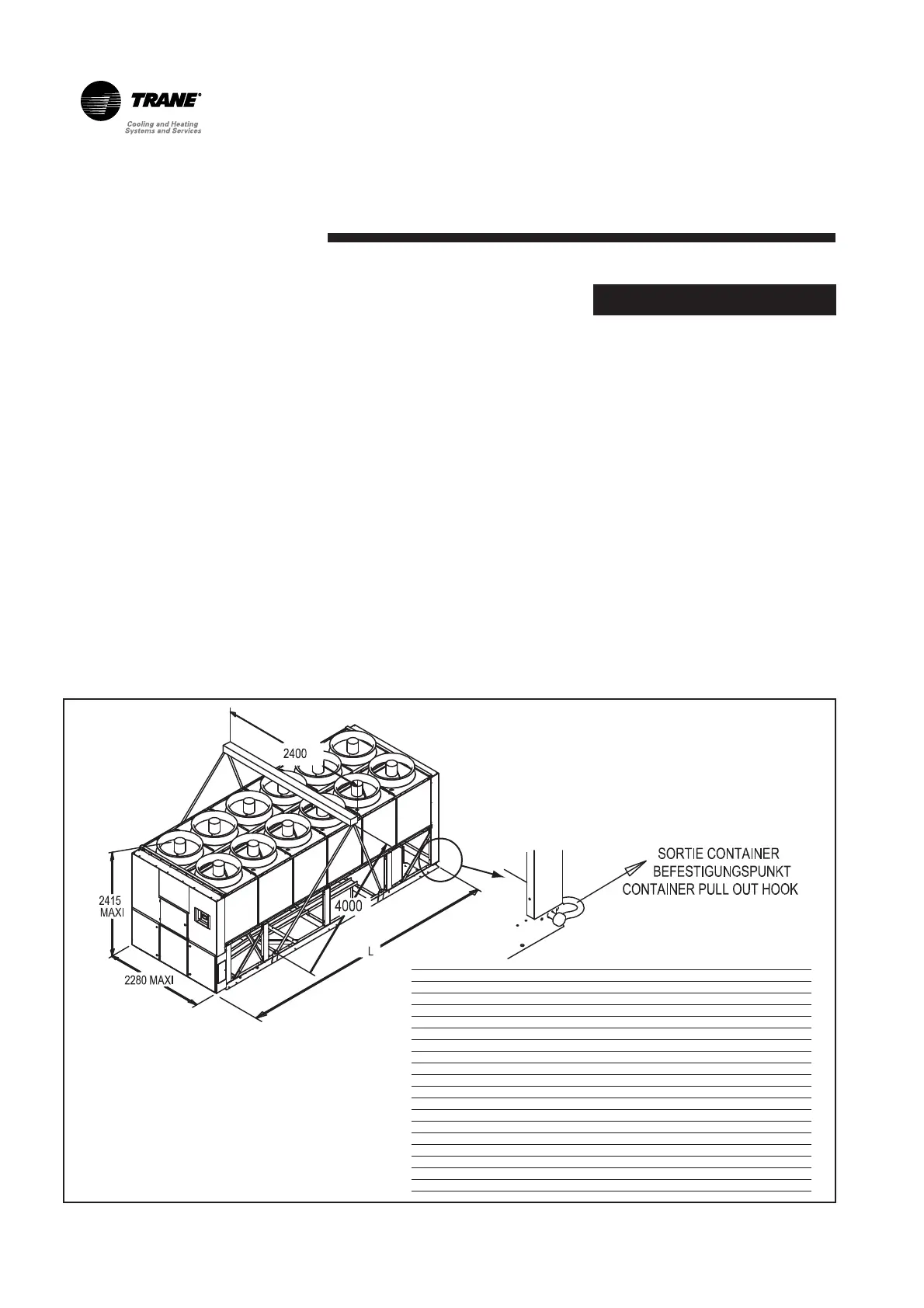

Figure 3 – Rigging the Unit, Sizes 120-200
Container Pull Out Hook
Maximum Shipping Weight
RTAC L A Aluminum Copper
120 HE - 140 SE 5041 4000 4363 4957
120 XE 5041 4000 4677 -
130 HE - 155 SE 5041 4000 4411 5046
130 XE 5041 4000 4604 -
140 HE 5041 4000 4427 5087
140 XE 5041 4000 4511 -
155 HE 5960 4000 5071 5784
155 XE 5960 4000 5242 -
170 SE 5041 4000 4692 5356
170 HE 5960 4000 5310 6078
175 XE 6879 4000 5722 -
185 SE 5960 4000 5257 5970
185 HE 6879 4000 5885 6709
185 XE 6879 4000 6174 -
200 SE 5960 4000 5367 6134
200 HE 6879 4000 5984 6864
200 XE 6879 4000 6364 -
4.This unit must be lifted with the
utmost care. Avoid shock load by
lifting slowly and evenly.
Special Lifting and Moving
Instructions
A specific lifting method is
recommended as follows:
1. Lifting points are built into the
unit. (There are four lifting points
for RTAC 120-200, and eight
lifting points for RTAC 230-400.)
2. Slings and spreader bar to be
provided by rigger and attached
to the lifting points.
3. Minimum rated lifting capacity
(vertical) of each sling and
spreader bar shall be no less than
the tabulated unit shipping
weight.
