Installation - Electrical
General Recommendations
WARNING! The warning label shown
in Figure 24 is displayed on the
equipment. Strict adherence to
these warnings must be observed.
Failure to do so may result in
personal injury or death.
All wiring must comply with CE codes.
Typical field wiring diagrams are
included in the unit control panel.
Minimum circuit ampacities and other
unit electrical data are on the unit
nameplate and in the general data
tables. See the unit order specifications
for actual electrical data. Specific
electrical schematics and connection
diagrams are shipped with the unit.

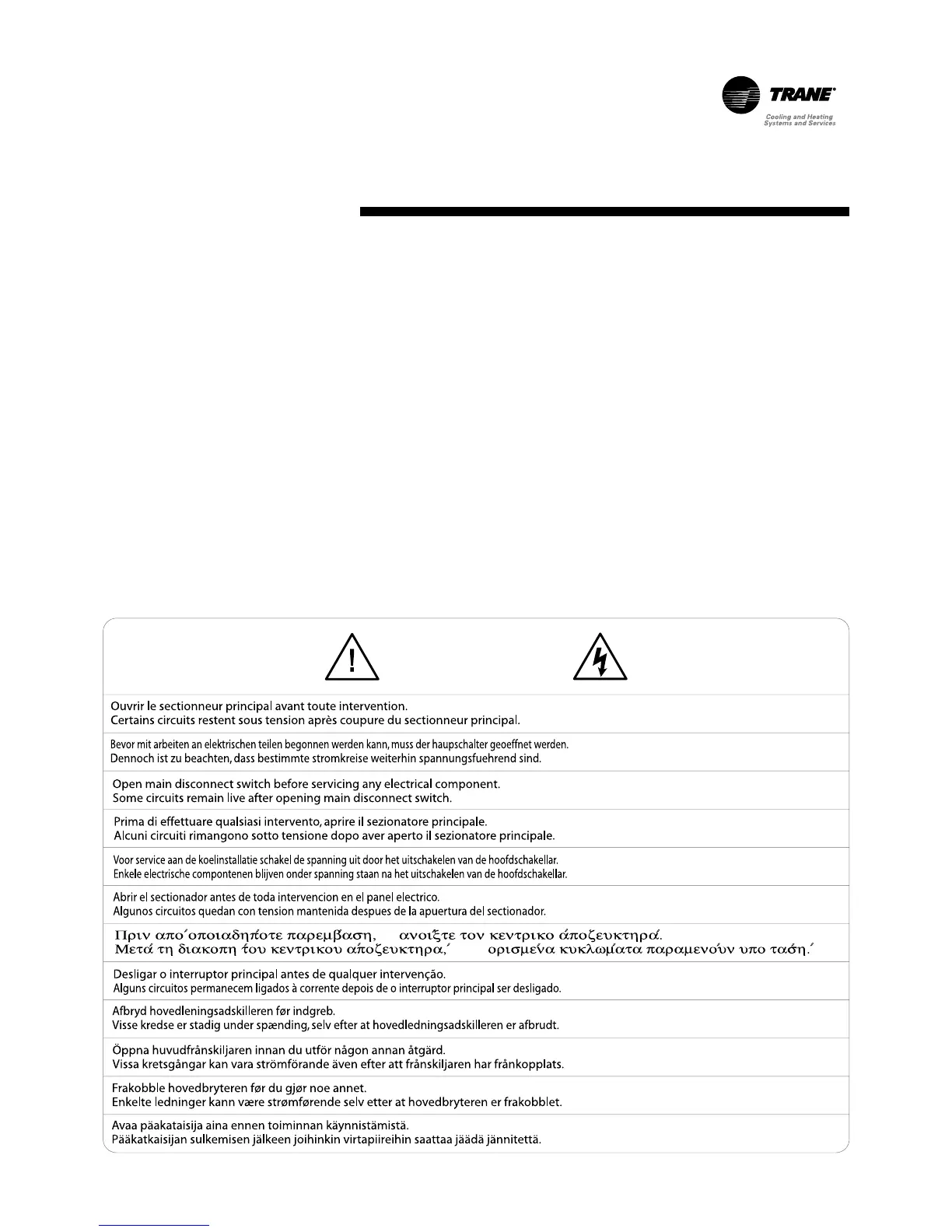

Figure 24 - Warning Label
CAUTION! To avoid corrosion and
overheating at terminal connections,
use copper conductors only. Failure
to do so may result in damage to
the equipment.
Do not allow conduit to interfere
with other components, structural
members or equipment. Control
voltage (115V) wiring in conduit
must be separate from conduit
carrying low voltage (<30V) wiring.
CAUTION! To prevent control
malfunctions, do not run low
voltage wiring (<30V) in conduit
with conductors carrying more than
30 volts.
RTAD-SVX01F-E4 43
