S8V2-SVX001-1A-EN
55

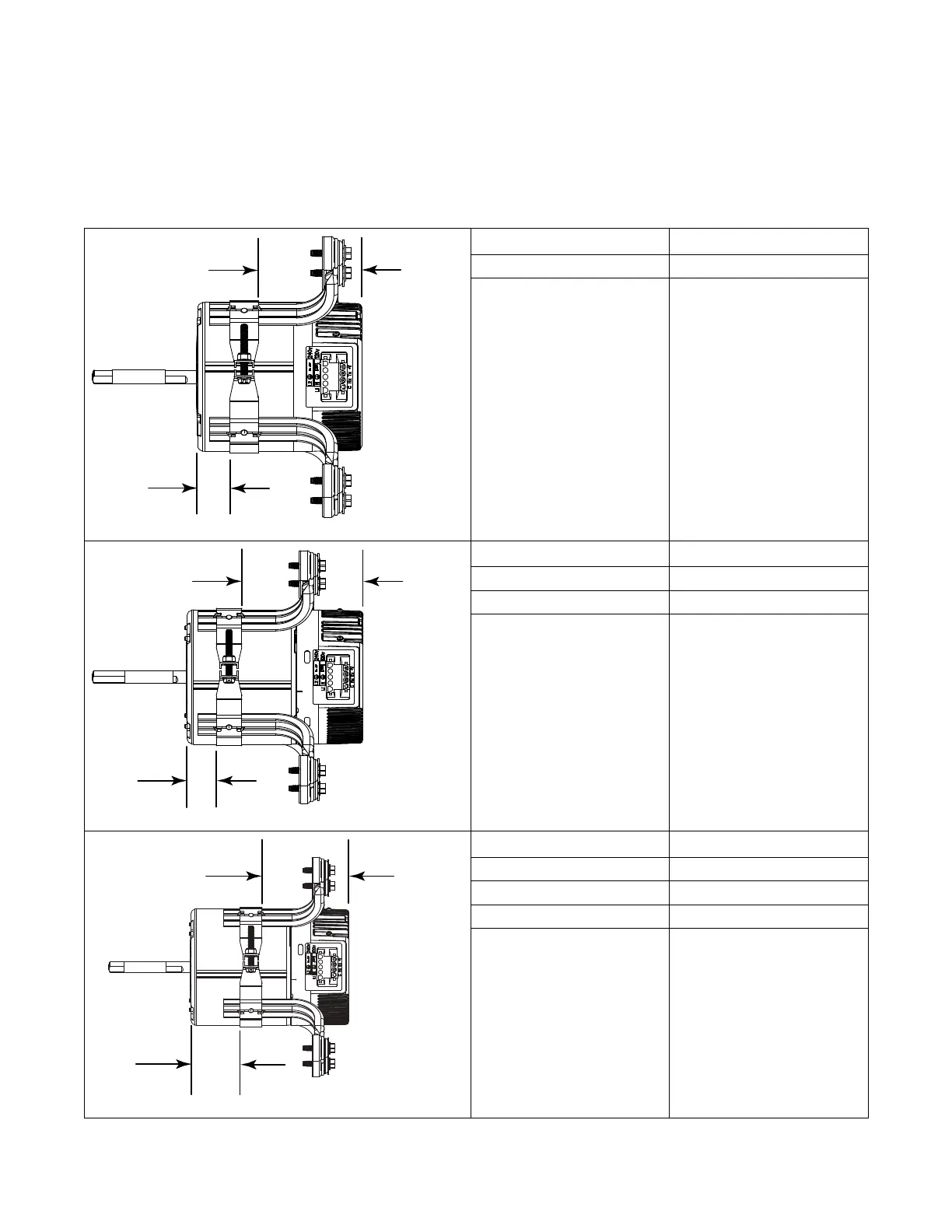

Belly Band Location
Distance from belly band to the front face of motor for
minimum vibration
1.25
A
Blower housing and wheel removed from view for clarity.
Furnace Model Dimension “A” (inches)
A040 3.87
1.25
A
Blower housing and wheel removed from view for clarity.
Furnace Model Dimension “A” (inches)
B060 5.04
B080 5.04
2.375
A
Blower housing and wheel removed from view for clarity.
Furnace Model Dimension “A” (inches)
C080 4.17
C100 4.17
D120 4.17
