10 SRUB-IOM001-EN
SRUB 080 522 (1150)
SRUB 110 638 (1407)
SRUB 130 678 (1495)
SRUB 160 814 (1795)
SRUB 190 968 (2134)
SRUB 220 1062 (2341)
SRUB 250 1070 (2359)
Unit InstallationUnit Installation

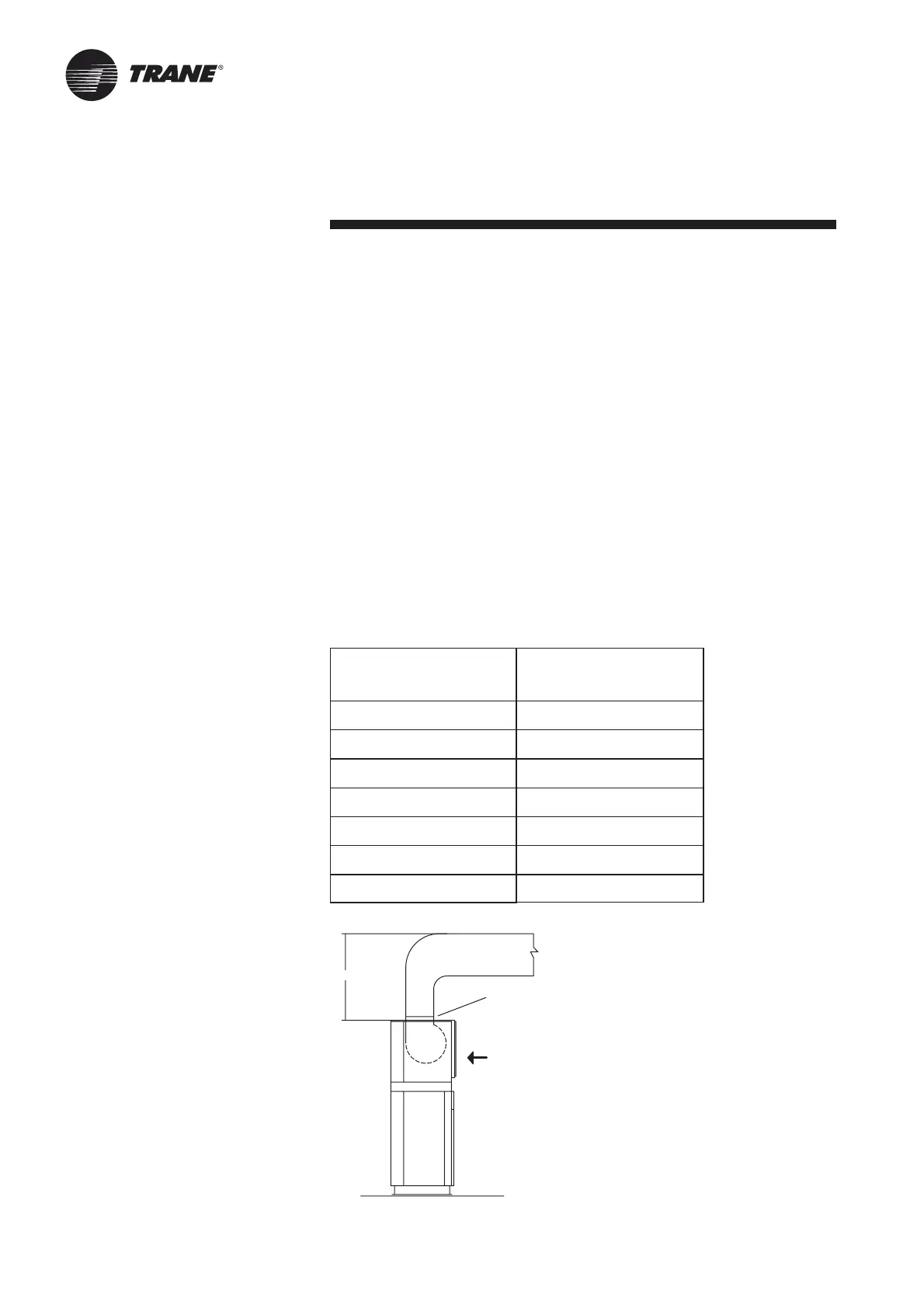

Figure 2 : SRUB Supply and Return Air Duct Connections
Table 2: Total Unit Weight
Model
Weight
kg (lb)
Installation Considerations
1. The floor or foundation for the unit must be level, solid and of sufficient strength to
support the unit the floor before positioning the air conditioner.
2. Allow minimum recommended clearances for maintenance and routine service.
Refer to “Service Data”. See in figure 1
3. Available power supply must agree with electrical data on component nameplate.
4. If external accessories are installed on the unit, additional clearance must be
provided.
5. All duct word should be properly insulated to prevent condensation and heat loss.
6. If adding external accessories to the unit, additional clearances must be
considered for the overall space needed.
7. For installation of accessories available for this unit follow the instructions packed
with each accessory.
Supply Air
3 Fan Diameters
3-Inch Flexible Duct
Return Air
