Installation and User Guide
8
Part No.
37-7760003
09-2018 18-HD48D1-1A-EN
G
R
B
W1
O/B
L
Y2
Y
G
Rc
Rh
C
+
S
-
HM
W2
W/E
6
DHM
Optional
remote
indoor or
outdoor
wired
sensor
FOOTNO
TES:
1) A/TC
ONT302 {does not include humidier(HM) and dehumidier(DHM) terminals}
AC/C
ooling with GAF2-S
Thermostat
Thermostat
Indoor
* Caution: Do not run Outdoor/Remote sensor wires
in the same bundle with HV
AC wires. Also
, keep
away from high v
oltage wiring to avoid interference.
Y
B
Outdoor
7
9
Table of Contents
Table of Contents
2
Safety
2
Product Specifications
3
General Information
3
Overview
3
Contents
3
Accessories
3
Installation
4
Location
4
Mounting
4
Battery Location
4
Power Stealing Switch
4
Heat/Cool Applications
5
Stage
5
System: Heat / Cool Systems
5

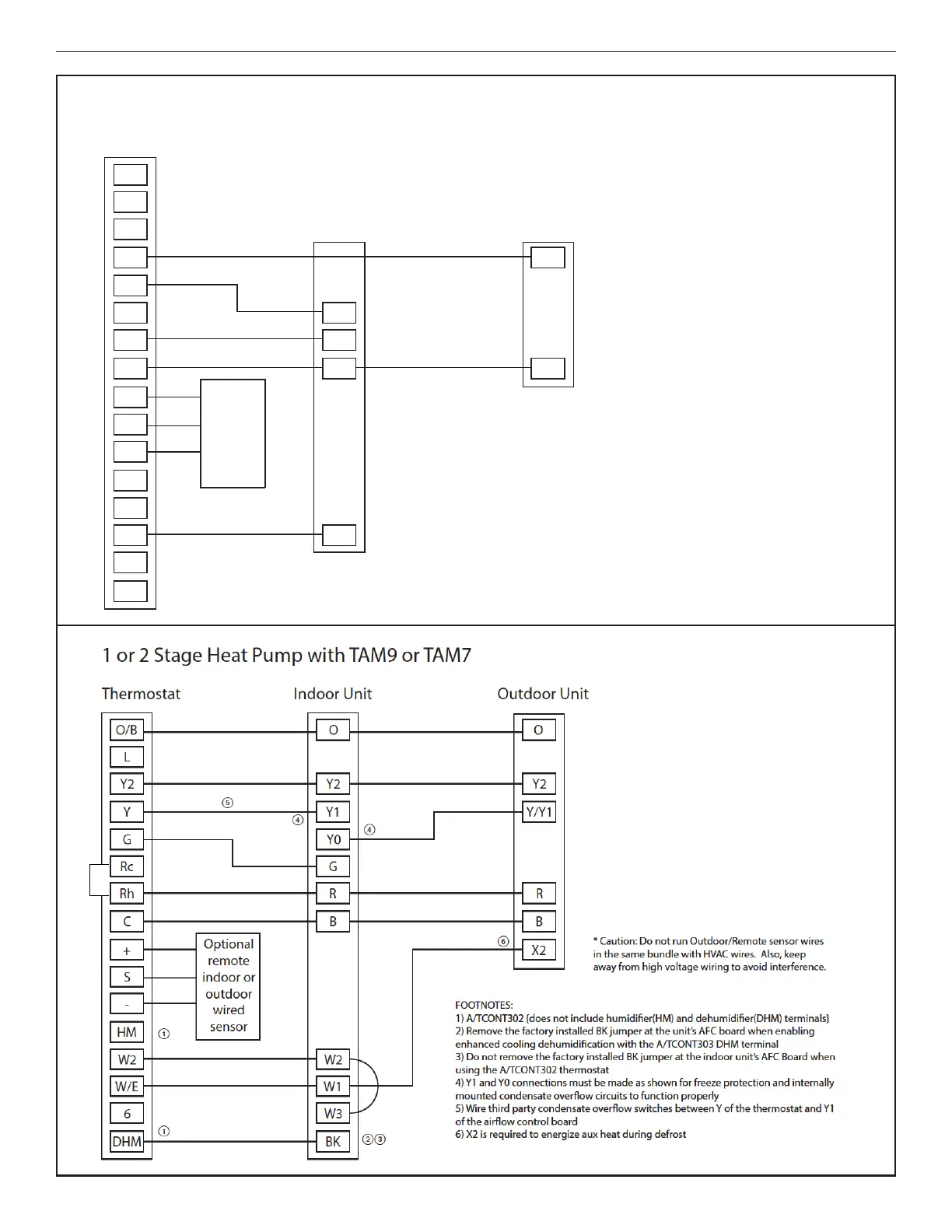

Wiring Diagrams
6
Or 2 Stage AC with TAM9 or TAM7
6
Stage AC with TEM3, TEM4, GAT2, GAM2
6
Or 2 Stage AC with TEM6
7
Or 2 Stage AC with GAM5B
7
Ac/Cooling with GAF2-S
8
Or 2 Stage Heat Pump with TAM9 or TAM7
8
Stage Heat Pump with GAM5B
9
Or 2 Stage Heat Pump with Variable Speed Furnace
9
Or 2 Stage Heat Pump with S9V2 Furnace
10
Or 2 Stage Heat Pump with TAM4, GAM5A, GAF2-36M
10
Or 2 Stage Heat / Cool Pkg Unit with VSB
11
HP Pkg Unit with Non-Variable SB
11
Stage Heat Pump with GAF2-S
12
Package Heat / Cool Unit
12
Thermostat Quick Reference
13
Installer Configuration Menu
14
User Guide
19
Fan Operation
19
Heating
19
Humidifier Option
19
Emergency Mode (Heat)
19
Cooling
19
Cooling Dehumidification
19
Fan Settings
19
System Setting
20
Manual Operation (Non-Programmable Mode)
20
Manual Operation (Programmable Mode)
20
8.11 Program Override
20
Programming
20
Setting Time and Day
20
Automatic Daylight Saving Calculation
20
Programming Tip
20
5
Based on 1 rating
Ask a question
