Dimensions

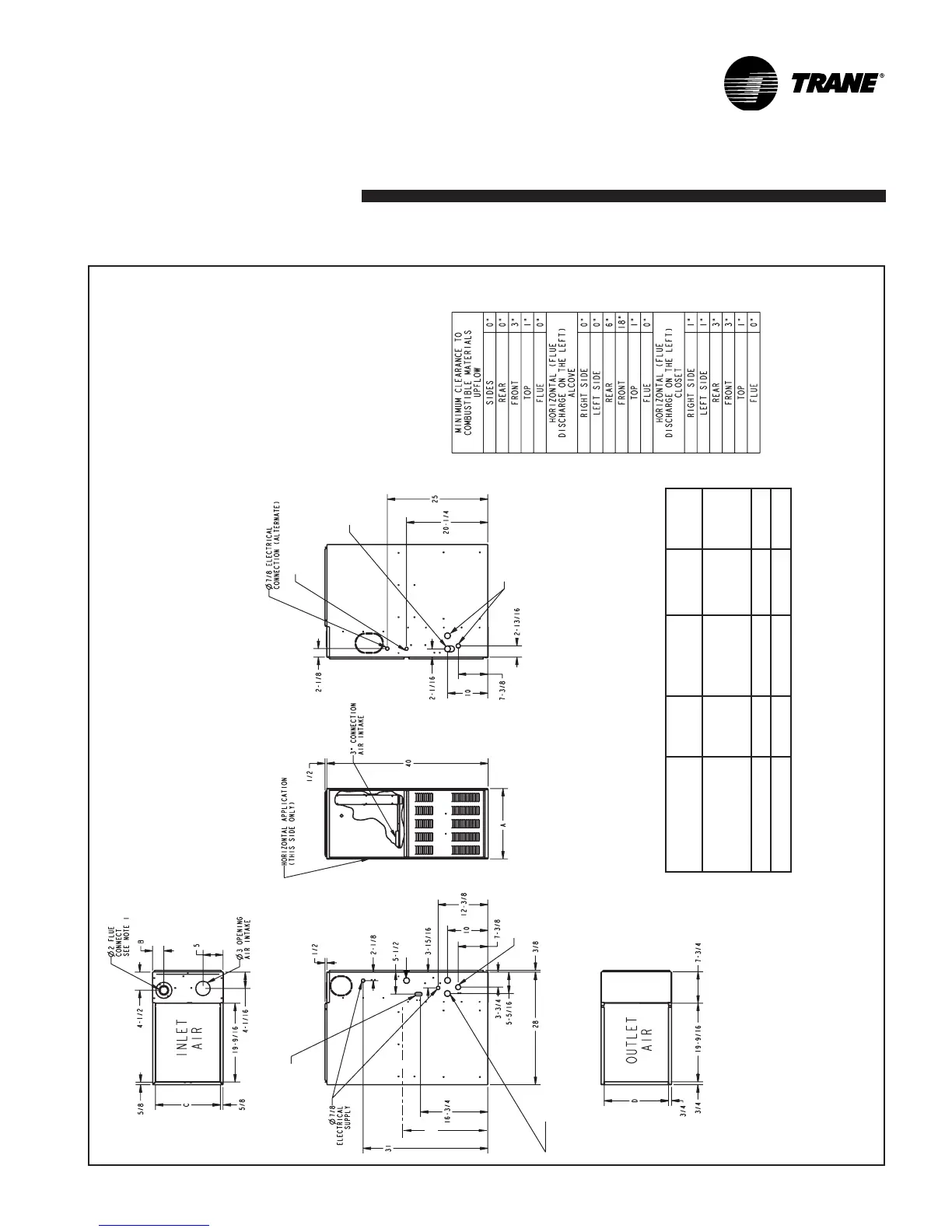

TDC1 OUTLINE DRAWING
(ALL DIMENSIONS ARE IN INCHES)
Model
(See Note 1 & 2)
DIM "A" DIM "B" DIM "C" DIM "D"
*DC1B040A9241 *DC1B060A9361 *DC1B080A9421
17-1/2" 2-1/4" 16-1/4" 16"
*DC1C100A9481 21" 2-1/2" 19-3/4" 19-1/2" *DC1D120A9601 24-1/2" 2-15/16" 23-1/4" 23"
* Prefix may be "A" or "T" Notes: 1. Diameter of Vent Pipe may be limited to 2-1/2" or 3" on some models at different altitudes. Refer to the Vent Length Table for proper application.
1-1/2 x 2-1/2 OVAL GAS CONNECTION
Ø 1-5/8” HOLE WITH PLUG
Ø 7/8” HOLE WITH PLUG
Ø 1-5/8” HOLE WITH PLUG CONDENSATE DRAIN
Ø 1-5/8” HOLE WITH PLUG GAS CONNECTION (ALTERNATE)
1-5/8” HOLE WITH PLUG
1-3/4 X 2-13/32 CUTOUT HORIZONTAL DRAIN
20-1/4
