UH-SVX01A-EN 23
Dimensional Data: P Model

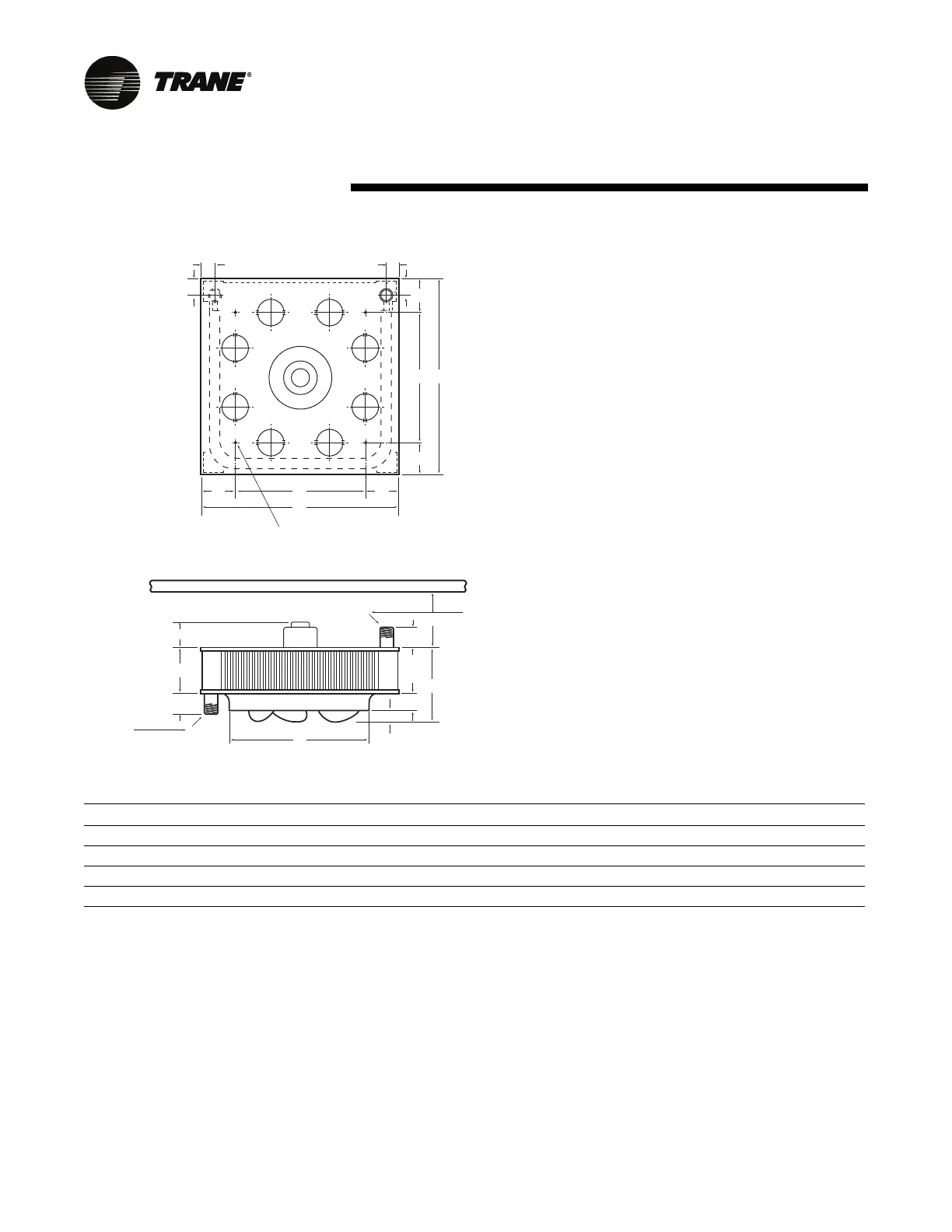

Figure 24. Models 42-80
Table 8. Roughing in Dimensional Data - Model Size 42-80
Unit Capacity (MBH) Fan Dia. A B C D E F G H K L (Min.) P (NPT) R S T U V
042 11 1/4 18 1/4 4 5/8 1 1/4 11 3/4 3/4 4 11 1 3/8 1 7/8 7 1 1/2 3 5/8 6 5/8 2 3/4 11 3 5/8
064 13 1/2 21 1/4 4 5/8 1 5/8 14 1 4 14 1 3/8 1 7/8 7 1 1/2 3 5/8 7 1/8 2 3/4 14 3 5/8
080 13 1/2 21 1/4 6 1/8 1 5/8 14 1 3 14 1 3/8 1 7/8 7 1 1/2 3 5/8 8 5/8 2 3/4 14 3 5/8
CEILING
S
B
F
P
P
C
E
L
D
T
T
STEAM
SUPPLY
OR
HOT WATER
RETURN
STEAM
RETURN
OR
HOT WATER
SUPPLY
V
R
G A
A
GR
K
H
K
H
R
(4) MOUNTING HOLES
THREAD TAPS
3
/8 - 16 FOR 42P-80P
Dimensional Data
