Dimensions

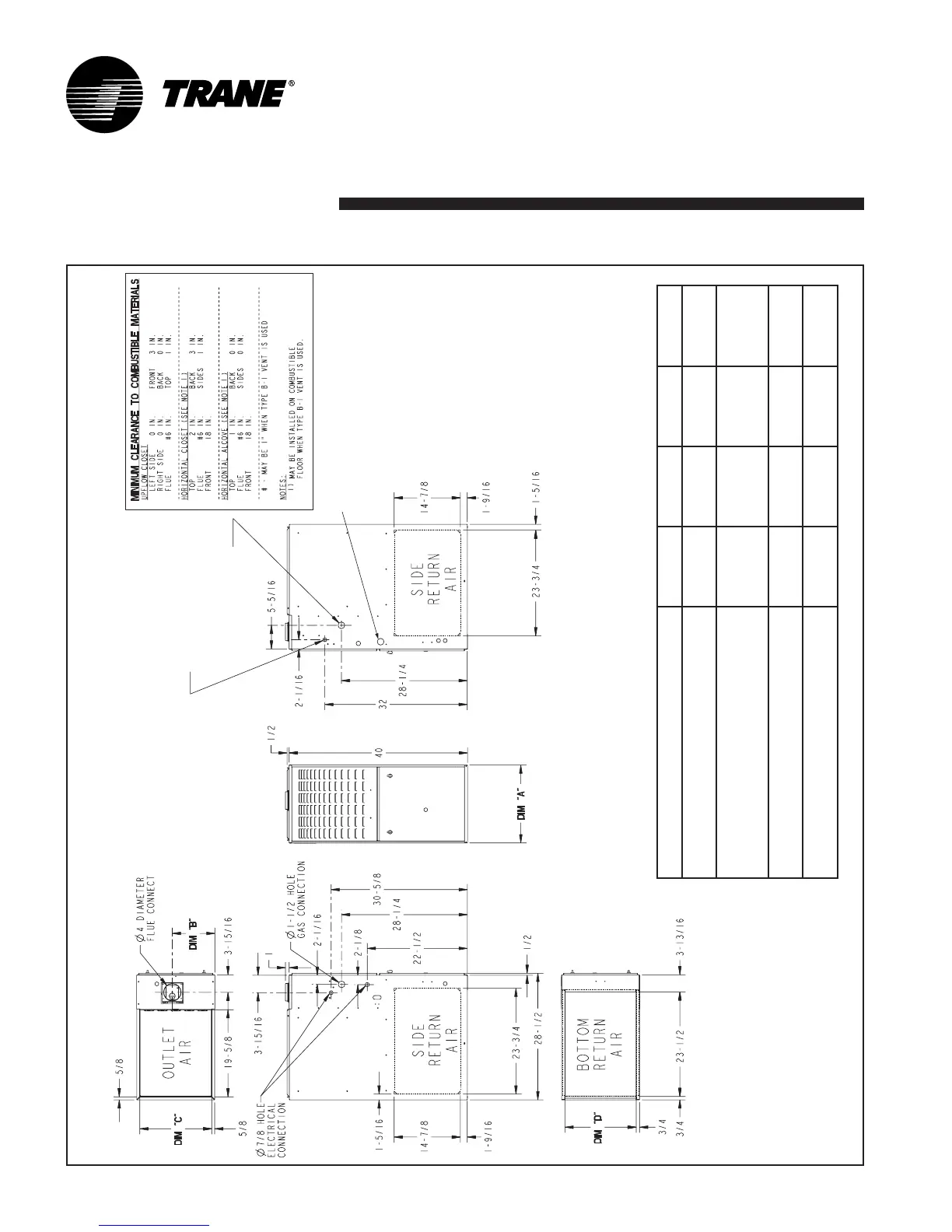

TUD1 OUTLINE DRAWING (ALL DIMENSIONS ARE IN INCHES)
Ø 1-5/8” HOLE WITH PLUG
Ø 1-5/8” HOLE WITH PLUG
Ø 7/8” HOLE WITH PLUG ELECTRICAL CONNECTION (ALTERNATE)
MODEL DIM "A" DIM "B" DIM "C" DIM "D"
*UD1A040A9241A, *UD1A040A9301A *UD1A060A9241A, *UD1A060A9361A
14-1/2" 9-5/8" 13-1/4" 13"
*UD1B060A9361A, *UD1B080A9241A *UD1B080A9361A, *UD1B080A9481A *UD1B100A9361A, *UD1B100A9451A
17-1/2" 9-5/8" 16-1/4" 16"
*UD1C080A9601A, *UD1C100A9481A *UD1C100A9601A, *UD1C120A9541A
21" 13-1/16" 19-3/4" 19-1/2"
*UD1D100A9721A, *UD1D120A9601A *UD1D140A9601A
24-1/2" 15-5/16" 23-1/4" 23"

Trane XR 80 TUD1B080A9241A Specifications

General

Brand	Trane
Model	XR 80 TUD1B080A9241A
Category	Furnace
Language	English
