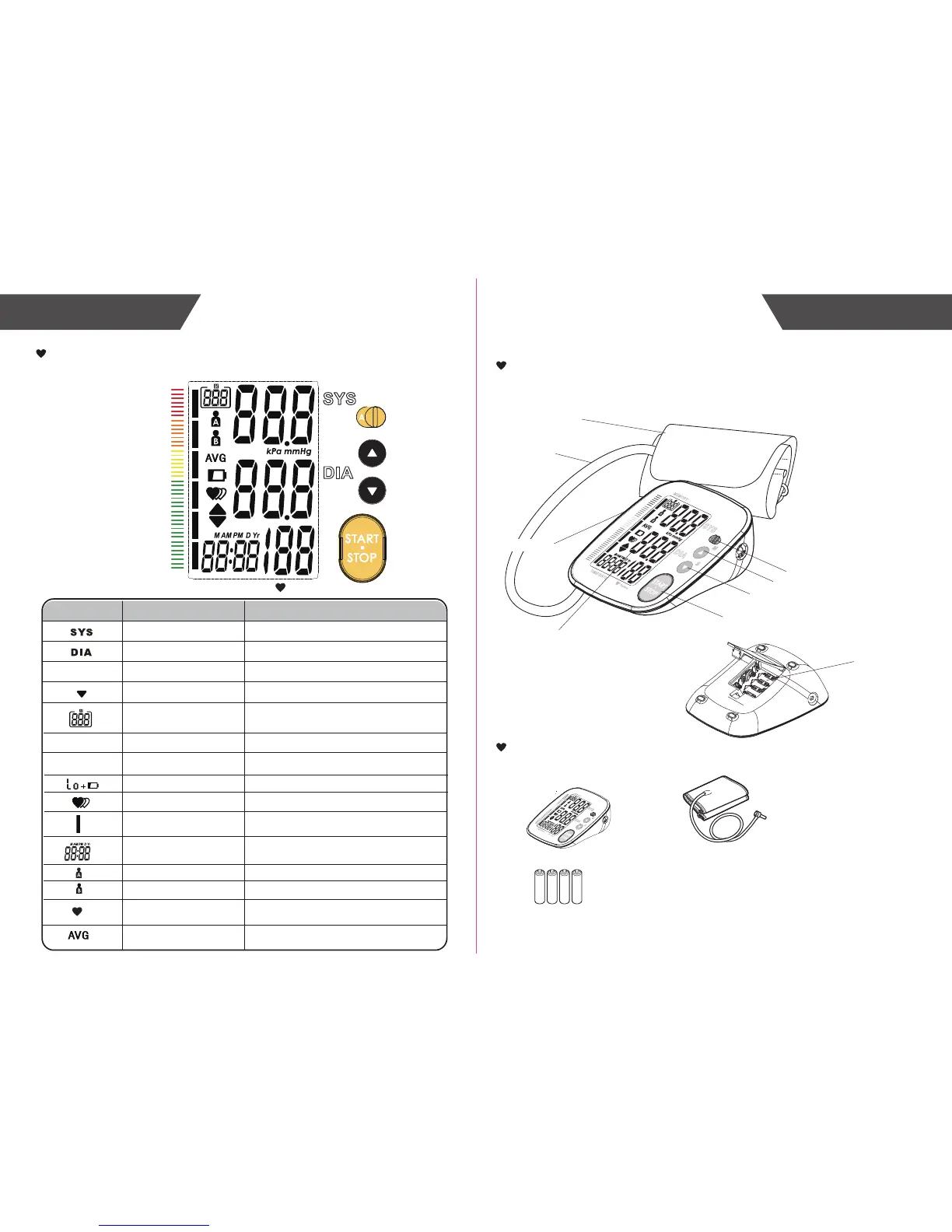

LCD display signal
SYMBOL DESCRIPTION
Systolic blood pressure High pressure result
Diastolic blood pressure Low pressure result
EXPLANATION
Pulse per minute Beats per minute, BPM
Deflating CUFF air is exhausting of deflating
Memory
The displayed measurement values
is from the memory.
mmHg
kPa
Measurement Unit of the blood pressure
Measurement Unit of the blood pressure
Low battery
Batteries are low and need to be replaced
Irregular heartbeat
Arrhythmia
Grade The grade of the blood pressure
kPa
mmHg
Current Time
Year/Month/Day, Hour/Minute
Pul/min
MEMORY
TIME/DATE
Pul/min
User A
Start measurement for User A
User B
Start measurement for User B
Heartbeat detection during the
measurement
Heartbeat
INTRODUCTION
Monitor Components
List
1.Blood Pressure Monitor
(TMB-1490)
4.User manual
2.Cuff (Type BF applied part) (22~32cm or 22~42cm)
Component list of
pressure measuring system
1 Cuff
2 Air pipe
3 PCBA
4 Pump
5 Valve
3. 4×AAA batteries
BATTERY COMPARTMENT
CUFF
AIR HOSE
AIR CONNECTOR PLUG
LCD DISPLAY
MEM BUTTON
START•STOP BUTTON
SET BUTTON
INTRODUCTION
S
M
START
STOP
USER SWITCH
5. AC Adaptor
(UE08WCP-060100SPA)
The average value
The average value of the latest three
records
To Next Page
