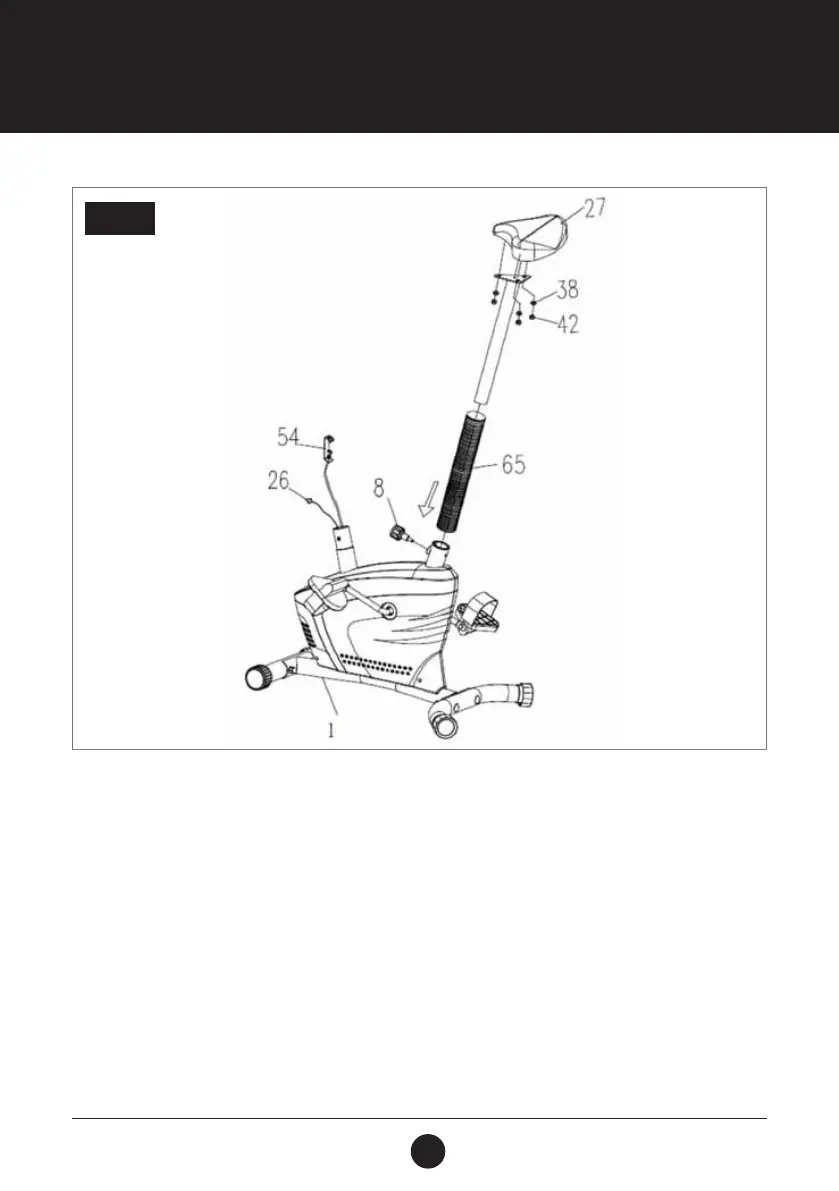

STEP 2: SEAT CUSHION AND SEAT POST ASSEMBLY
Remove 3 Locknuts (M8) (42) and 3 Washers (Ø8) (38) from underneath the Seat Cushion (DD-982AT) (27).
Attach the Seat Cushion (DD-982AT) (27) onto the triangle plate of the Seat Post (25) with 3 Locknuts (M8) (42) and
3 Washers (Ø8) (38) that were previously removed.
Insert the Seat Post (25) with the Plastic Sleeve (65) into the bushing on the tube of the Main Frame (1) and then attach the
Round Knob (8) onto the tube of the Main Frame (1) by turning it in a clockwise direction to lock the Seat Post (25) in the
suitable position.
Adjusting the seat post:
Turn the Round Knob (8) in a counterclockwise direction until it can be pulled out. Pull out the Round Knob (8) and then slide
the Seat Post (25) up or down to a suitable position. Lock the Seat Post (25) in place by releasing the Round Knob (8) and
sliding the Seat Post (25) up or down slightly until the Round Knob (8) “pops” down into the locked position. For added safety,
tighten the Round Knob (8) in a clockwise direction.
STEP 2
ASSEMBLY STEPS
To Next Page
