IMPORTANT: Read entire owner’s manual before you
attempt to assemble or operate your new pressure washer.
REMOVE PRESSURE
WASHER FROM
CARTON
• Remove the parts bag packed with pressure washer.
• Slice two corners at the end of carton from top to
bottom so the panel can be folded down flat, then
remove all packing material.
• Roll pressure washer out of carton.
Carton Contents
Items in the carton include:
• Main Unit
• Safety Goggles
• Handle
• Plastic Accessory Tray
• High Pressure Hose
• Spray Gun
• Nozzle Extension with Quick Connect Fitting
• Oil Bottle
• Parts Bag (which includes the following):
• Owner’s Manual
• Engine Manual
• Owner’s Registration Card
• Bag containing 5 multi–colored Quick Connect Spray
Tips
• Maintenance Kit
• Handle Fastening Hardware Kit (which includes):
• Carriage Bolt
• “L” Bolt
• Plastic Knobs (2)
• “J” Hook
• Chemical Hose Clip
• Self Tapping Screws (5)
PREPARING PRESSURE
WASHER FOR USE
If you have any problems with the assembly of your
pressure washer or if parts are missing or damaged, call the
pressure washer helpline at 1-888-611-6708.
To prepare your pressure washer for operation, you
will need to perform these tasks:
1. Fill out and send in registration card.
2. Attach accessory tray to handle, then attach handle to
main unit.
3. Add oil to engine crankcase.
4. Add fuel to fuel tank.
5. Connect high pressure hose to spray gun and pump.
6. Connect water supply to pump.
7. Attach nozzle extension to spray gun.
8. Select/attach quick connect spray tip to nozzle
extension.
Attach Handle and Accessory Tray
NOTE: All assembly operations given in this section will be
described from the perspective of assembling the pressure
washer from the rear.
1. Slide the plastic accessory tray onto the handle and
align the holes in the accessory tray with the holes on
the handle (Figure 1).

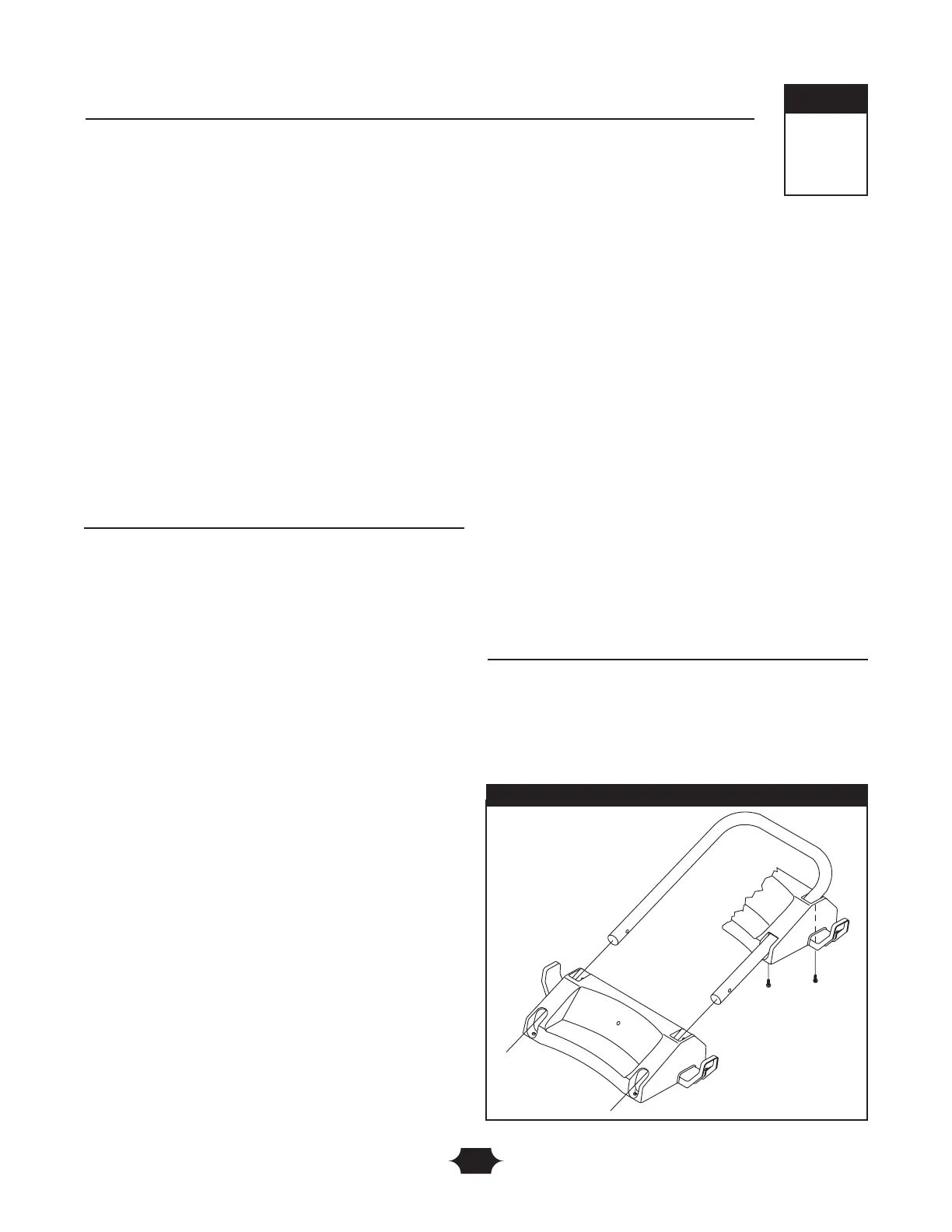

Figure 1 — Attach Accessory Tray
3
