Section 8: Exploded Views and Parts Lists

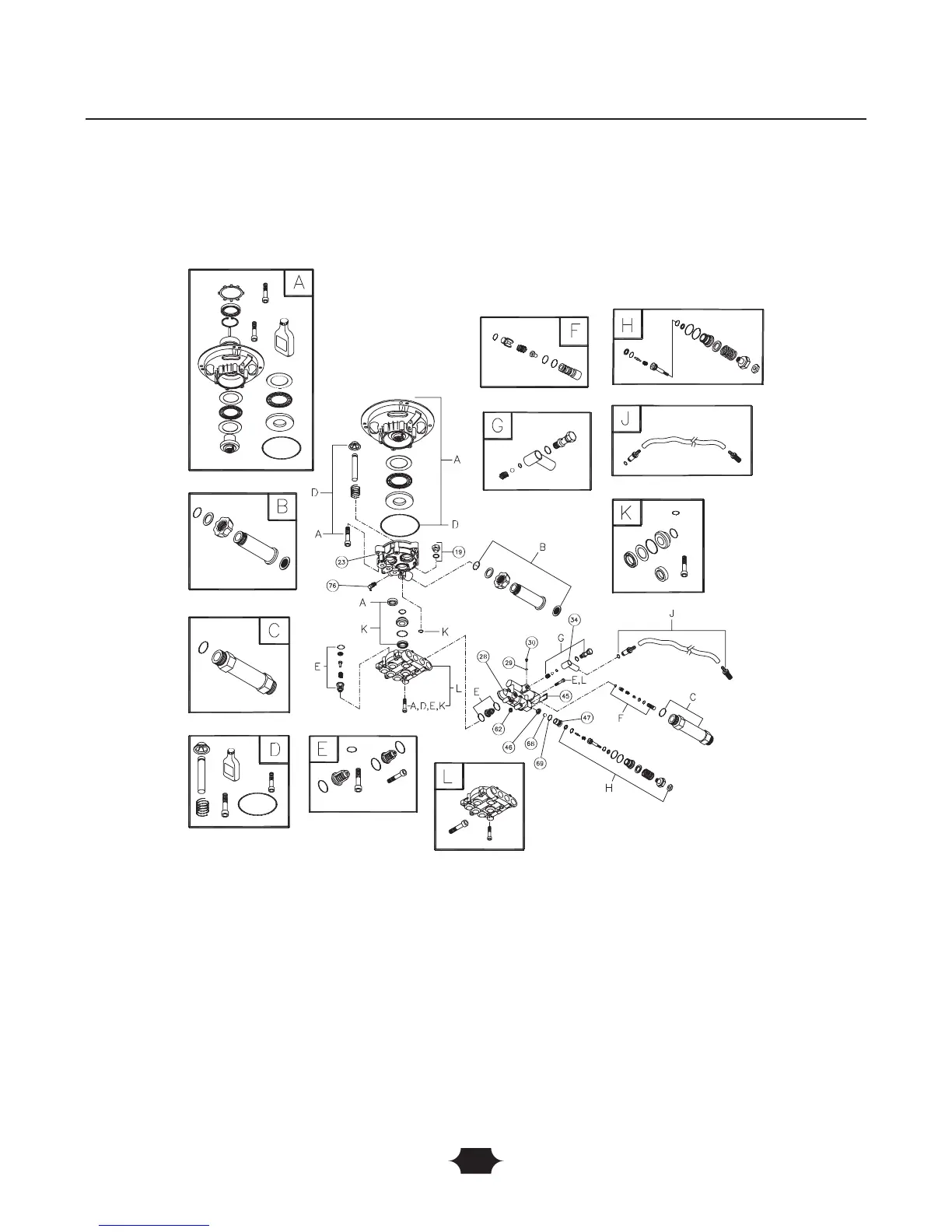

EXPLODED VIEW AND PARTS LIST — PUMP
Item Part # Description
19 190571GS CAP, Oil
23 193817GS HOUSING, Piston
28 190627GS MANIFOLD
29 190575GS O-RING
30 190576GS SCREW
34 190577GS CONNECTION, Chemical Inlet
45 190578GS PIN
46 190579GS VALVE, Seat Plate, Brass
47 190580GS VALVE, Seat, Stainless
62 190581GS CAP
68 190582GS BALL, SS
69 190584GS O-RING
76 21783GS THERMO RELIEF
77 190586GS OIL BOTTLE
Item Part # Description
A 193804GS KIT,WOBBLE PLATE BEARING
B 190632GS KIT,WATER INLET,ALUM
C 190634GS KIT, OUTLET,ALUM
D 193805GS KIT, PISTON
E 193806GS KIT,CHECK VALVES
F 190592GS KIT, INLET CHECK
G 190593GS KIT, CHEMICAL INJECTION
H 190594GS KIT, UNLOADER STEM
J 189971GS KIT, CHEMICAL HOSE
K 193807GS KIT, SEAL SET
L 193808GS KIT, HEAD BRASS
NOTE: Item letters A - L are service kits and
include all parts shown within the box.
