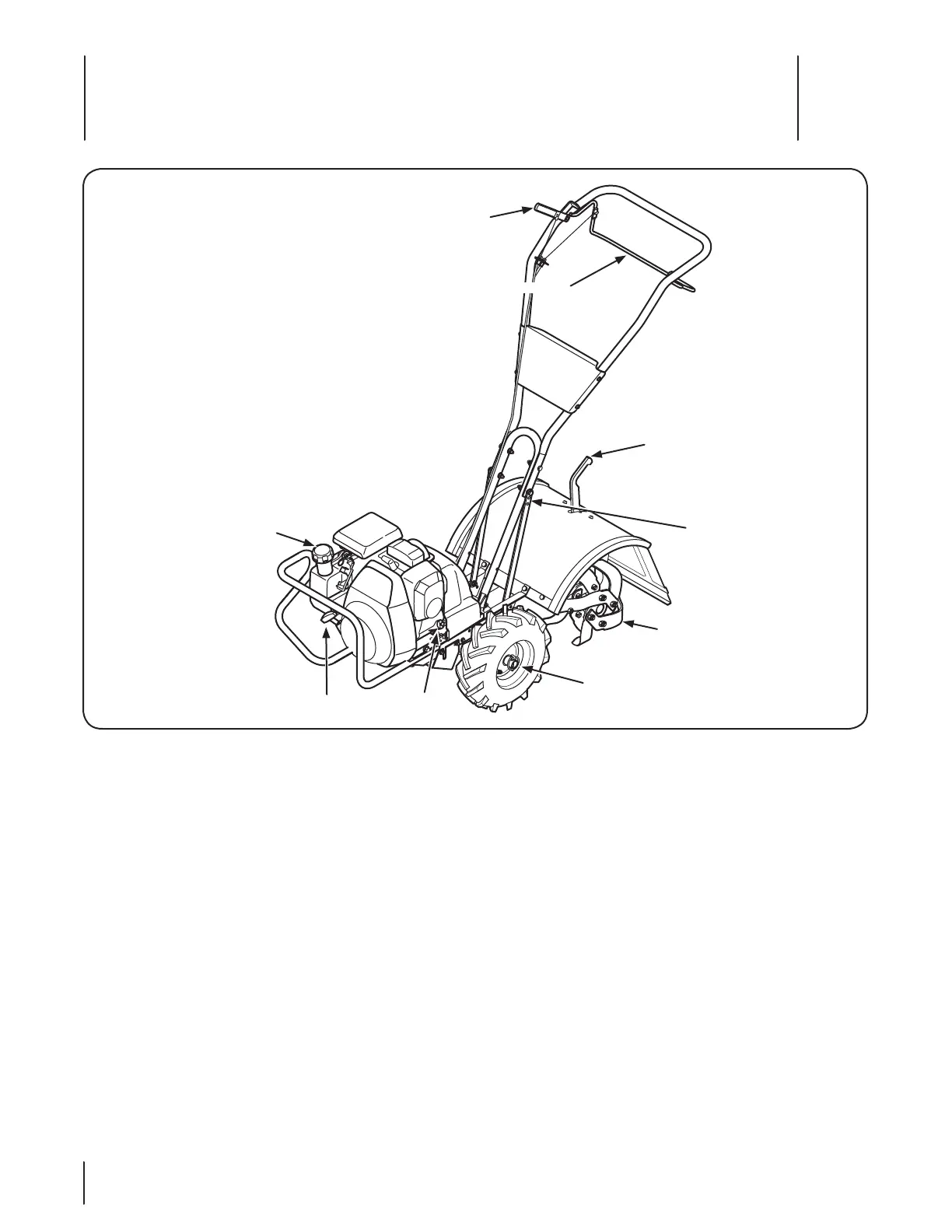

Figure 4-1
Engine Controls
For detailed information on all engine controls refer to the
separate Engine Operator’s Manual.
Wheel Drive Pins
Each wheel is equipped with a wheel drive click pin that secures
the wheel to the wheel shaft. The wheels can be positioned in
either a WHEEL DRIVE or a FREEWHEEL mode.
Forward Clutch Bail
The forward clutch bail controls the engagement of the forward
drive of the wheels and tines.
Reverse Clutch Lever
The Reverse Clutch Lever controls the engagement of reverse
drive to the wheels and tines.
Depth Regulator Lever
This lever controls the tilling depth of the tines. Pull the lever
back and slide it up or down to engage the notched height
settings.
Handlebar Height Adjustment
The handlebar height is adjustable to three different settings. In
general, adjust the handlebars so they are at waist level when the
tines are 3-4” in the ground.
Gas Cap
Unthread the gas cap to add gasoline to the fuel tank.
Oil Fill
Engine oil level can be checked and oil added through the oil fill.
Reverse Clutch Lever
Depth Regulator
Handlebar
Height
Adjustment
Forward Clutch Bail
Wheel Drive Pin
Tines
Oil Fill
Gasoline Fill
Recoil Starter
Controls and Features
4
