Features and Controls
Read this operator’s manual and safety rules before operating your generator.
Compare the illustrations with your generator, to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
A - 120 Volt AC, 20 Amp, Duplex Receptacles — May be
used to supply electrical power for the operation of
120 Volt AC, 20 Amp, single phase, 60 Hz electrical,
lighting, appliance, tool, and motor loads.
B - Air Cleaner — Protects engine by filtering dust and
debris out of intake air.
C - Choke Lever — Used when starting a cold engine.
D - Data Tag — Provides model, revision, and serial number
of generator. Please have these readily available when
calling for assistance.
E - Circuit Breakers (AC) — Push-to-reset circuit breakers
are provided to protect the generator against electrical
overload.
F - Engine Identification — Provides model, type and code
of engine. Please have these readily available if calling for
assistance.
G - Fuel Tank — Capacity of four (4) U.S. gallons (15 L).
H - Grounding Fastener — Consult your local agency having
jurisdiction for grounding requirements in your area.
J - Oil Drain Plug — Drain engine oil here.
K - Oil Fill Cap — Check and fill engine with oil here.
L - Recoil Starter — Used to start the engine.
M - Rocker Switch — Set this switch to “On” before using
recoil starter. Set switch to “Off” to stop engine.
N - Spark Arrester Muffler — Exhaust muffler lowers engine
noise and is equipped with a spark arrester screen.

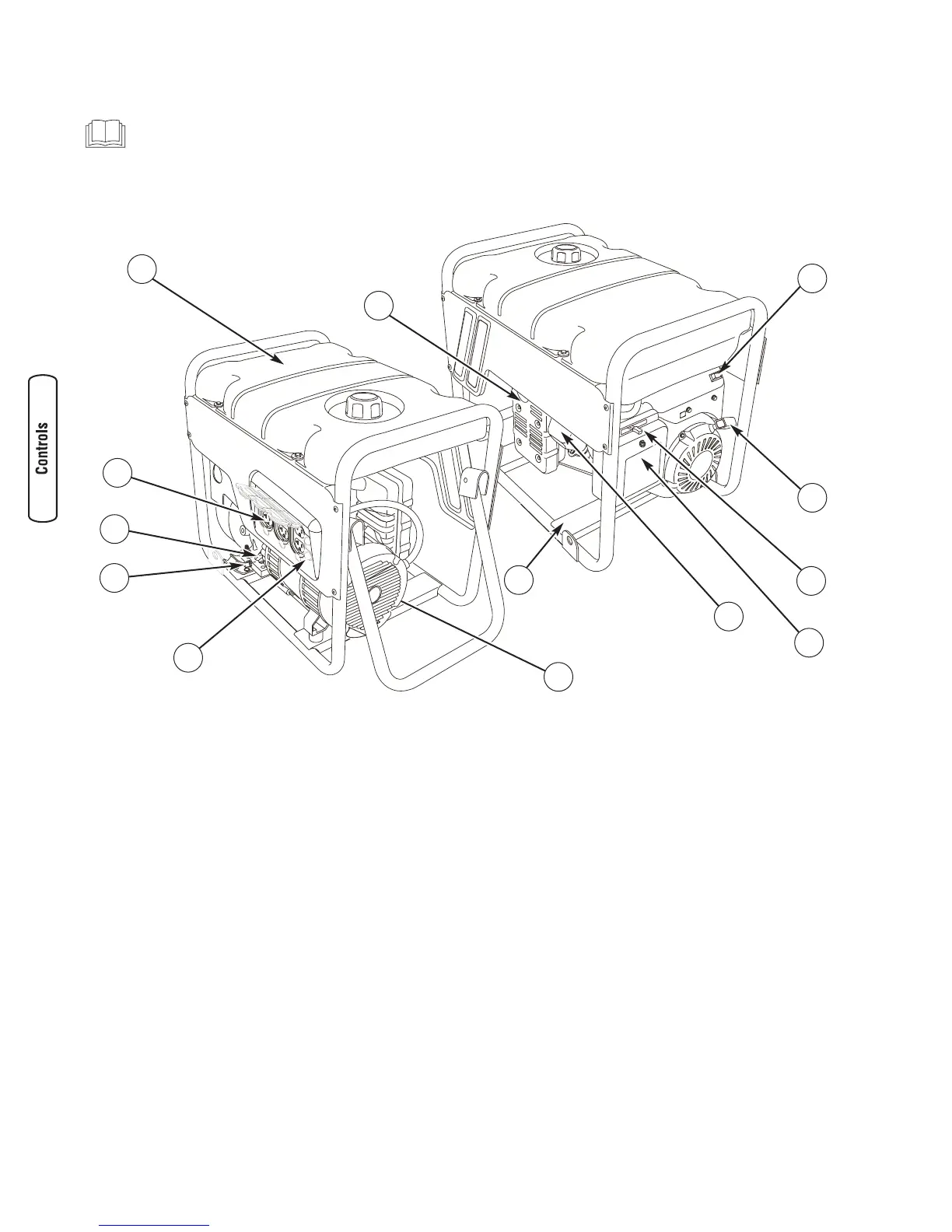

G
M
L
C
B
D
H
E
K
A
J
N
F
