Troy-Bilt CS4325 Series Operation Manual

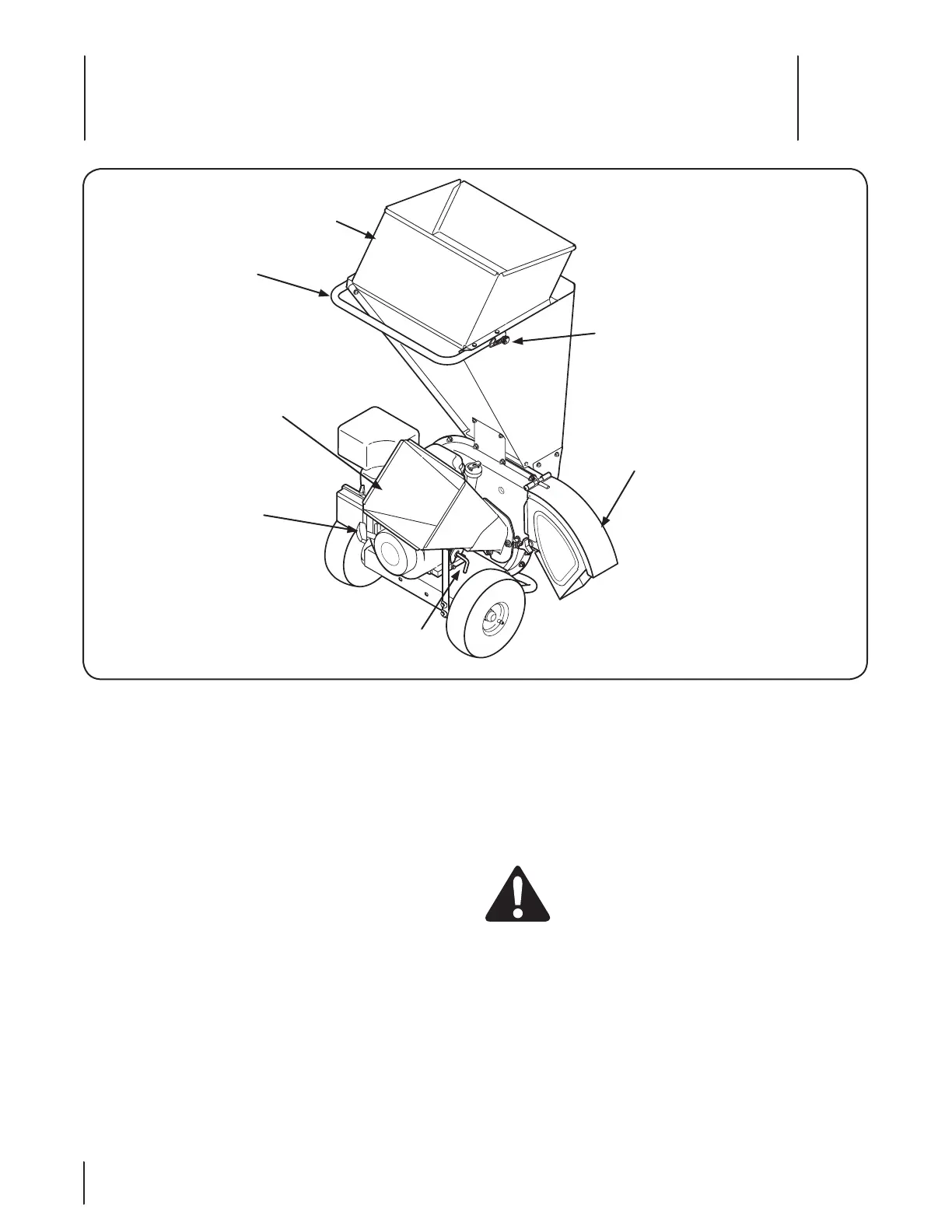

Controls and Features
4
8
Chute
Deflector
Spring
Latch
Hopper
Chipper
Chute
Recoil
Starter
Handle
Lock Rod
Model Series CS4325 Shown
Chipper Chute
Branches up to two inches (model series CS4265) or three inches
(model series CS4325) in diameter may be fed into the chipper
chute for chipping.
Hopper
Leaves, twigs, and branches up to 1/2-inch in diameter may be
placed into the hopper for shredding.
IMPORTANT: Never place branches with a diameter greater than
1/2-inch in the hopper. Doing so can result in serious damage to
your unit’s shredder blade, flails or impeller.
Handle
Use the handle when manually transporting the chipper
shredder.
Recoil Starter
The recoil starter is located on the engine. Pull the recoil starter
to start engine.
Engine Controls
See the separate Engine Operator’s Manual packed with your
unit for the location and function of the engine controls.
Spring Latch (Model Series CS4325 Only)
The spring latch is located on the top of the hopper. It is used to
release or lock the chipper chute in a raised position for storage
or for transporting.
WARNING: Never operate the chipper shredder
with the chipper chute in the raised position. Use
the spring latch to lower the chipper chute into the
operating position before starting the engine.
Lock Rod (Model Series CS4325 Only)
The lock rod is located on the chipper chute support. It is used
to release or lock the chipper chute in a lowered position for
operation.
Chute Deflector
Debris is discharged from the machine’s reduction chamber
through the chute deflector.
