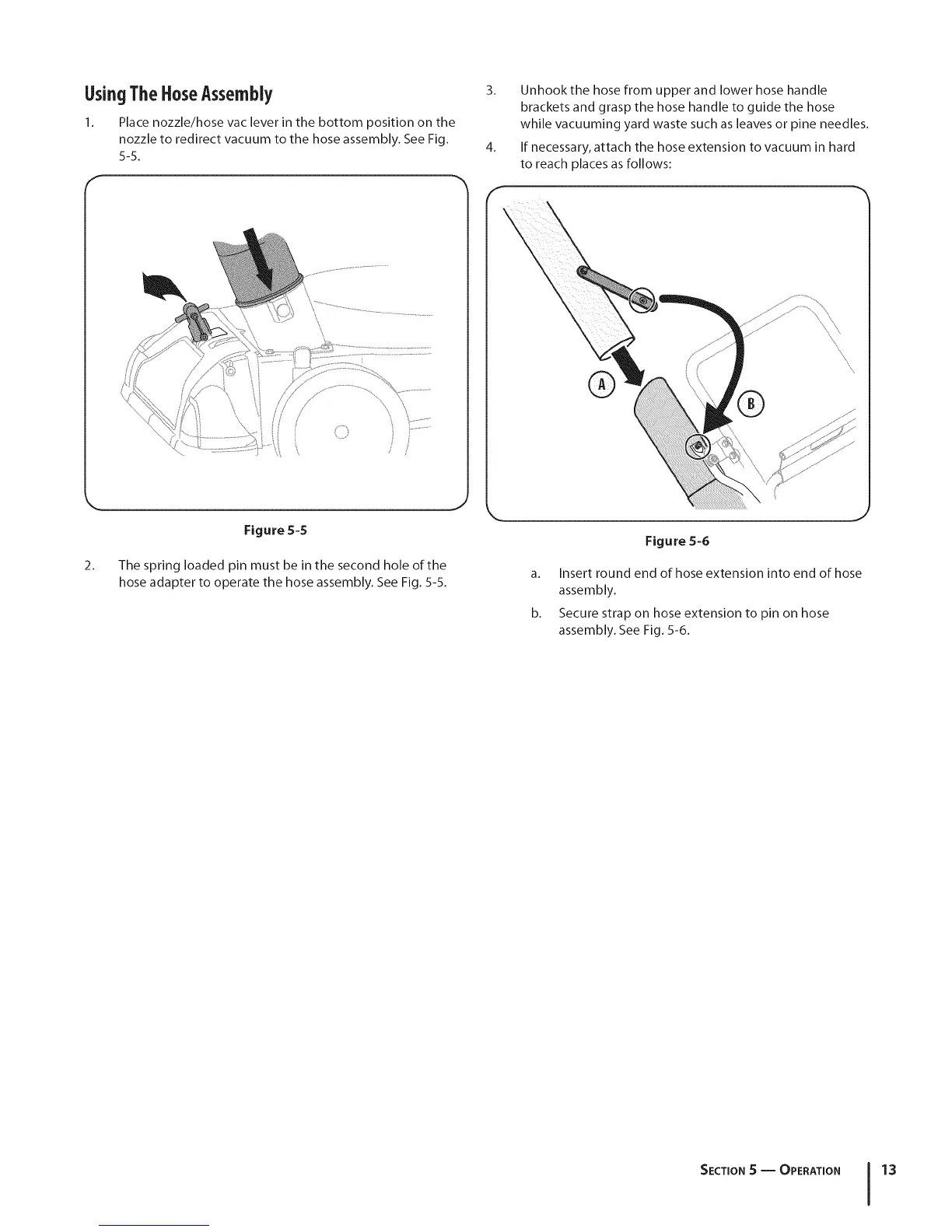

UsingTheHoseAssembly
1. Place nozzle/hose vac lever in the bottom position on the
nozzle to redirect vacuum to the hose assembly. See Fig.
5-5.
\
Figure 5-5
2. The spring loaded pin must be in the second hole of the
hose adapter to operate the hose assembly. See Fig. 5-5.
3. Unhook the hose from upper and lower hose handle
brackets and grasp the hose handle to guide the hose
while vacuuming yard waste such as leaves or pine needles.
4. If necessary, attach the hose extension to vacuum in hard
to reach places as follows:
®
\
a.
b.
Figure 5-6
Insert round end of hose extension into end of hose
assembly.
Secure strap on hose extension to pin on hose
assembly. See Fig. 5-6.
SECTION S -- OPERATION 13
