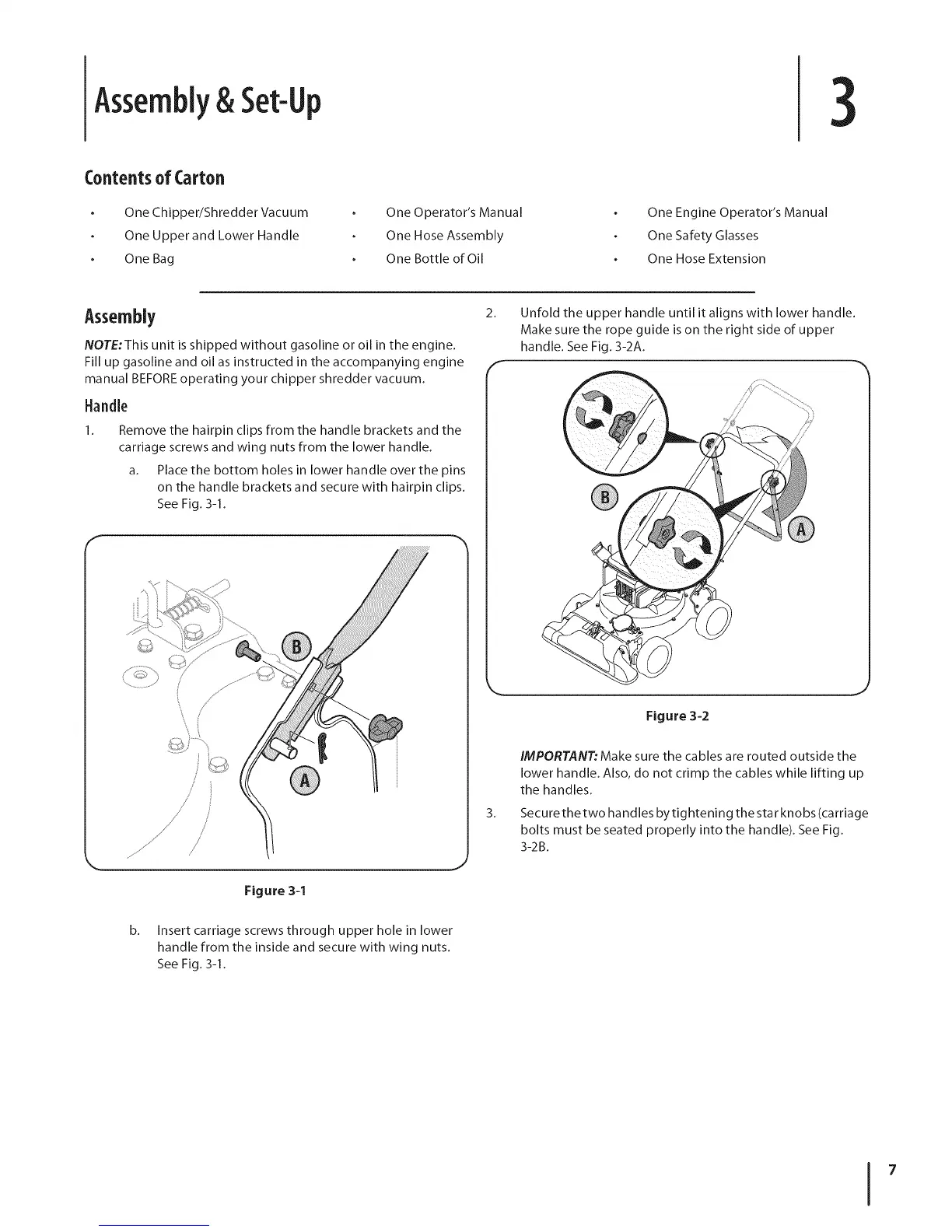

AssembJy& Set-Up
3
Contents of Carton
One Chipper/Shredder Vacuum
One Upper and Lower Handle
One Bag
One Operator's Manual
One Hose Assembly
One Bottle of Oil
One Engine Operator's Manual
One Safety Glasses
One Hose Extension
Assembly
NOTE:This unit is shipped without gasoline or oil in the engine.
Fill up gasoline and oil as instructed in the accompanying engine
manual BEFORE operating your chipper shredder vacuum.
Handle
1.
Remove the hairpin clips from the handle brackets and the
carriage screws and wing nuts from the lower handle.
a. Place the bottom holes in lower handle over the pins
on the handle brackets and secure with hairpin clips.
See Fig. 3-1.
Figure 3-1
2.
f
Unfold the upper handle until it aligns with lower handle.
Make sure the rope guide is on the right side of upper
handle. See Fig. 3-2A.
3.
Figure 3-2
IMPORTANT: Make sure the cables are routed outside the
lower handle. Also, do not crimp the cables while lifting up
the handles.
Secure the two handles by tightening the sta r knobs (carriage
bolts must be seated properly into the handle). See Fig.
3-2B.
b. Insert carriage screws through upper hole in lower
handle from the inside and secure with wing nuts.
See Fig. 3-1.
To Next Page
