Troy-Bilt LS 27 TB User Manual

8
4
Operating
Your Log
Splitter
WARNING

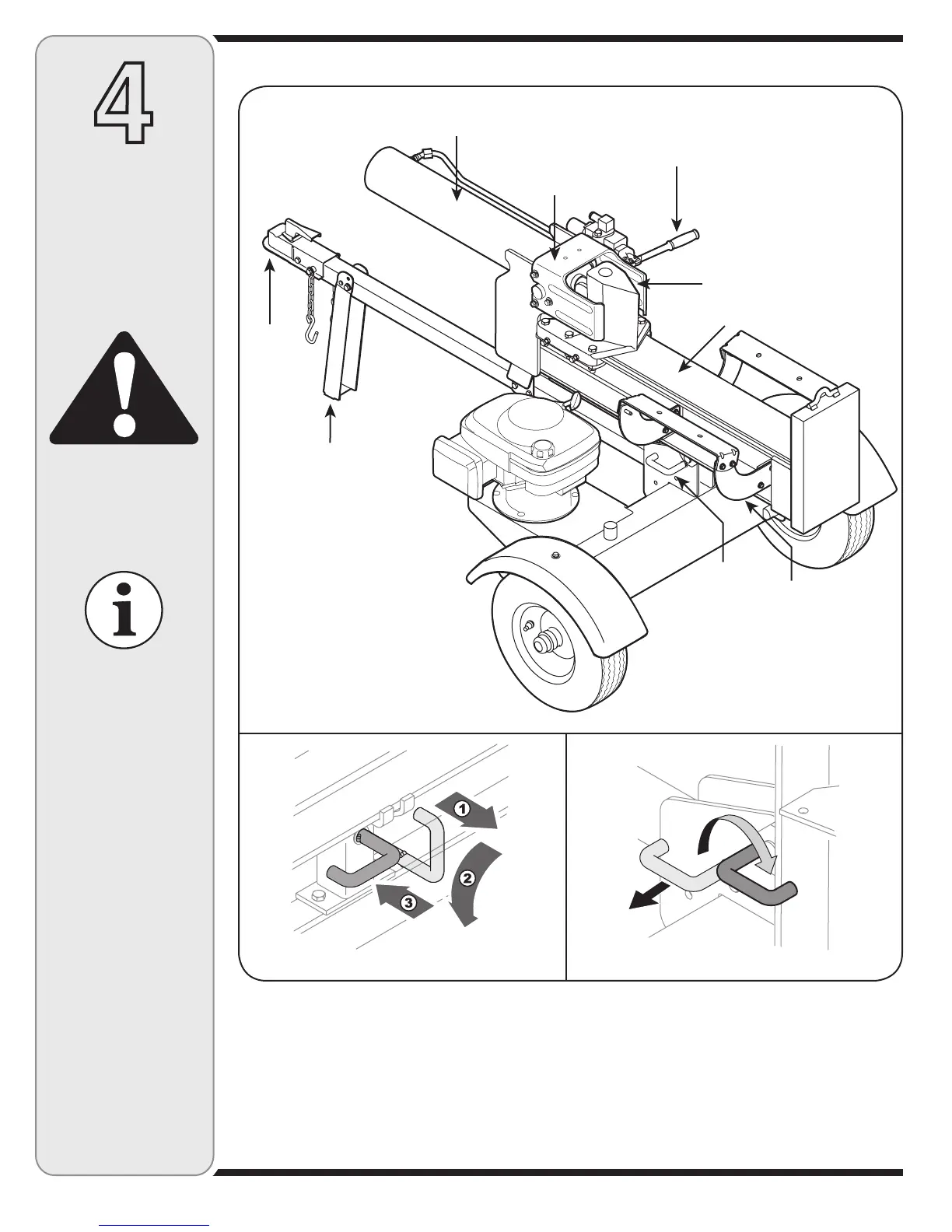

Figure 4-1
Know Your Log Splitter
Beam Locks
These two locks, as their name suggests, are used
to secure the beam in the horizontal or the vertical
position. The vertical beam lock is located next to the oil
filter. The horizontal beam lock is located on the beam
support latch bracket. See Figure 4-1.
Engine Controls
See the accompanying engine manual for the location
and function of the controls on the engine.
IMPORTANT
Your log splitter may
be shipped with motor
oil in the engine. You
MUST check the oil
level before operat-
ing. Be careful not to
overfill.
Horizontal Beam Lock
Vertical Beam Lock
Control Handle
Wedge
Cylinder
Tongue
Log
Dislodger
Jack Stand
Beam Assembly
Log
Cradle
Vertical
Beam
Lock
