Troy-Bilt PONY User Manual

Handlebar Height
Adjustment Screw
Engine Throttle
Control Lever
Depth
Regulator
Lever
Forward Clutch
Control Lever
Wheel Gear Lever
Reverse Clutch Control
Forward Clutch
Control Lever
Recoil
Starter
Handle

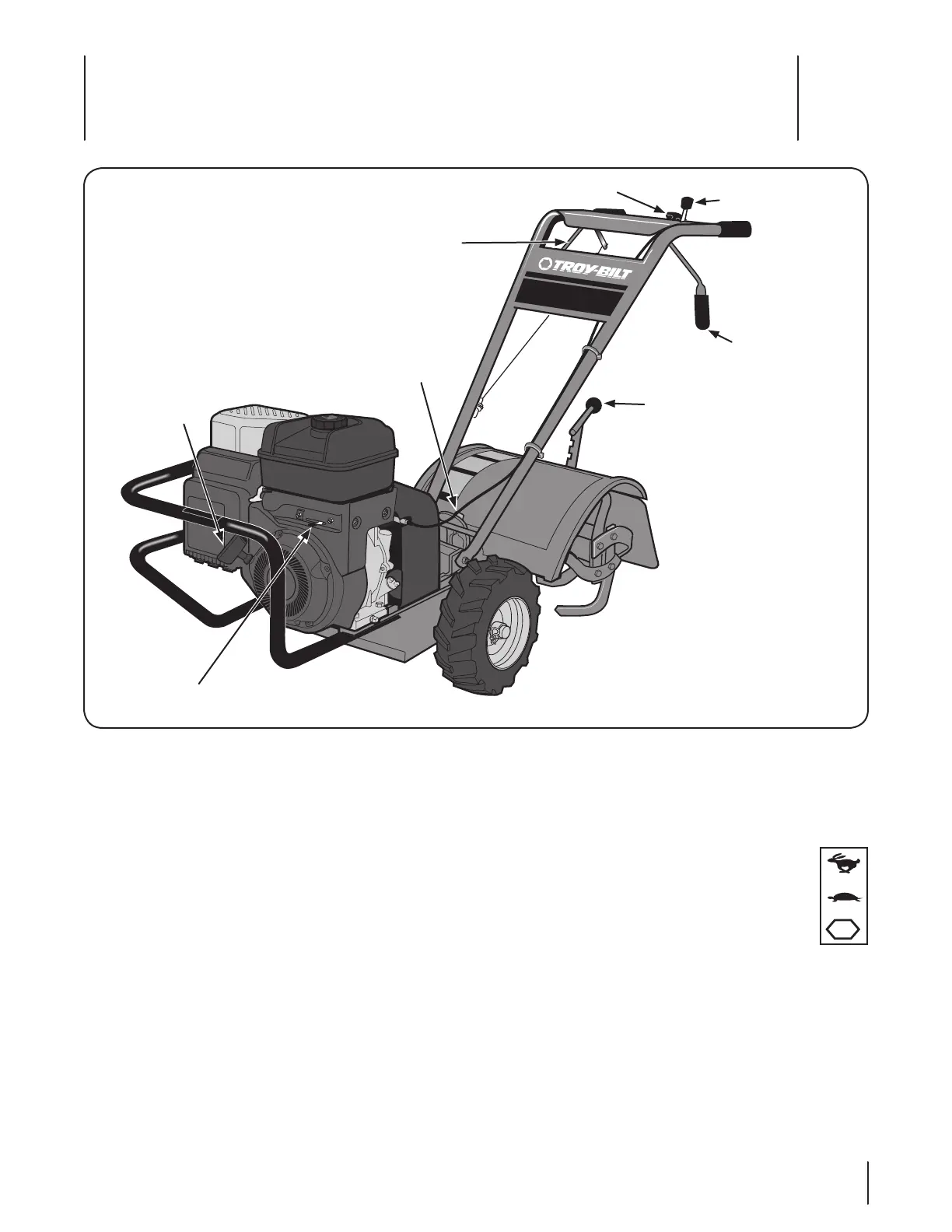

Tillers controls and features are described below and illustrated
in Fig. 4-1.
NOTE: For detailed information on all engine controls, refer to
the separate Engine Operator’s Manual.
Forward Clutch Control
The two interconnected levers control the engagement of
forward drive to the wheels and tines.
Wheel Gear Lever
This lever has two positions: ENGAGE and DISENGAGE.
Reverse Clutch Control
The Reverse Clutch Control controls the engagement of reverse
drive to the wheels and tines.
Gas Cap
Unthread the gas cap to add gasoline to the fuel tank.
Depth Regulator
The Depth Regulator lever controls the tilling depth of the tines.
Pull the lever straight back and slide it up or down to engage the
notched height settings.
Engine Throttle Control
The Engine Throttle Control Lever is used to regulate
the engine speed. On the recoil start model only, it
is also used to stop the engine (on the electric start
model, the electric start keyswitch is used to stop the
engine).
Handlebar Height Adjustment Screw
Handlebar Height is adjustable to four different settings. When
setting the height keep in my mind that the handlebars will be
lower when the tines are engaged in the soil.
Recoil Starter
The recoil starter is used to pull start the engine.
STOP
Figure 4-1
Controls and Features
4
11
